Removal Of Steering-Column Lock Module

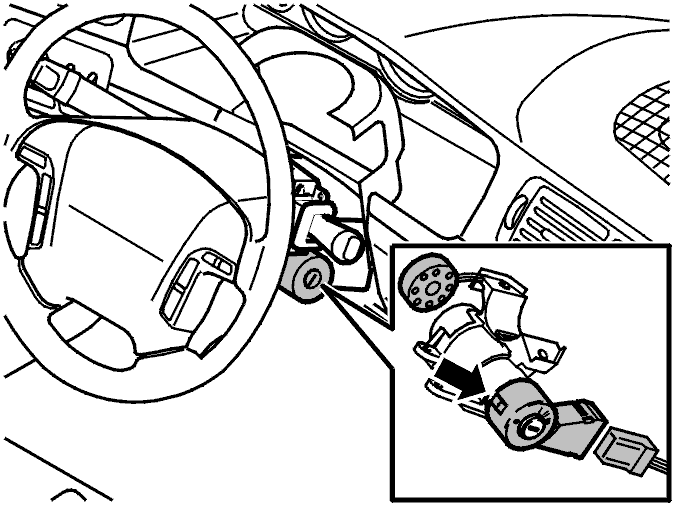

Fig 1: Identifying Snap Fastener & Steering Wheel Lock Unit
Courtesy of VOLVO CARS OF NORTH AMERICA.
Disconnect connectors.
Press in the snap-in attachment and remove the steering-column lock module.
Courtesy of VOLVO CARS OF NORTH AMERICA.
