Impulse Sensor, Diesel Connector End View (7/25)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Impulse Sensor, Diesel Connector End View (7/25)

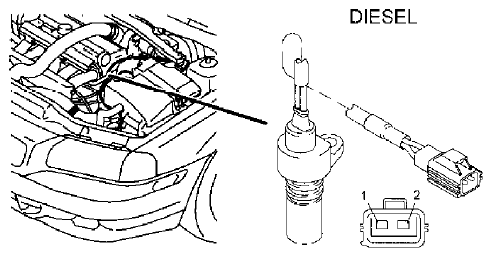

Fig 1: Impulse Sensor, Diesel Connector End View (7/25)
Courtesy of VOLVO CARS CORPORATION
