Replacing the sensor

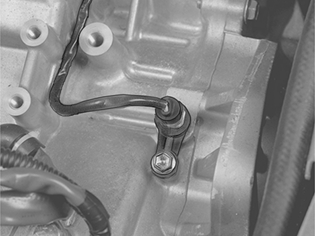

Fig 1: Identifying Transmission Input Speed Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Clean thoroughly around the sensor.

Remove the sensor

Install the new sensor

Apply a little Vaseline to the sensor O-ring. Tighten to 5.5 Nm  .
