High Level Stop Lamp

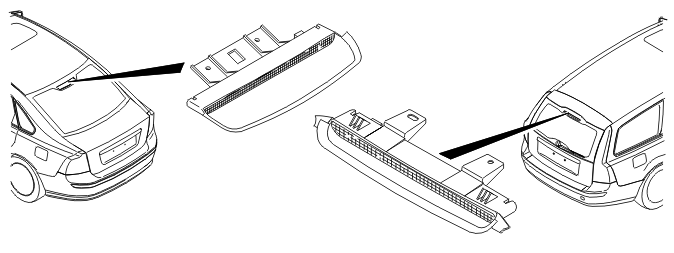

Fig 1: Identifying High Level Stop Lamp

Courtesy of VOLVO CARS CORPORATION

There is a high level stop lamp at the top of the rear windshield. This lamp lights during braking together with the standard stop lamps. It is activated when the switch on the brake pedal is closed.

The high level stop lamp is powered directly from the central electronic module (CEM). The lamp consists of a number of LEDs.

There are diagnostics for the high level stop lamp.
