LEDS In Doors For Lock Indication

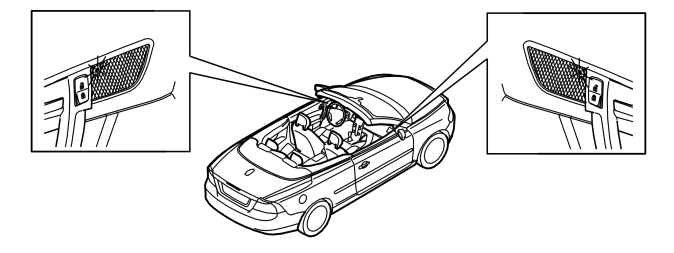

Fig 1: Identifying LEDs In Doors For Lock Indication

Courtesy of VOLVO CARS CORPORATION

Usually there are locking buttons in the doors, but the C70 does not have these. The vehicle is equipped with LEDs instead that indicate whether the vehicle is locked or not. The LEDs light for approximately 5 minutes after locking the vehicle. The LEDs are on each door and are directly connected to the Central electronic module (CEM).

There are diagnostics for the LEDs.
