Oxygen Sensor: Service and Repair

Oxygen sensor (Catalyst monitor sensor)

Operation number: 25412-2

Note! Some variation in the illustrations may occur, but the essential information is always correct.

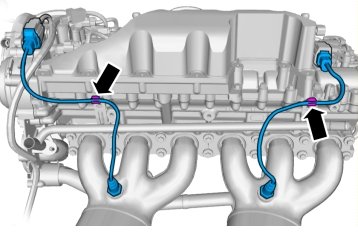

Removal

Note! Removal steps in this procedure may contain installation details.

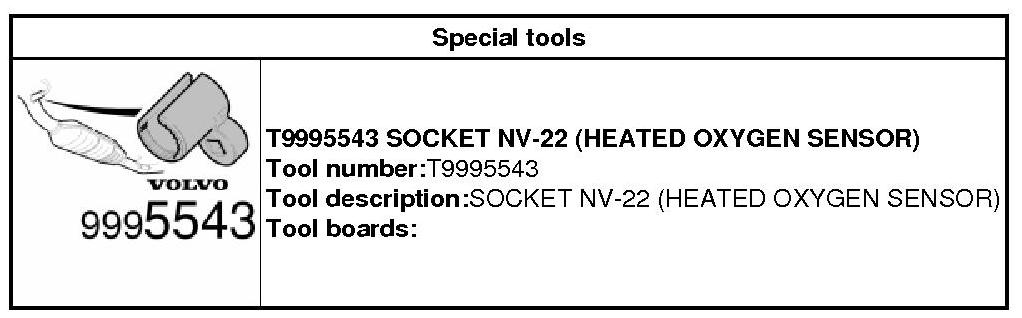

999 5543 SOCKET NV-22 HO2S 999 5543 Socket NV-22 HO2S

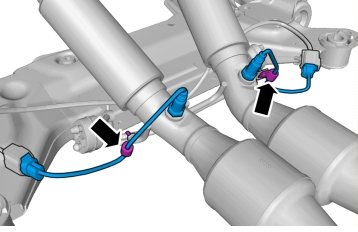

Torque: Catalyst monitor sensor, 45 Nm




999 5543 SOCKET NV-22 HO2S 999 5543 Socket NV-22 HO2S
Torque: Catalyst monitor sensor, 45 Nm

Installation

To install, reverse the removal procedure
