Component Specifications, Engine Control Module (ECM)

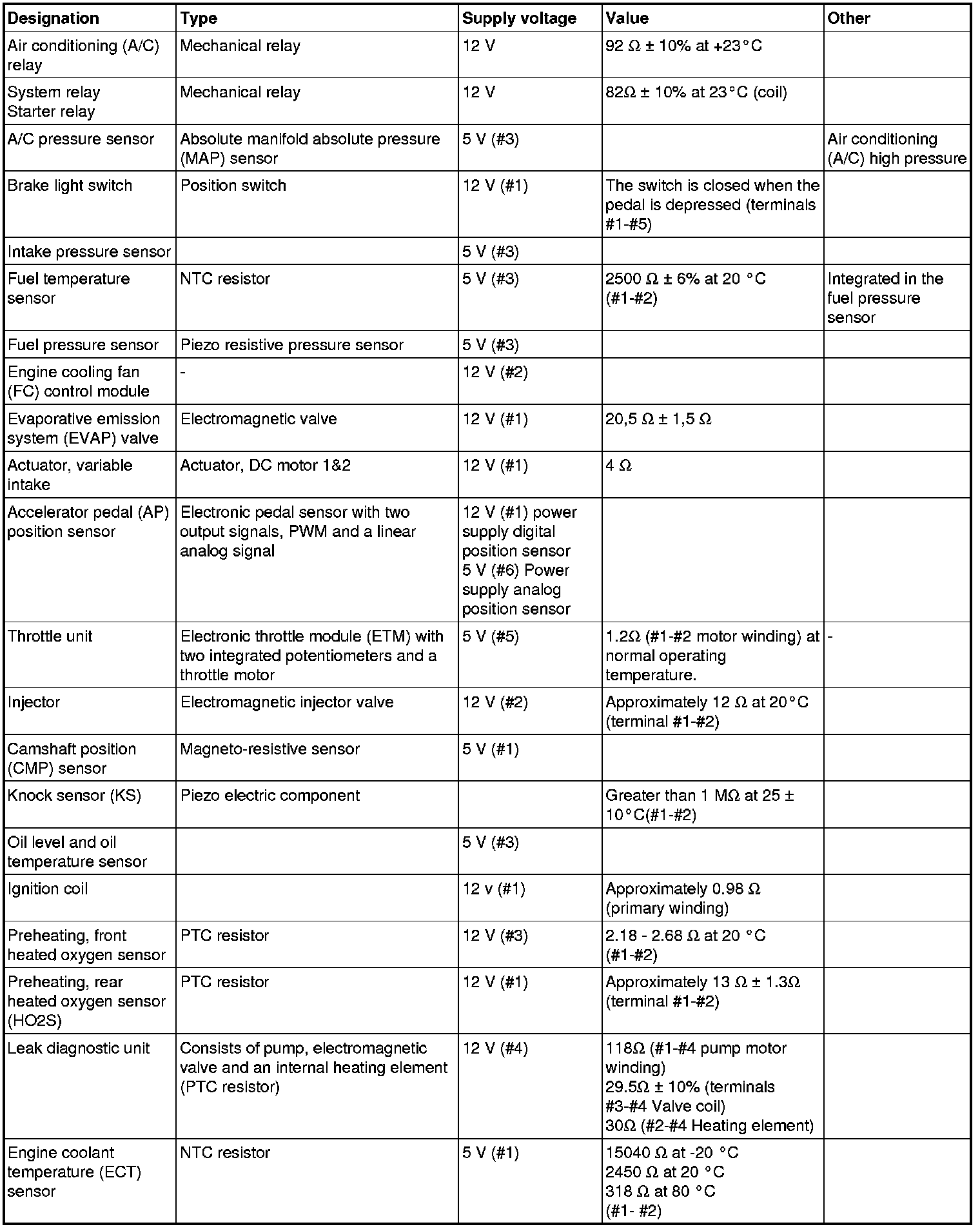

Component specifications
The component specification gives the value of the component when the connector is disconnected. Where no value is given, it is not possible to measure a relevant value at the component.
Numbers in parenthesis indicate to which pin of the component the value corresponds.
