Knock Sensor: Service and Repair

Knock sensor (KS)

Operation number: 28402-2

Removal

Note! Removal steps in this procedure may contain installation details.

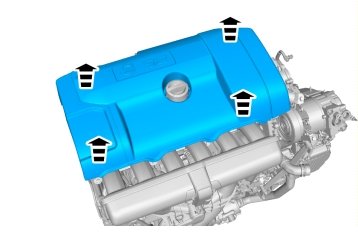

Remove intake manifold. Service and Repair




Torque: Knock sensor, 20 Nm

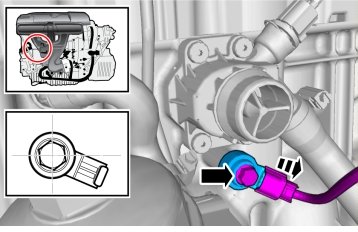

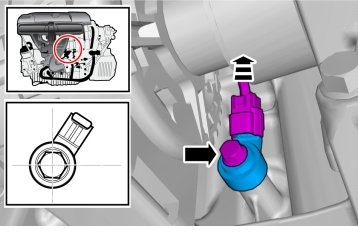

Remove oil cooler engine. Service and Repair




Torque: Knock sensor, 20 Nm

Installation

To install, reverse the removal procedure.
