Spark Plug: Service and Repair

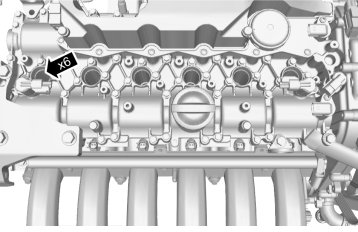

Spark plugs

Operation number: 28106-2

Removal

Note! Removal steps in this procedure may contain installation details.

Remove ignition coil. Service and Repair




Torque: Spark plug, 25 Nm
Torque: Spark plug, 28 Nm

Installation

To install, reverse the removal procedure.
