Transmission Control Systems: Locations

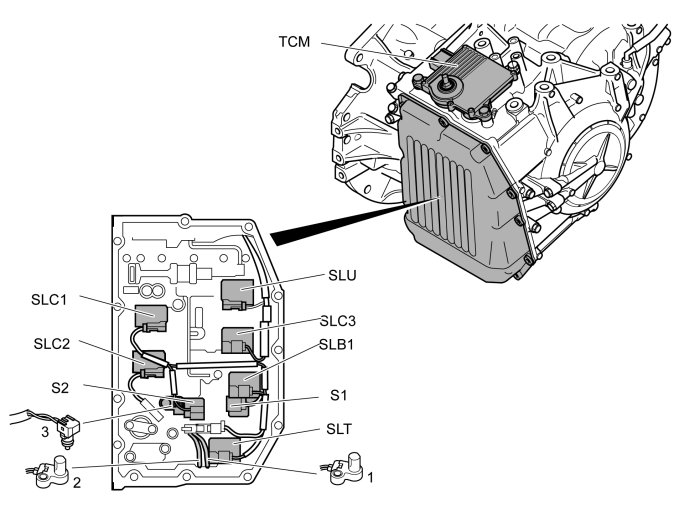

Location of components

Location Of Components:




1. Transmission input speed sensor:
2. Transmission output speed sensor:
3. Oil temperature sensor.
