Control Module: Service and Repair

Transmission Control Module (TCM)

Operation number: 43715-2

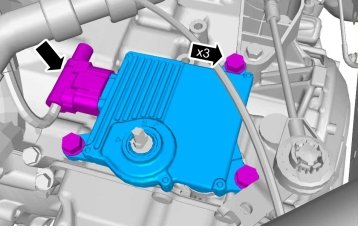

Removal

Note! Removal steps in this procedure may contain installation details.

Note! Make sure that the selector lever is in the neutral (N) position.

Perform battery disconnecting and connecting. Battery Disconnecting

Remove Accessory Drive Component Bracket. Service and Repair





Caution! Make sure that the terminals or pins/sockets of the transmission control module (TCM) and the TCM electrical connector are not bent or damaged.

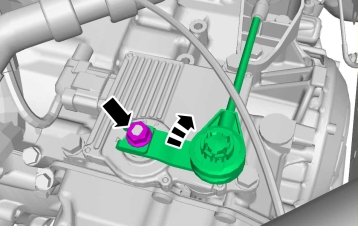

Torque: Gear selector mechanism (nut), 16 Nm





Installation

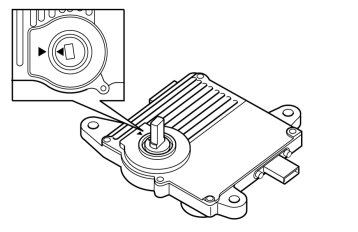

Note! Make sure that the installation marks are aligned.

To install, reverse the removal procedure.

Order and download appropriate software. Programming and Relearning

Calibrate position sensor
