Component Location, Central Electronic Module (CEM)

Location of components

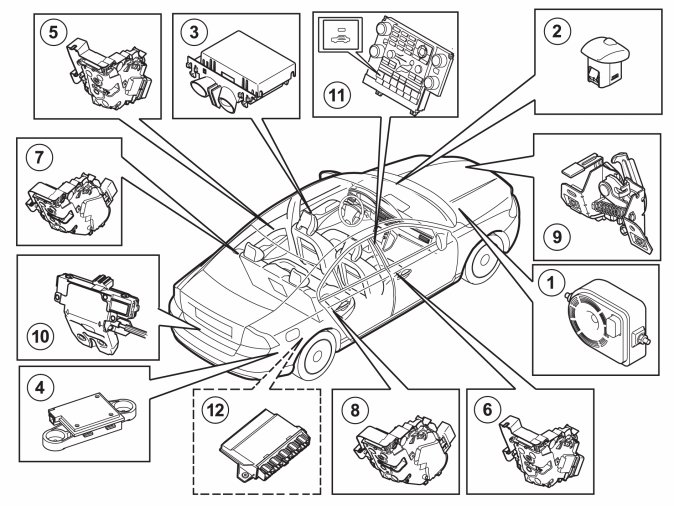

Location Of Components (Alarm Components):

Alarm components
1. Siren control module (SCM)
2. Alarm diode
3. Movement detector
4. Heartbeat sensor
5. Contact breaker in left front lock unit
6. Contact breaker in right front lock unit
7. Contact breaker in left rear lock unit
8. Contact breaker in right rear lock unit
9. Switch hood
10. Switch trunk lid / tailgate
11. Switch reduced alarm.
12. Keyless vehicle module (KVM) (if installed)
