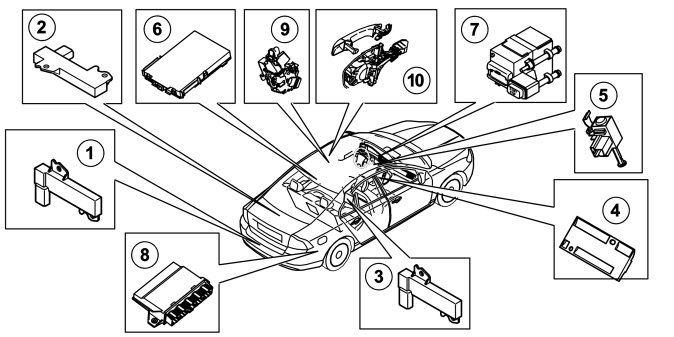

Component Location, Keyless Vehicle Module (KVM)

Location of components

Location Of Components:

1. Antenna external bumper rear
2. Rear antenna in passenger compartment (antenna 3)
3. Center antenna in passenger compartment (antenna 2)
4. Front antenna in passenger compartment (antenna 1)
5. Contact breaker at pedal
6. Remote keyless entry (RKE)
7. Starter module
8. Keyless vehicle module (KVM)
9. Quick lock (x 4)
Also contains quick lock contact breakers.
10. External door handle (x 4)
The fixed part of the door handle contains contact breakers for unlocking.
