Removing The Front Timing Cover

NOTE:

Since the illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

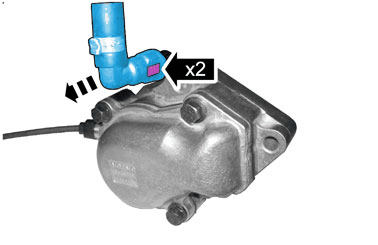

Fig 1: Removing Front Timing Cover

Courtesy of VOLVO CARS OF NORTH AMERICA.

Loosen hose thermostat housing-expansion tank from the thermostat housing by pressing in the locks, then press in the connection against the thermostat housing, then pull out the connection.
