Fuel Pump And Level Sensor Unit: Installing

NOTE: For tightening torques, see TIGHTENING TORQUE .

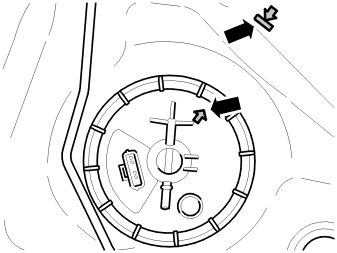

Fig 1: Aligning The Match Marks

Courtesy of VOLVO CARS CORPORATION

NOTE: Ensure that the lever on the level sensor is not damaged when installing the pump.

Install:

new O-ring
the level sensor
NOTE: The marking on the level sensor must be aligned with the marking on the fuel tank.
the 1 large plastic nut. Use see 9997111 .

Install the fuel tank. See FUEL TANK .
