Removing Center Console

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

Ignition off.

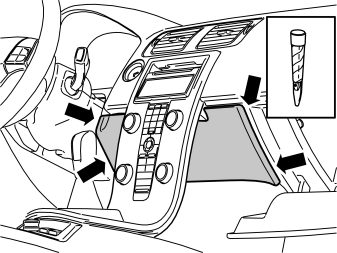

Fig 1: Identifying 4 Hidden Clips

GLL117660

Courtesy of VOLVO CARS CORPORATION

Remove the panel inside the center console. It is secured with 4 hidden clips.

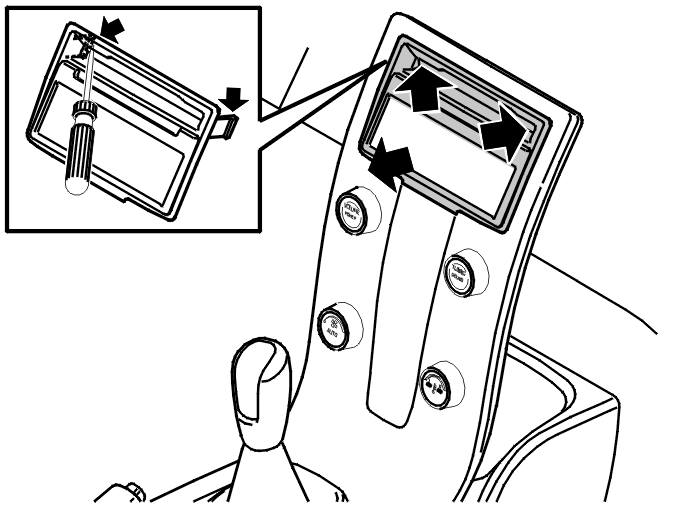

Fig 2: Identifying Radio Panel

GLL117662

Courtesy of VOLVO CARS CORPORATION

Remove the radio panel. It is secured with 2 hidden hooks.

HINT: Insert a small screwdriver and push the hooks away, 1 per side.

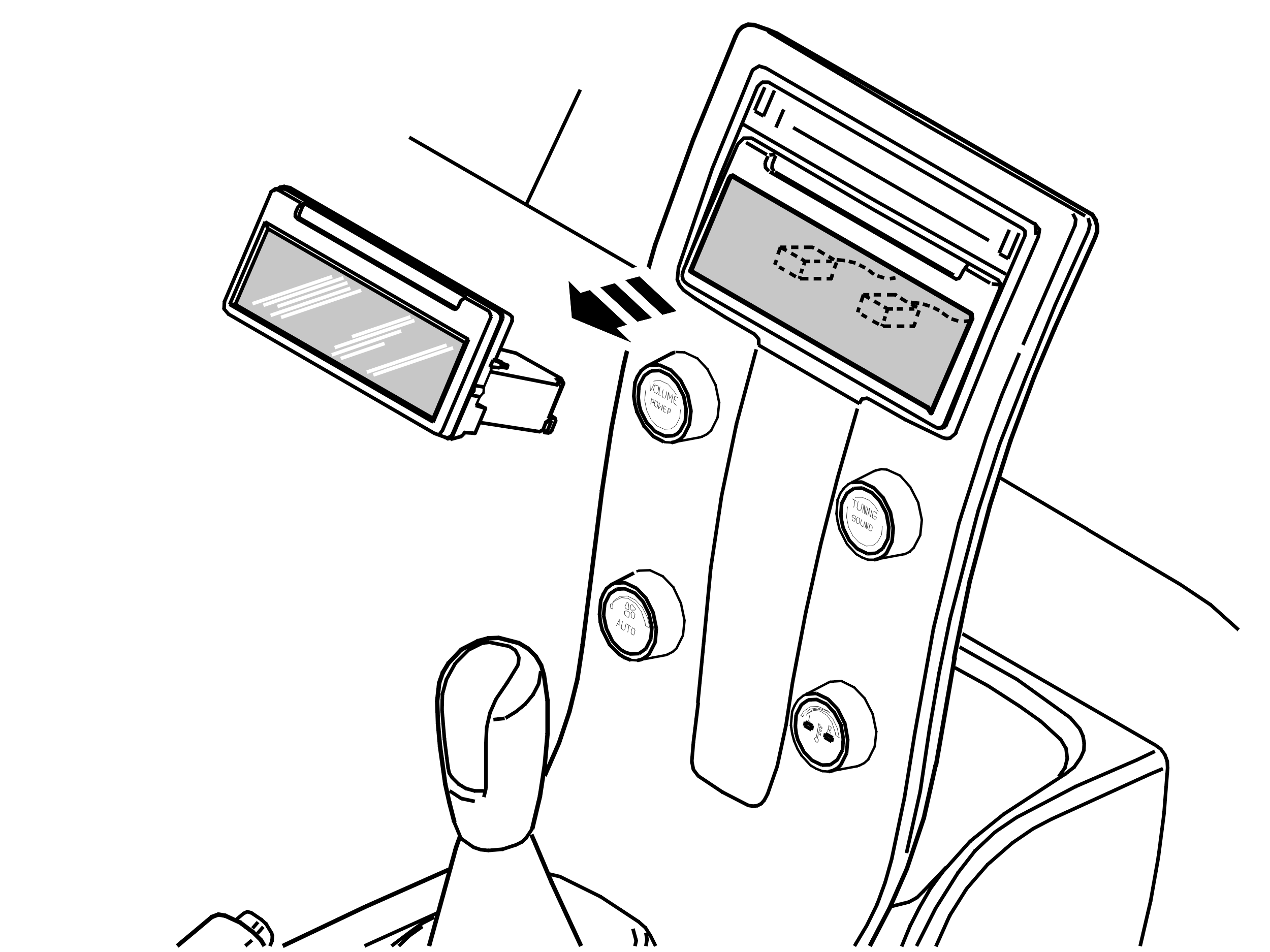

Fig 3: Identifying Infotainment Control Module

GLL117663

Courtesy of VOLVO CARS CORPORATION

Remove the infotainment control module (ICM). It is secured with 2 hidden clips.

HINT: Grip the infotainment control module (ICM) with both hands. Push the control module straight out of the center console.

Remove:

the 2 connectors from the infotainment control module (ICM)
the connector from the center console.

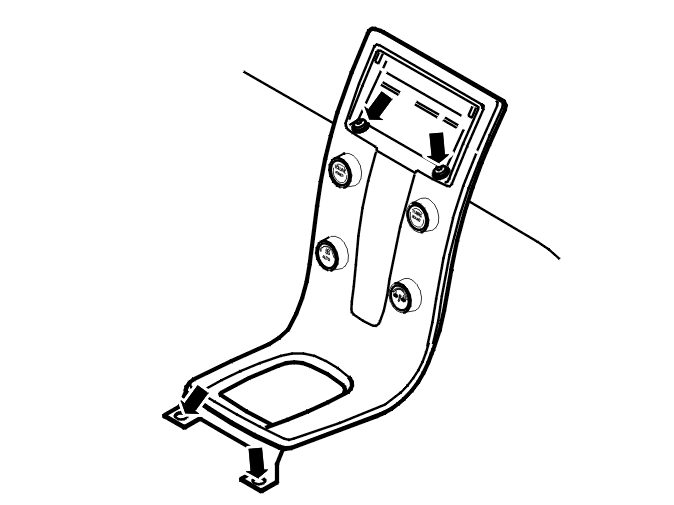

Fig 4: Identifying 4 Screws

GLL128998

Courtesy of VOLVO CARS CORPORATION

Remove:

the panel. See: FLOOR CONSOLE
the 4 screws.

Unclip the gear selector lever boot.

Lift the center console up / out.
