Steering Wheel Control Module: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove steering wheel, see STEERING WHEEL

Remove panel steering column, see PANEL STEERING COLUMN

Remove steering wheel lever right, see CONTROL STALK, RIGHT

Remove steering wheel lever left, see CONTROL STALK, LEFT

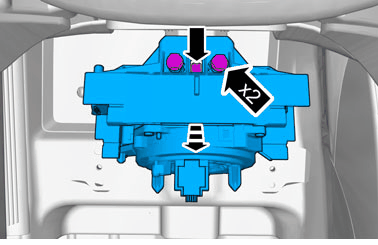

Fig 1: Identifying Steering Wheel Control Module Bolts

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the clockspring pins are not bent or damaged.

Torque: Steering wheel control module to steering column

0.9 Nm

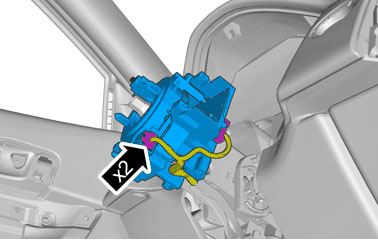

Fig 2: Identifying Steering Wheel Control Module Connectors

Courtesy of VOLVO CARS CORPORATION
