Service Mode

The wiper arms must be in service mode to remove the wiper blade protection.

1. Set the ignition to position 0 and keep the remote key in the ignition.
2. Move the right steering wheel lever up for approx. 1 second. Then the wiper arms will stand straight up.

The wiper arms return to the original position when the vehicle is started.

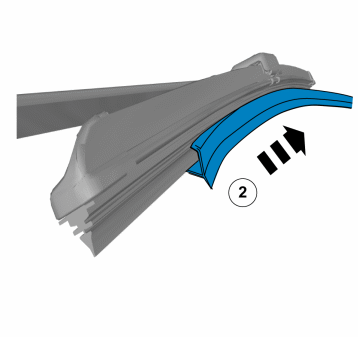

Fig 1: Identifying Protection Installation

Courtesy of VOLVO CARS CORPORATION

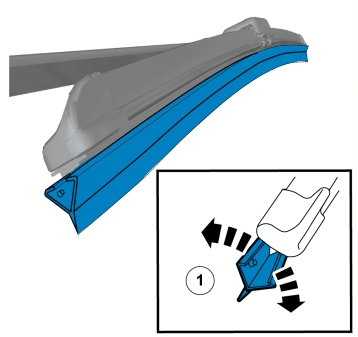

Fig 2: Identifying Protection Removal

Courtesy of VOLVO CARS CORPORATION
