Location Of Components

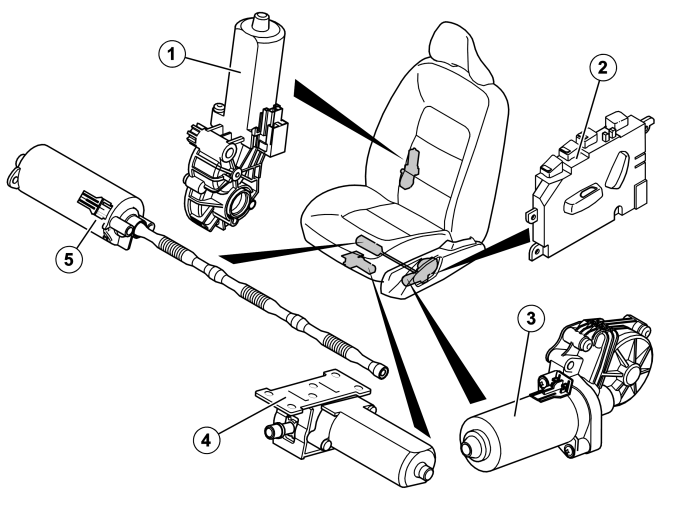

Fig 1: Identifying Power Seat Module (PSM) Components

Courtesy of VOLVO CARS CORPORATION

Overview

1. Angle adjustment motor.
2. Control panel /Power seat module (PSM).
3. Seat height adjustment motor.
4. Tilt adjustment motor.
5. Front-rear adjustment motor.
