Signal Specification

General

All the values given below are between the respective terminal in column 1 and terminal #C1:13 in column 2 (power ground) unless otherwise stated in brackets after the table entry.

NOTE:

It is important to connect the breakout box and check the ground terminals before taking readings.

U=	DC voltage in volts (V)	U_AC =	AC voltage in volts (V)
U_bat =	Battery voltage (V)	f =	Frequency in Hertz (Hz)
U_low =	Voltage approximately 0 V	t =	Time in seconds
PWM =	Pulse width modulated signal as a %

Driver door module (DDM), Passenger door module (PDM), control modules in rear doors

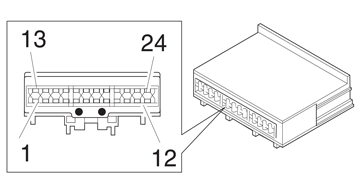

Fig 1: Driver Door Module (Ddm), Passenger Door Module (PDM), Control Modules In Rear Doors

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE

Connector C1
Breakout box terminal	Control module terminal	Signal type	Ignition off Inactive/active	Ignition on Inactive/active	Other
#1	#C1:1	Window motor, down	U = 0 V	U=0 V / U=U_bat
#2	#C1:2	Power supply control module	U = U_bat	U = U_bat
#3	#C1:3	Power supply, left camera module (LCM) / right camera module (RCM)	U = 0 V	U=0 V / U=U_bat	DDM and PDM BLIS is optional equipment.
#4	#C1:4	Control panel illumination	U = 0 V	U = U_bat	Only PDM and rear doors.
#5	#C1:5	Hall sensor 2	Pulsed signal	Pulsed signal	One pulse/motor rotation Pulse's high value > 4.1 V. Pulse's low value < 1.1 V.
#6	#C1:6	Hall sensor 1	Pulsed signal	Pulsed signal	One pulse/motor rotation Pulse's high value > 4.1 V. Pulse's low value < 1.1 V.
#7	#C1:7	Lock motor, common	0V/U_bat	0V/U_bat	Active when unlocking.
#8	#C1:8	Lock motor, child safety locks	0V/U_bat	0V/U_bat	Rear doors only.
#9	#C1:9	Lock motor, deadlocks	0V/U_bat	0V/U_bat	Active during deadlocking.
#10	#C1:10	Central locking	0V/U_bat	0V/U_bat	Active when locking.
#11	#C1:11	Signal from control panel, window down	U = 0 V	0V/U_bat	Active when lowering the window. Not driver door module (DDM).
#12	#C1:12	Window motor, up	U = 0 V	U=0 V / U=U_bat
#13	#C1:13	Ground	0 V	0 V
#14	#C1:14	Left camera module (LCM) / right camera module (RCM), ground	U = 0 V	U = U_bat	DDM and PDM BLIS is optional equipment.
#15	#C1:15	Lock motor, common, ground	U = 0 V	U = 0 V
#16	#C1:16	Ground, Hall sensor	0 V	0 V
#17	#C1:17	Power supply, Hall sensor	U = 0 V	U = U_bat
#18	#C1:18	Ground, control panel	0 V	0 V
#19	#C1:19	Control, child safety locks	U = 0 V	U=0 V / U=U_bat
#20	#C1:20	Communication LIN	5 - 8 V	5 - 8 V	Communication with driver's door control panel. Communication with control modules in rear doors.
#21	#C1:21	Door lock status	0 V at locked position, U_bat at unlocked position	0 V at locked position, U_bat at unlocked position
#22	#C1:22	Signal from control panel, window up			Active when raising the window. Not driver door module (DDM).

Driver door module (DDM), Passenger door module (PDM)

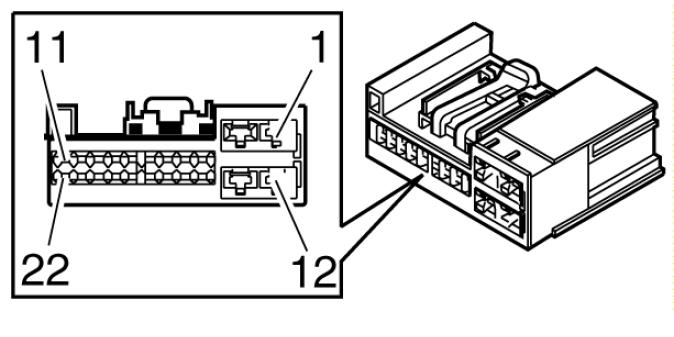

Fig 2: Driver Door Module (DDM), Passenger Door Module (PDM)

Courtesy of VOLVO CARS CORPORATION

Connector C2
Breakout box terminal	Control module terminal	Signal type	Ignition off Inactive/active	Ignition on Inactive/active	Other
#31	C2:1	Reserve	-	-
#32	C2:2	Reserve	-	-
#33	C2:3	Communication cable, CAN_H	2.5-3.5 V	2.5-3.5 V
#34	C2:4	Communication cable, LIN	5 - 8 V	5 - 8 V	Communication with left camera module (LCM) / right camera module (RCM).
#35	C2:5	Central locking control, unlocking	0 V	0 V / U=U_bat
#36	C2:6	Door mirror potentiometer, power supply	0 V	U_bat
#37	C2:7	Door mirror potentiometer, ground	0 V	0 V
#38	C2:8	Mirror motor Up/Down	0 V	0V/U_bat
#39	C2:9	Mirror motor Left/Right	0 V	0V/U_bat
#40	C2:10	Door mirror defroster, power supply	0 V
#41	C2:11	Turn signal lamp, power supply	0 V	0V/U_bat
#42	C2:12	Surroundings lighting, power supply	0 V	0V/U_bat
#43	C2:13	Reserve
#44	C2:14	Reserve
#45	C2:15	Communication cable, CAN_L	1.5 - 2.5 V	1.5 - 2.5 V
#46	C2:16
#47	C2:17	Door mirror, retracting	0 V	0V/U_bat
#48	C2:18	Door mirror potentiometer left/right	0 V	0V/U_bat
#49	C2:19	Door mirror potentiometer up/down	0 V	0V/U_bat
#50	C2:20	Central locking control, ground	0 V	0 V
#51	C2:21	Central locking control, locking	0 V	0V/U_bat
#52	C2:22	Reserve
#53	C2:23	Door mirror, ground	0 V	0 V
#54	C2:24	Mirror motor left/right	0 V	0V/U_bat
