Main Bearing Classes

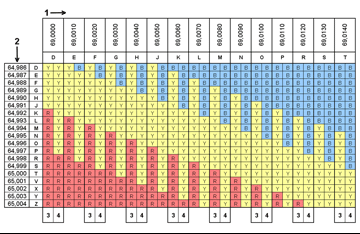

Fig 1: Main Bearing Selection Chart (1 Of 2)
GLL159023Courtesy of VOLVO CARS CORPORATION
Fig 2: Main Bearing Selection Chart (2 Of 2)
GLL159024Courtesy of VOLVO CARS CORPORATION
  1. Classification cylinder block
  2. Classification crankshaft
  3. Cylinder block
  4. Intermediate section
  5. Main bearing
  6. Throw-out bearing
  7. Thickness
