Circuit Protection Devices

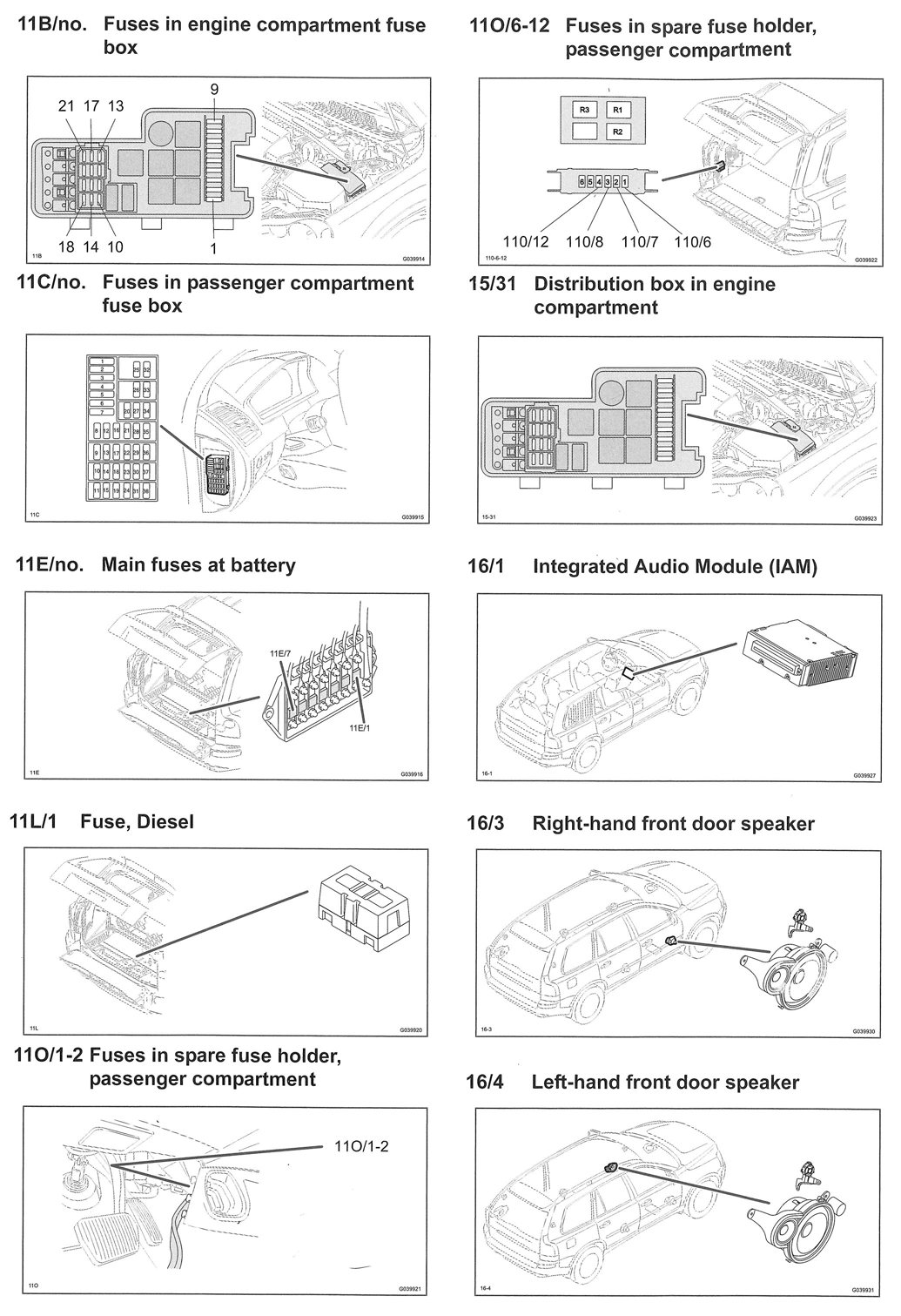

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| Cargo Compartment Fuse Holder (11O/6 - 12) | At rear of cargo compartment. See Figure. |
| Engine Compartment Distribution Box (15/31) | Left side of engine compartment. See Figure. |
| Engine Compartment Fuse Box (11B) | At left side of engine compartment, forward of strut tower. See Figure. |
| Main Fuses (11E) | Next to battery, in cargo compartment. See Figure. |
| Passenger Compartment Fuse Box (11C) | At left end of dash. See Figure. |
| Passenger Compartment Spare Fuse Holder (11O/1-2) | Left side of dash. See Figure. |
