Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Engine (8 Cyl.)
G00471728Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 2: Engine (6 Cyl.)
G00472323Courtesy of VOLVO CARS OF NORTH AMERICA.

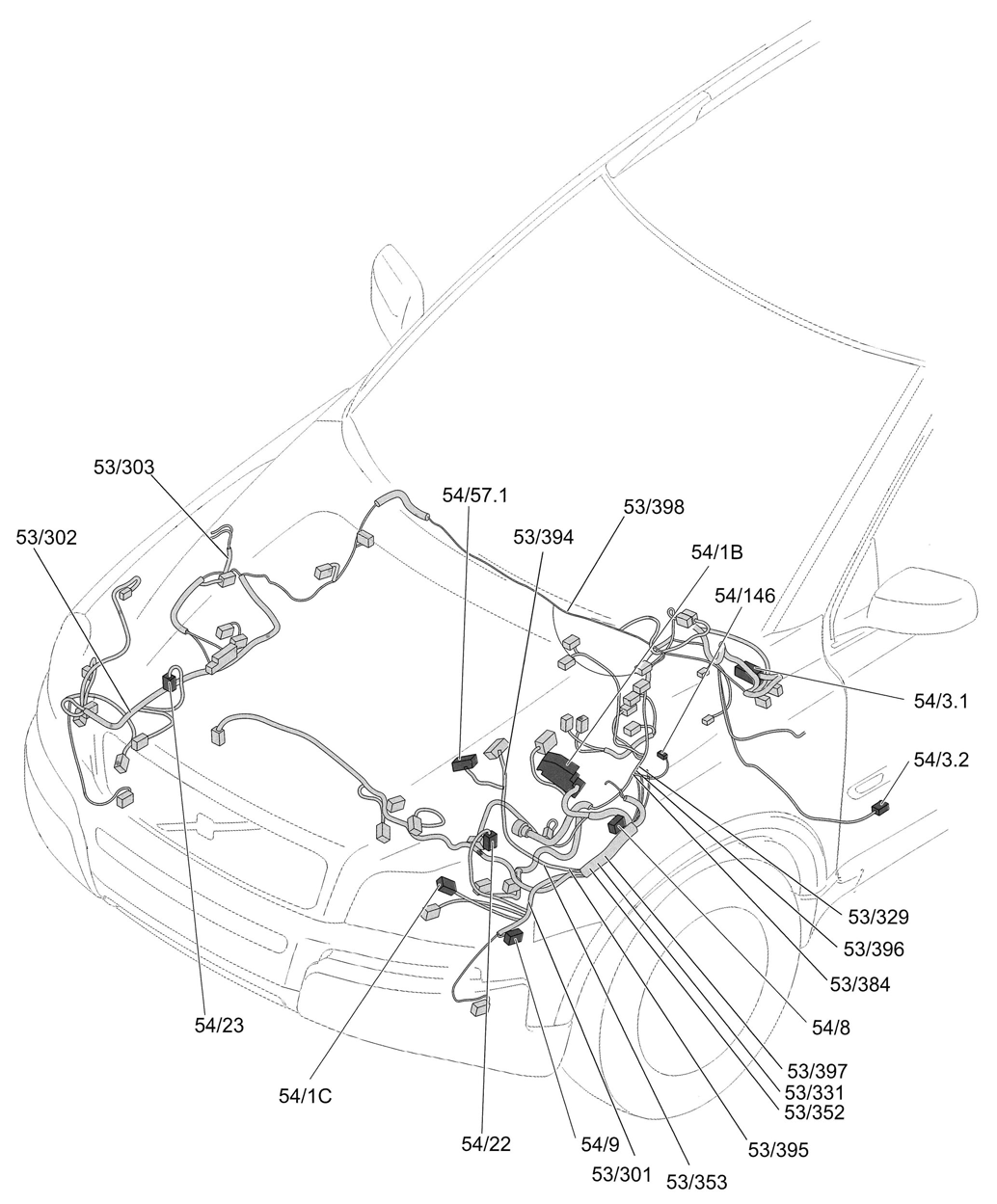

Fig 3: Engine Compartment
G00479577Courtesy of VOLVO CARS OF NORTH AMERICA.

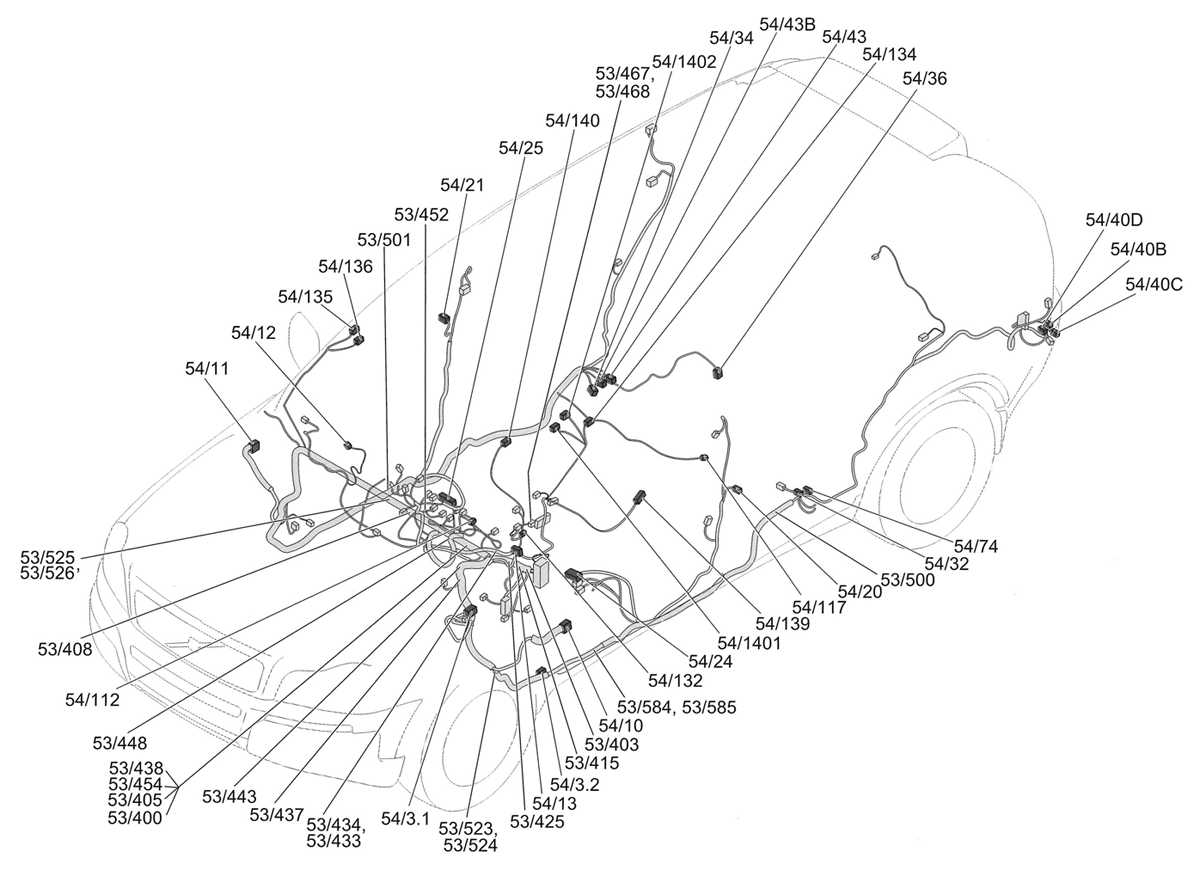

Fig 4: Vehicle Overview
G00479578Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 5: Rear Of Vehicle
G00463804Courtesy of VOLVO CARS OF NORTH AMERICA.

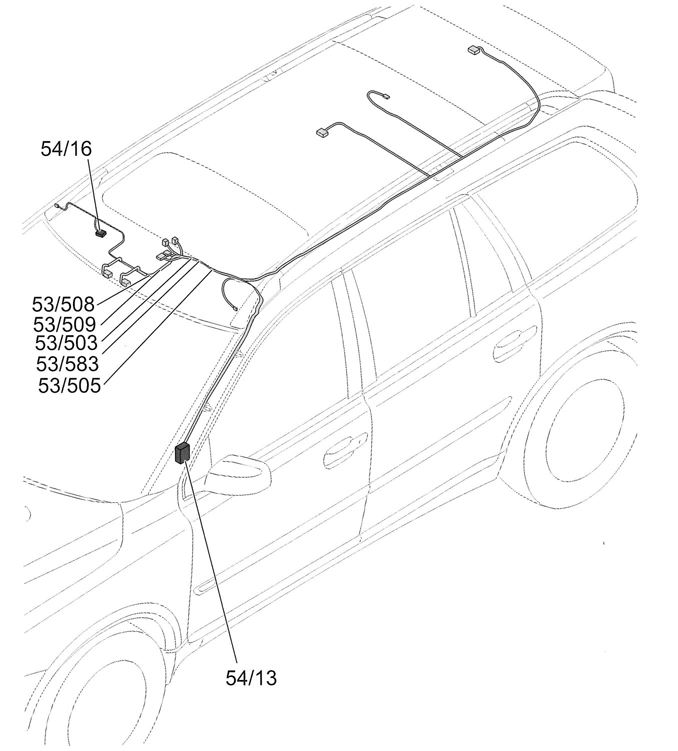

Fig 6: Roof
G00479579Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 7: Tailgate
G00447772Courtesy of VOLVO CARS OF NORTH AMERICA.

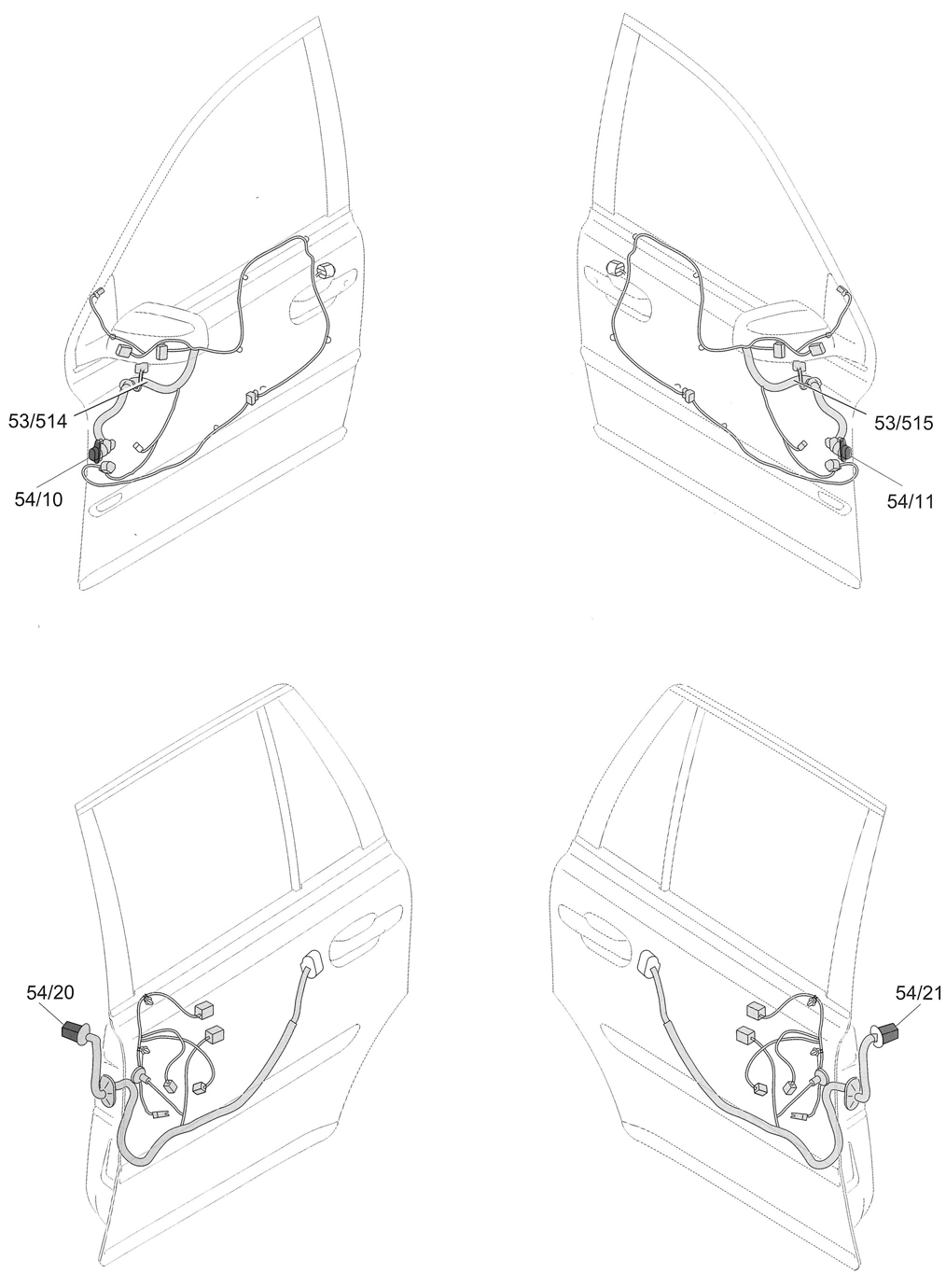

Fig 8: Front Doors
G00479580Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 9: Components 1/1 To 2/91
G00471681Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 10: Components 2/133 To 3/1
G00475677Courtesy of VOLVO CARS OF NORTH AMERICA.

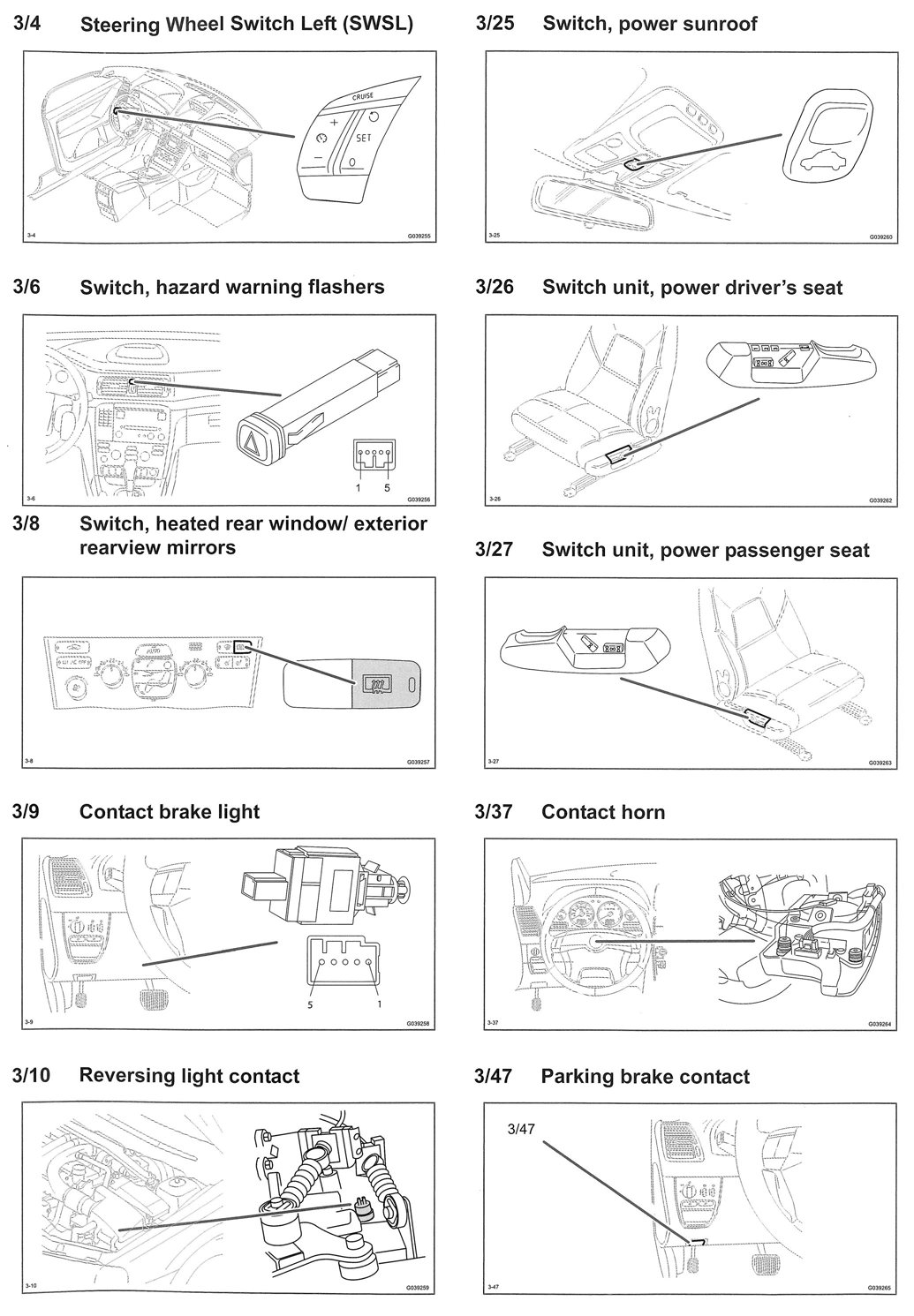

Fig 11: Components 3/4 To 3/47
G00475678Courtesy of VOLVO CARS OF NORTH AMERICA.

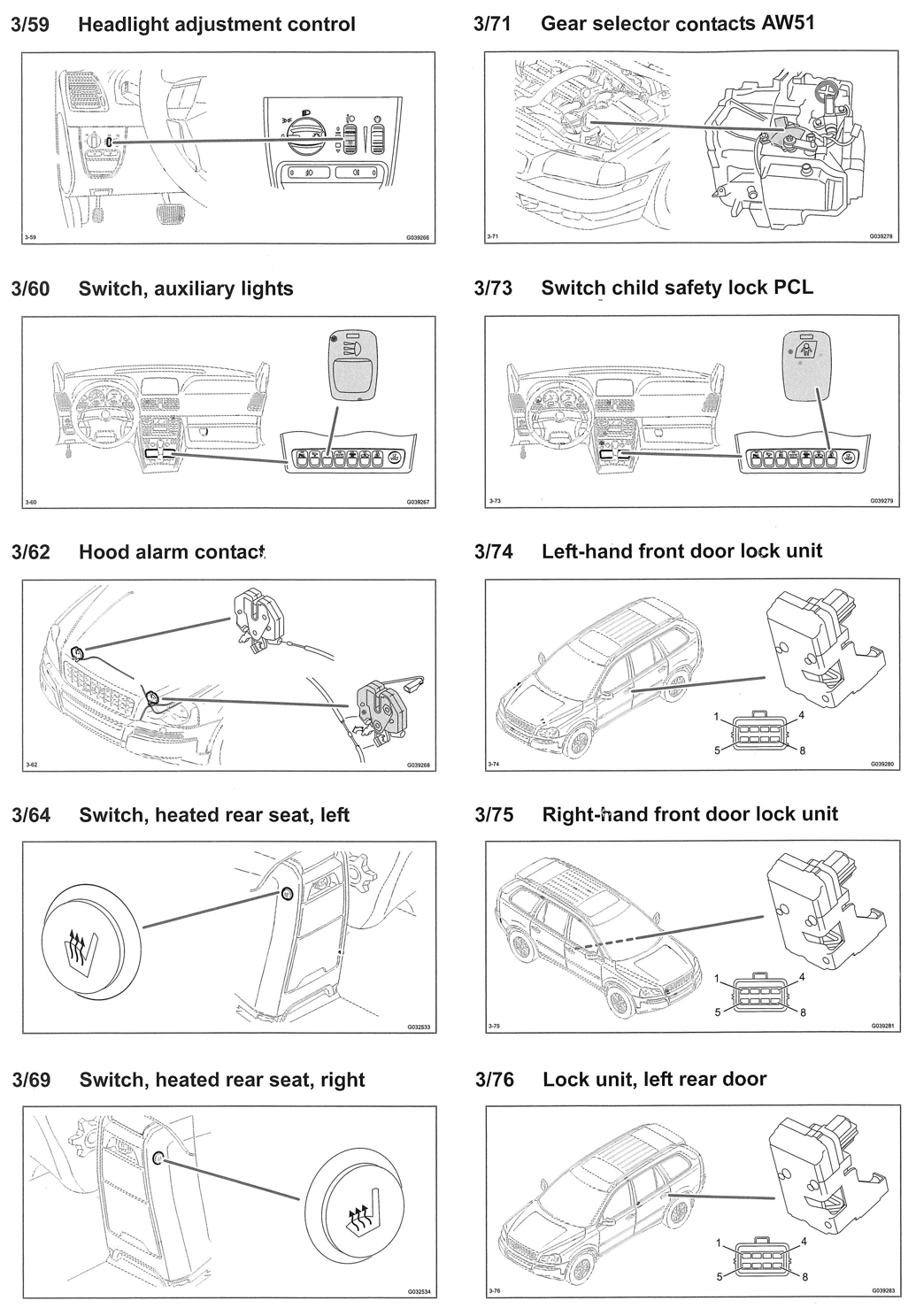

Fig 12: Components 3/59 To 3/76
G00475679Courtesy of VOLVO CARS OF NORTH AMERICA.

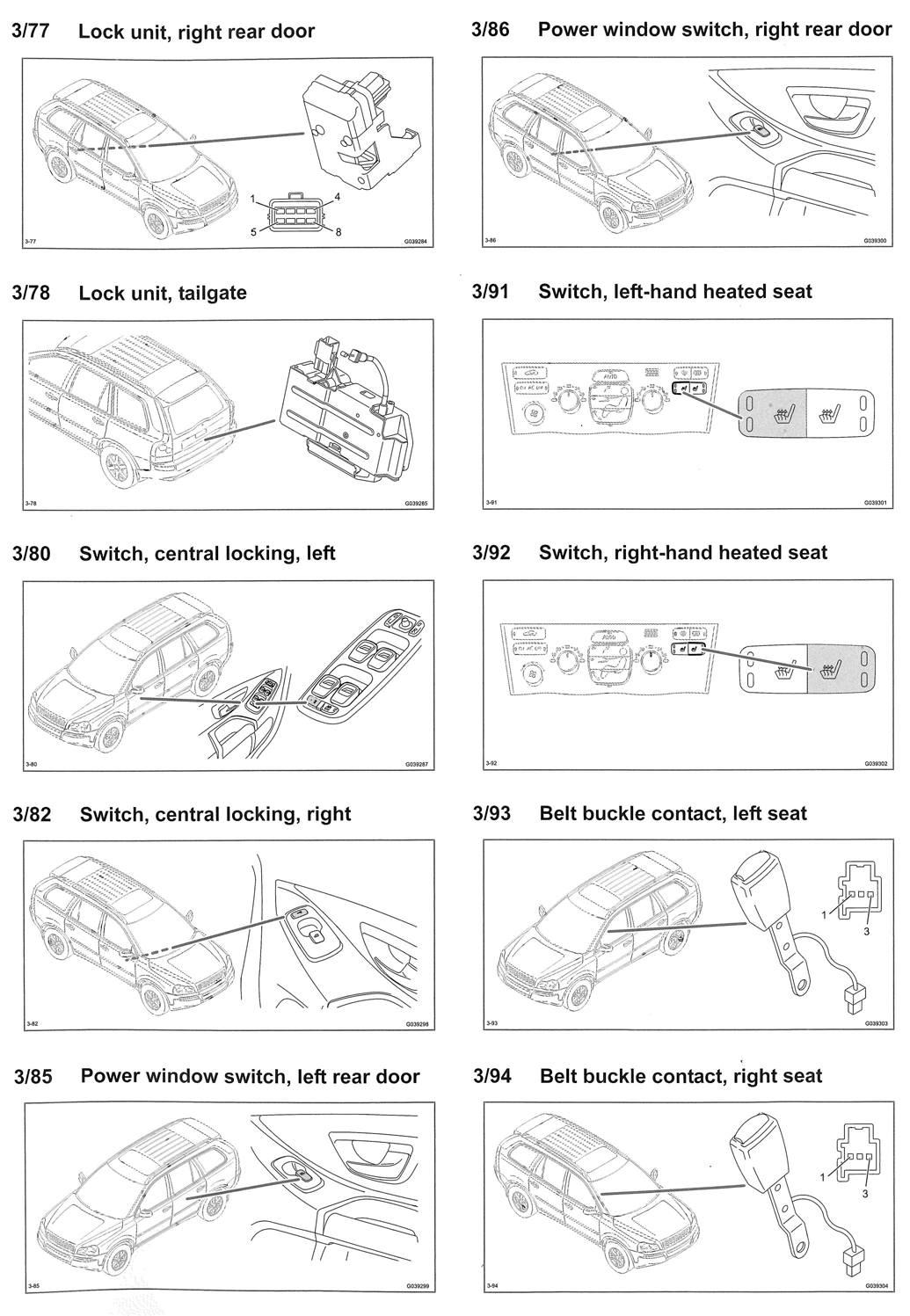

Fig 13: Components 3/77 To 3/94
G00475680Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 14: Components 3/95 To 3/155
G00475681Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 15: Components 3/156 To 3/293
G00475682Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 16: Components 4/7 To 4/46
G00475683Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 17: Components 4/46 To 4/78
G00475684Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 18: Components 4/82 To 4/124
G00475685Courtesy of VOLVO CARS OF NORTH AMERICA.

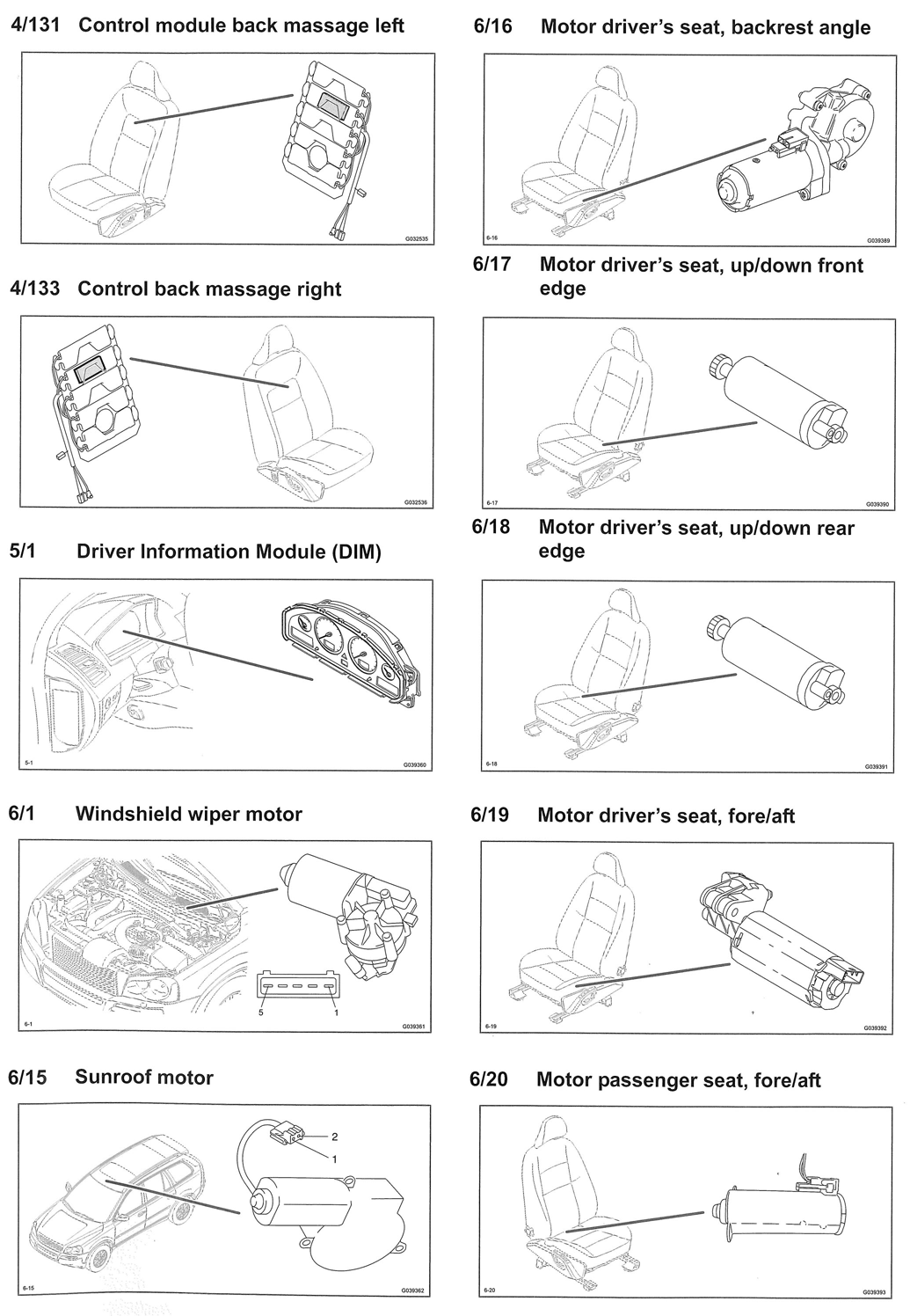

Fig 19: Components 4/131 To 6/20
G00475686Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 20: Components 6/25 To 6/39
G00475687Courtesy of VOLVO CARS OF NORTH AMERICA.

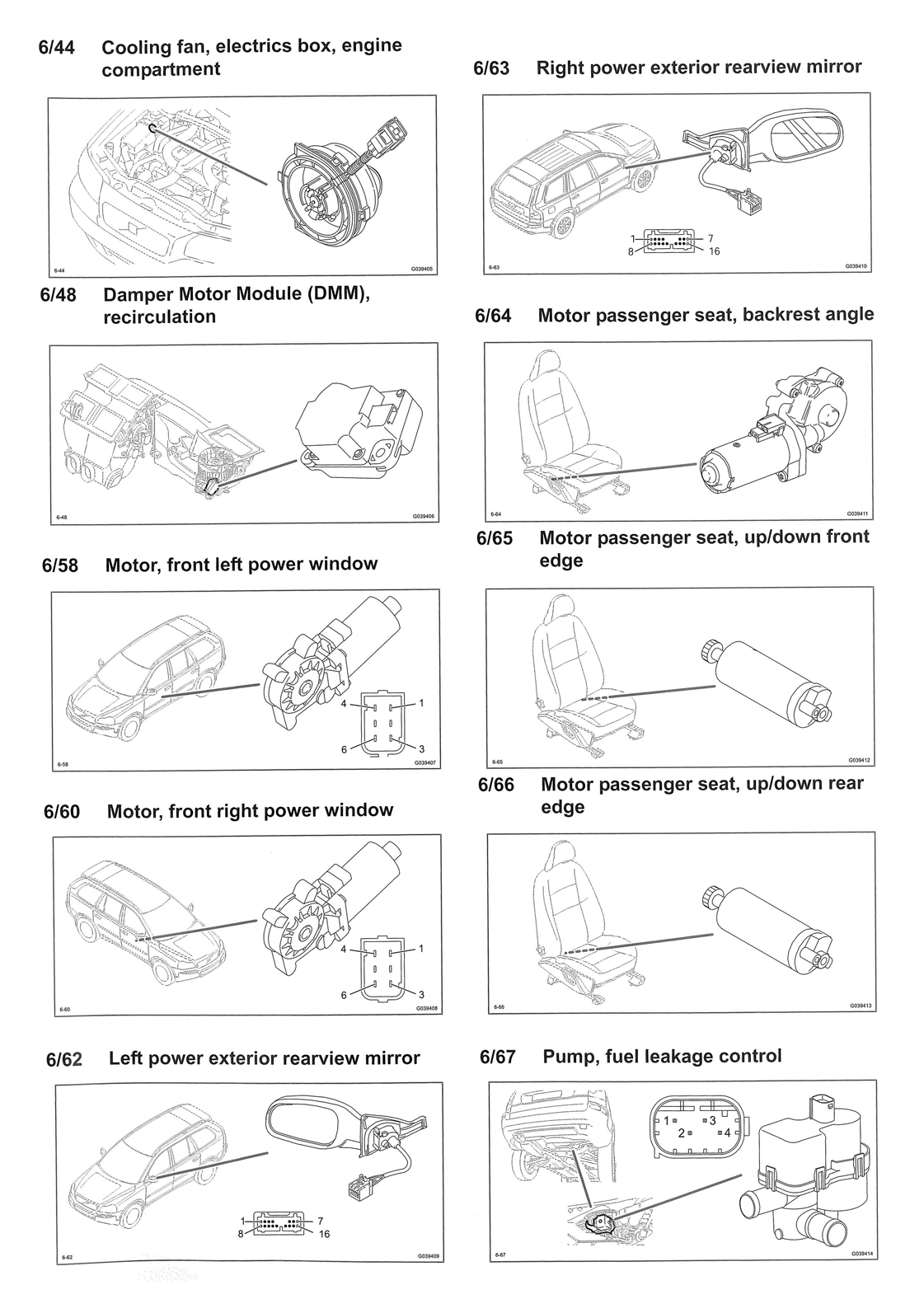

Fig 21: Components 6/44 To 6/67
G00475688Courtesy of VOLVO CARS OF NORTH AMERICA.

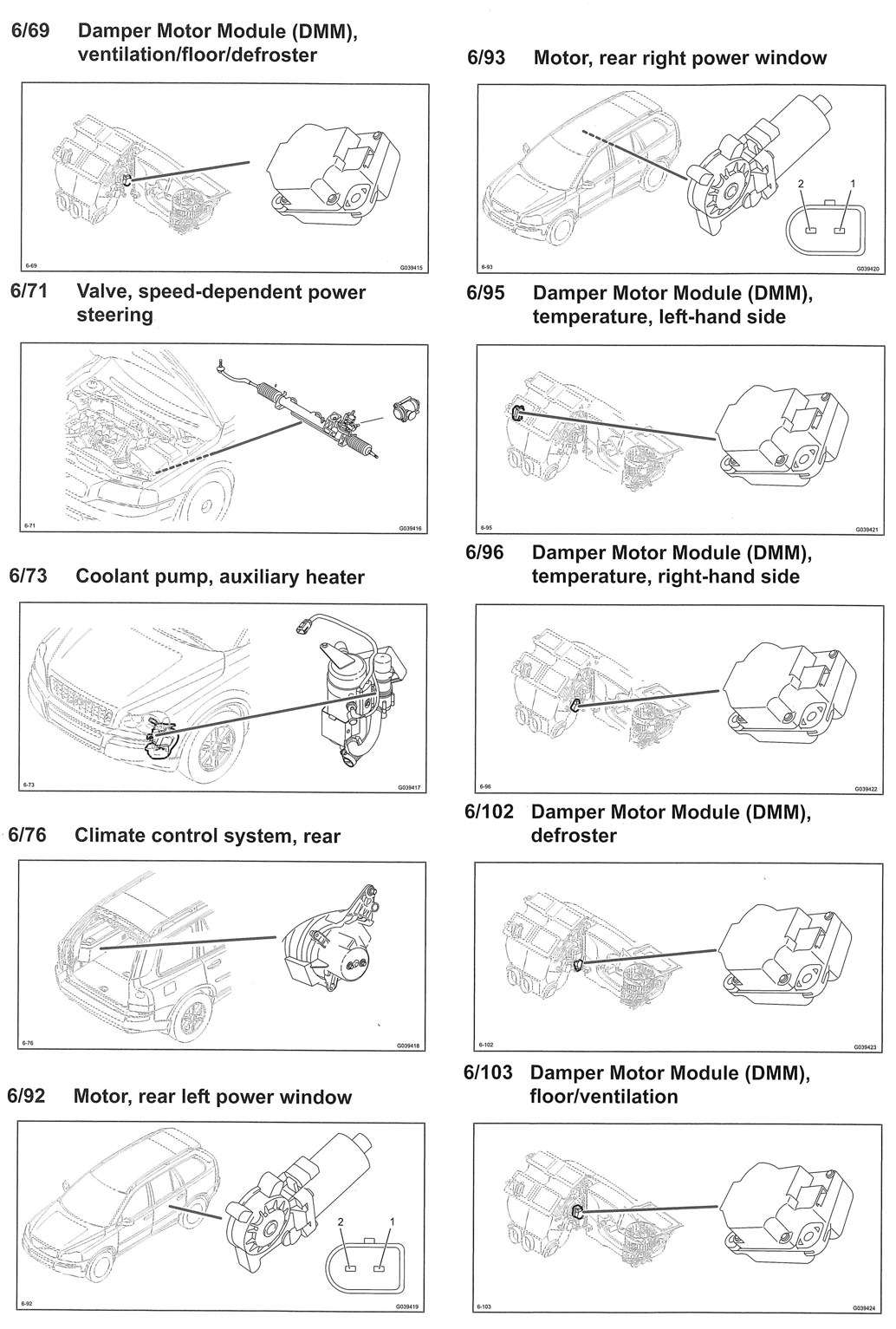

Fig 22: Components 6/69 To 6/103
G00475689Courtesy of VOLVO CARS OF NORTH AMERICA.

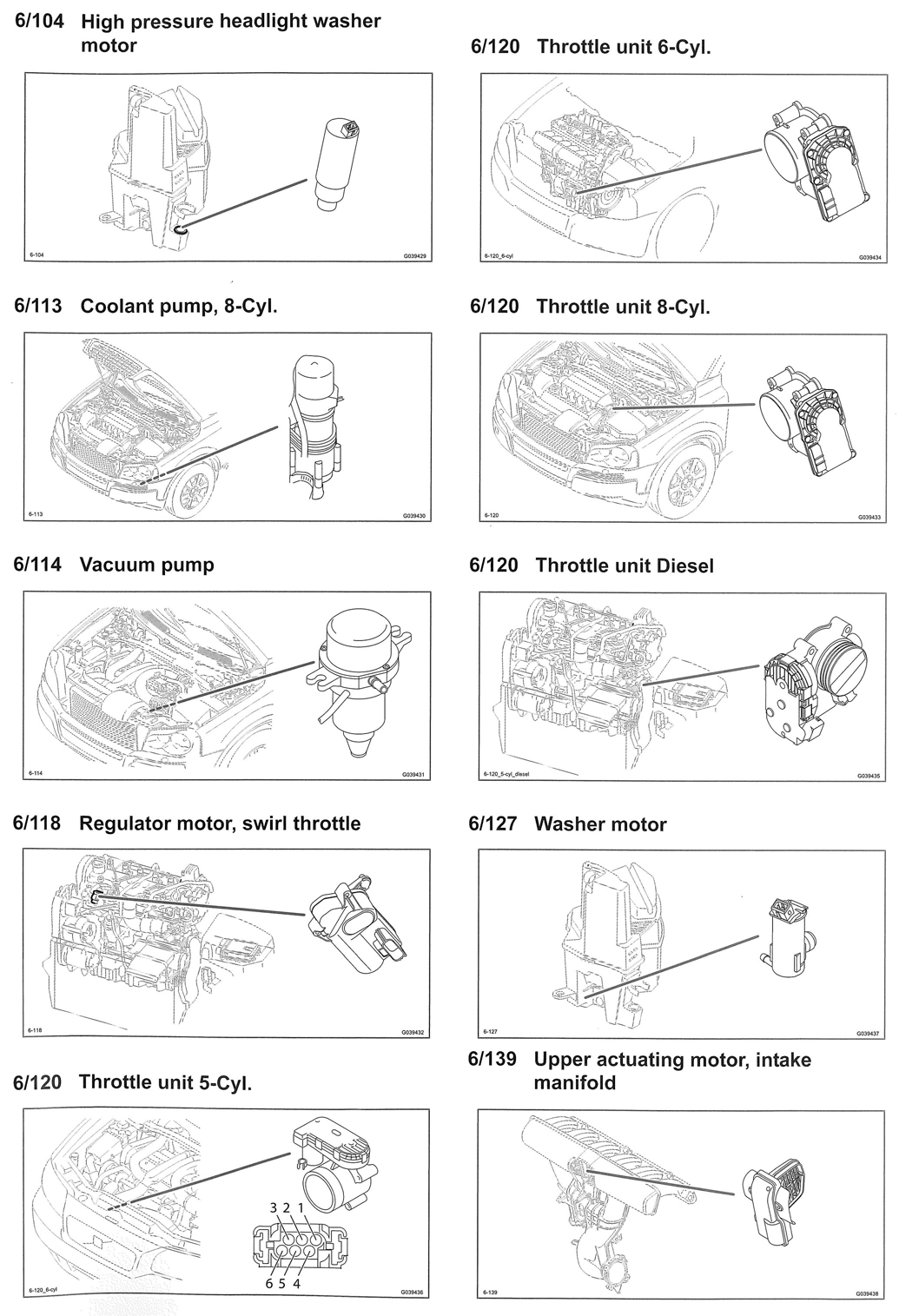

Fig 23: Components 6/104 To 6/139
G00475690Courtesy of VOLVO CARS OF NORTH AMERICA.

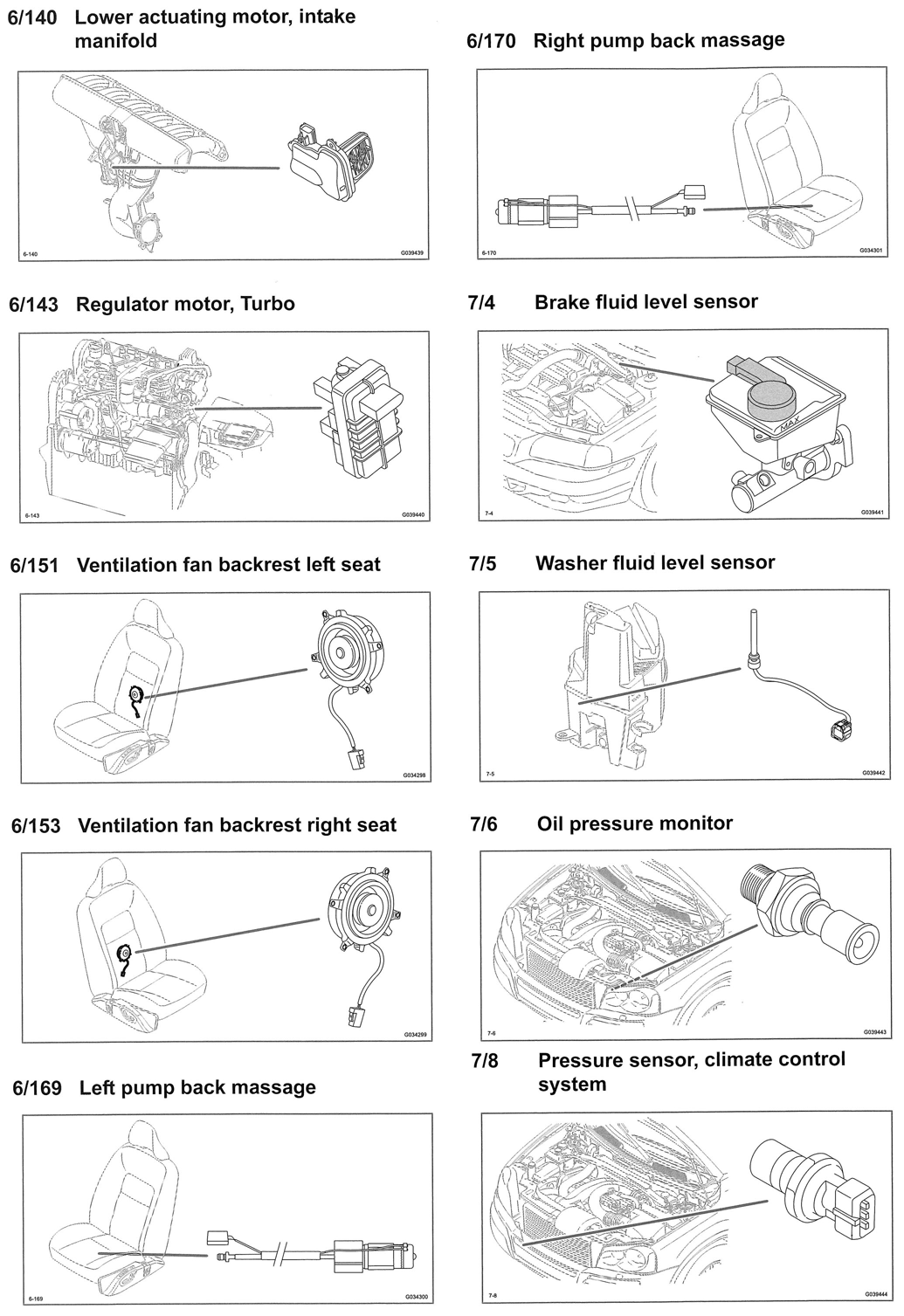

Fig 24: Components 6/140 To 7/8
G00475691Courtesy of VOLVO CARS OF NORTH AMERICA.

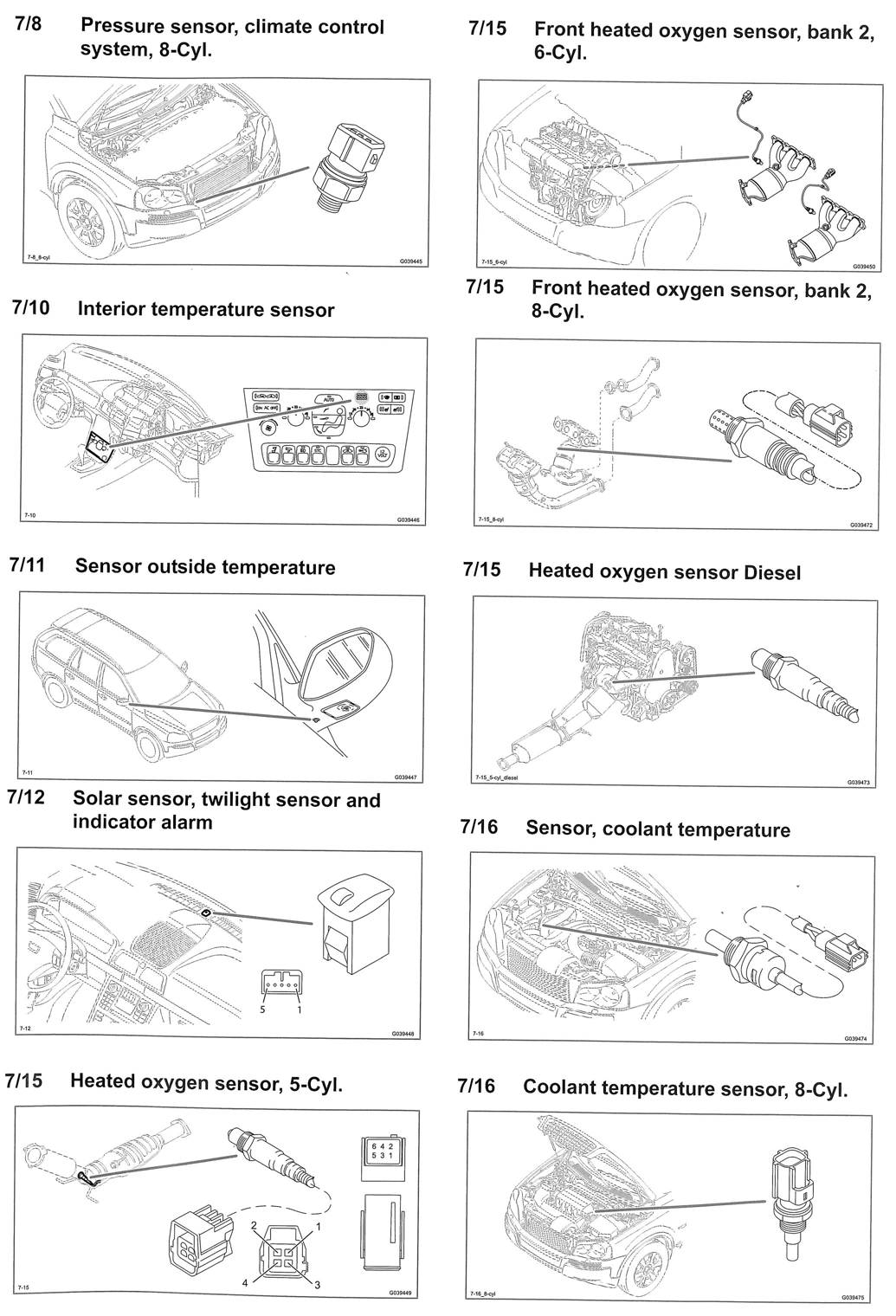

Fig 25: Components 7/8 To 7/16
G00475692Courtesy of VOLVO CARS OF NORTH AMERICA.

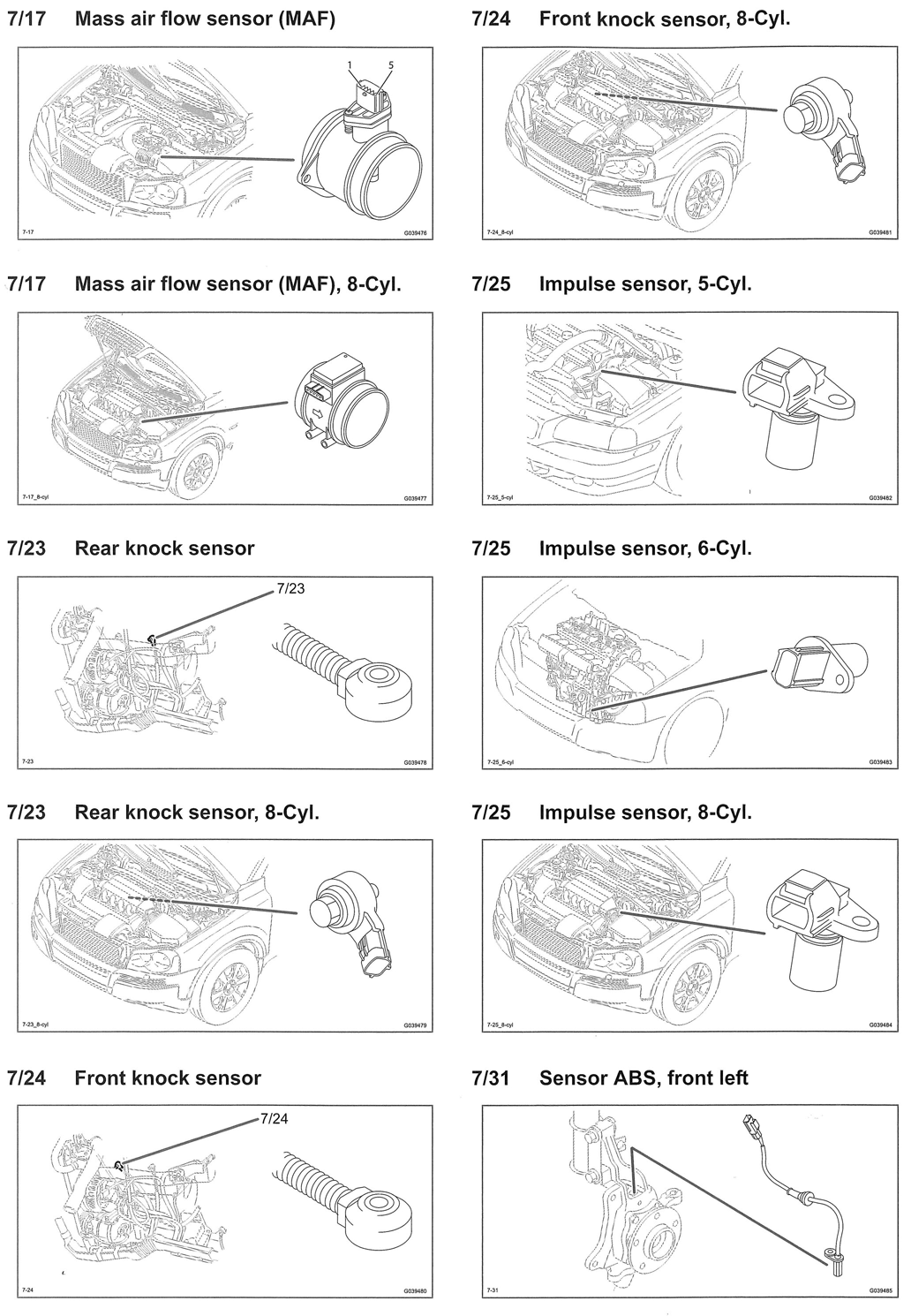

Fig 26: Components 7/17 To 7/31
G00475693Courtesy of VOLVO CARS OF NORTH AMERICA.

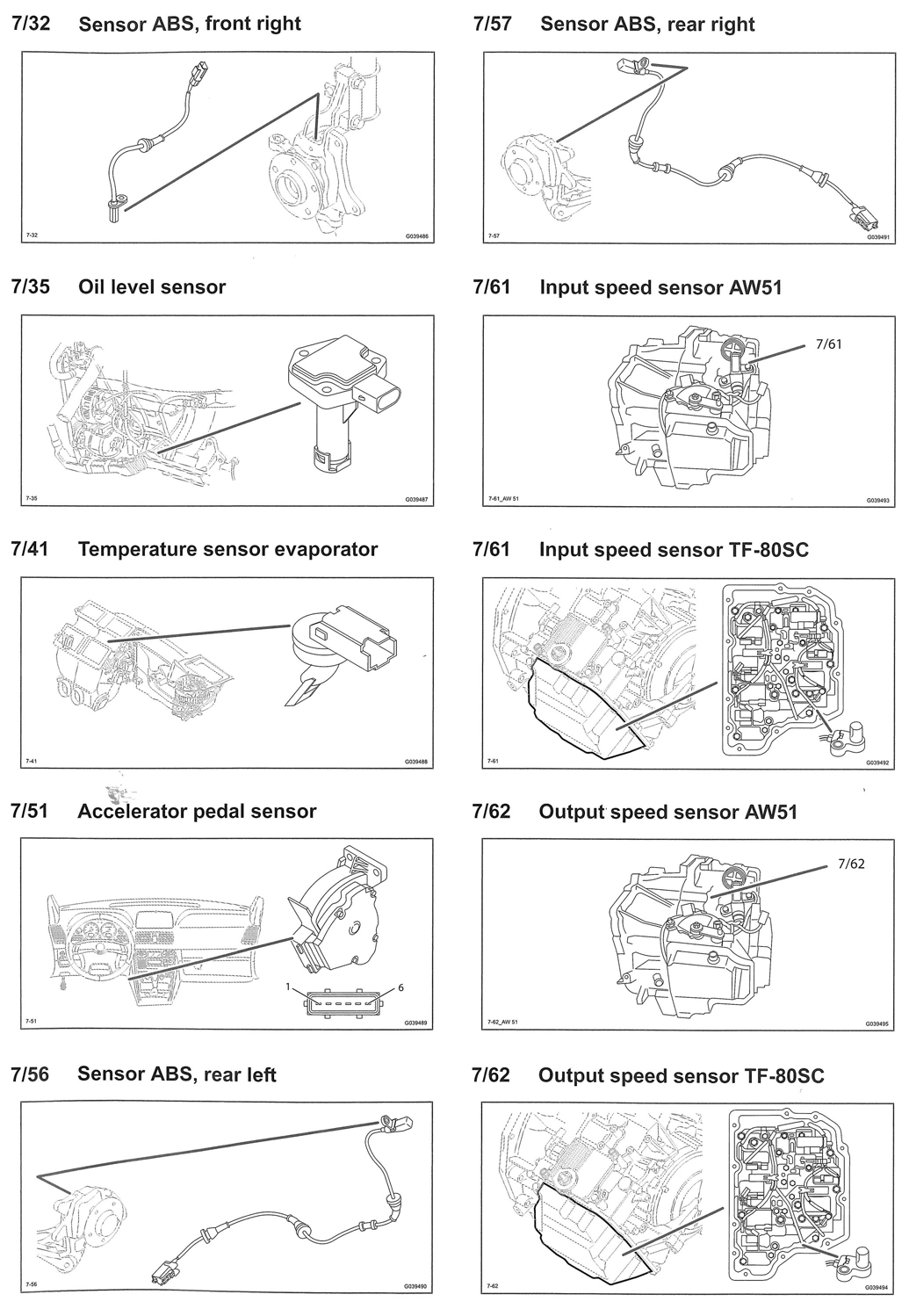

Fig 27: Components 7/32 To 7/62
G00475694Courtesy of VOLVO CARS OF NORTH AMERICA.

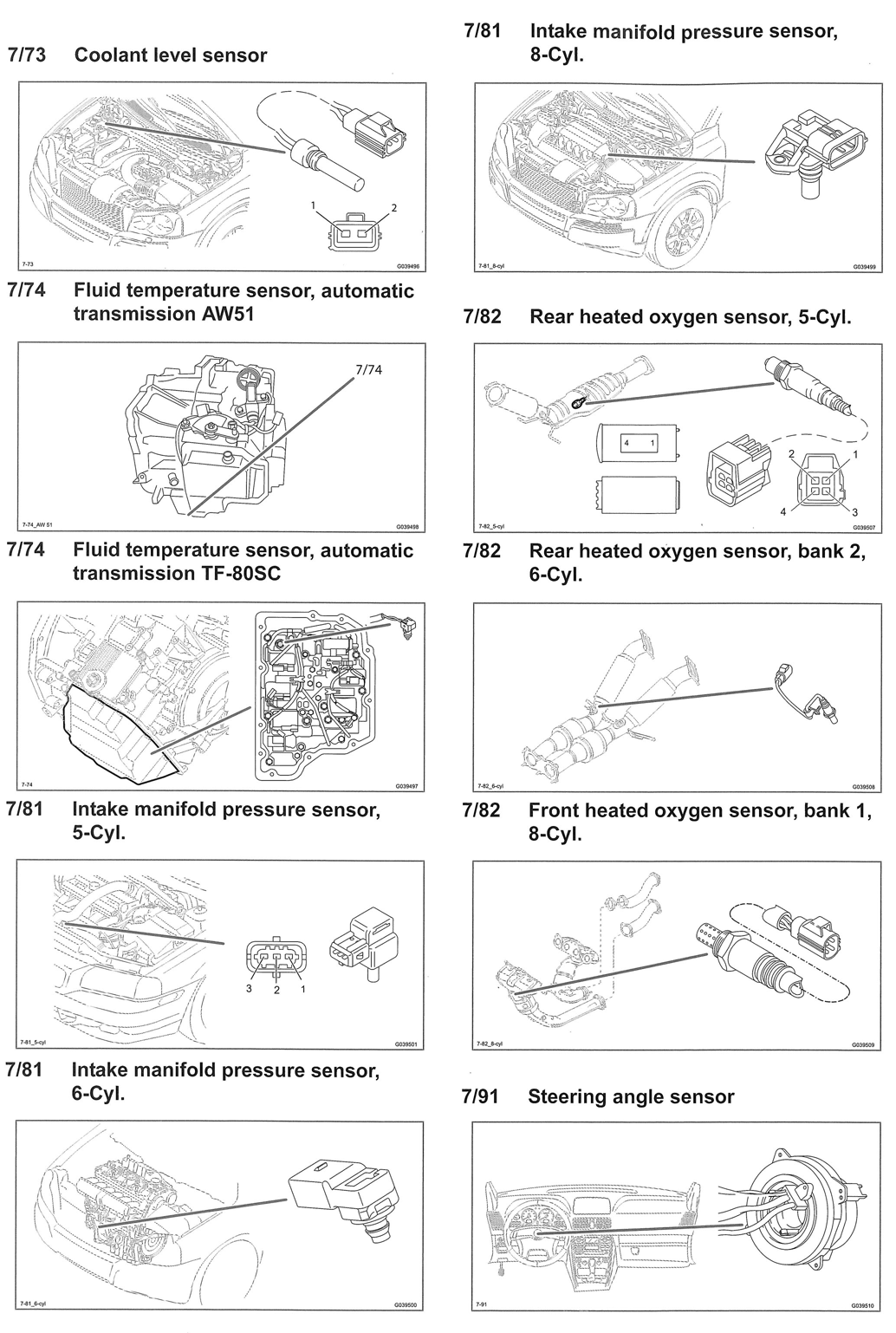

Fig 28: Components 7/73 To 7/91
G00475695Courtesy of VOLVO CARS OF NORTH AMERICA.

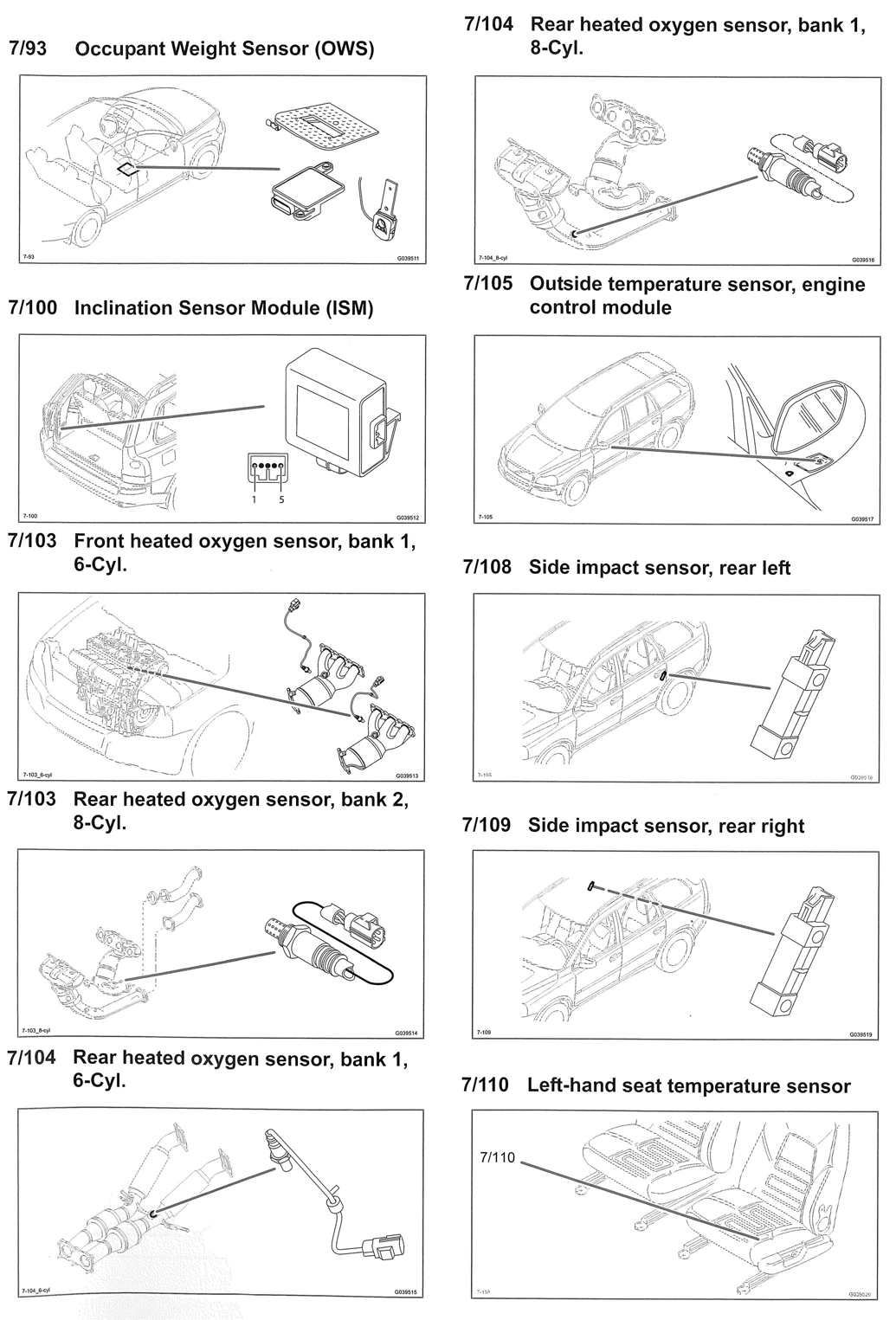

Fig 29: Components 7/93 To 7/110
G00479550Courtesy of VOLVO CARS OF NORTH AMERICA.

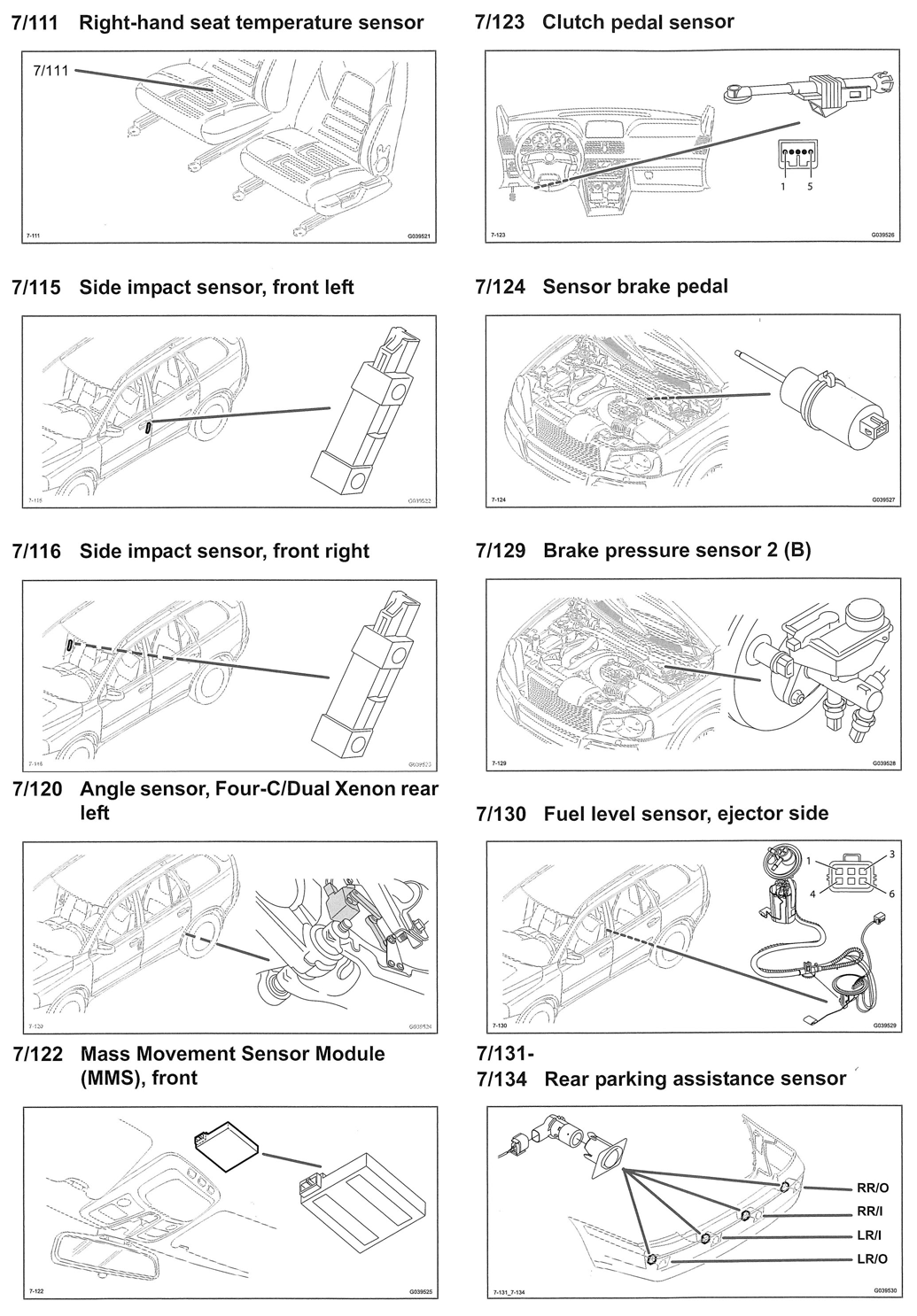

Fig 30: Components 7/111 To 7/134
G00479551Courtesy of VOLVO CARS OF NORTH AMERICA.

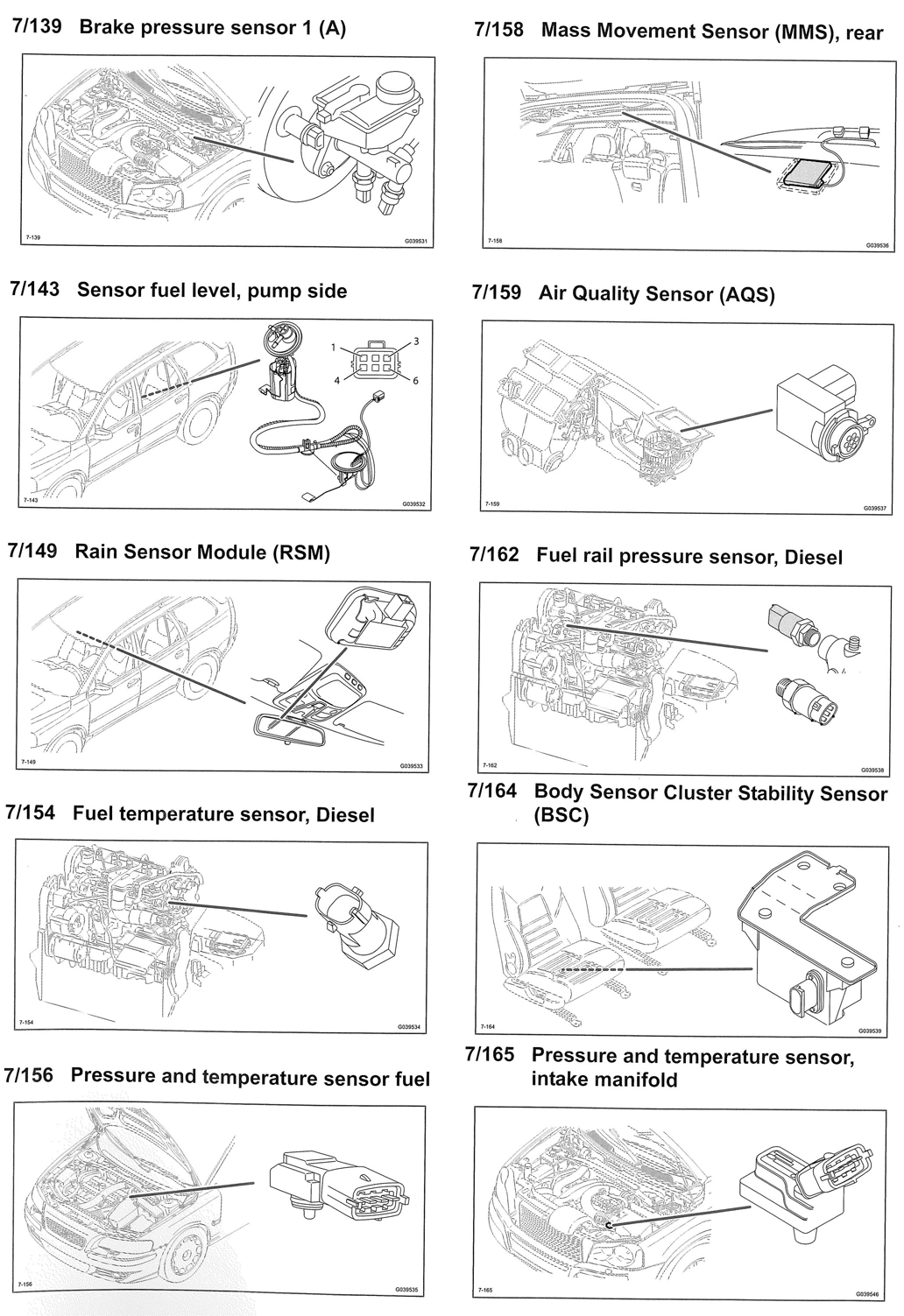

Fig 31: Components 7/139 To 7/165
G00479552Courtesy of VOLVO CARS OF NORTH AMERICA.

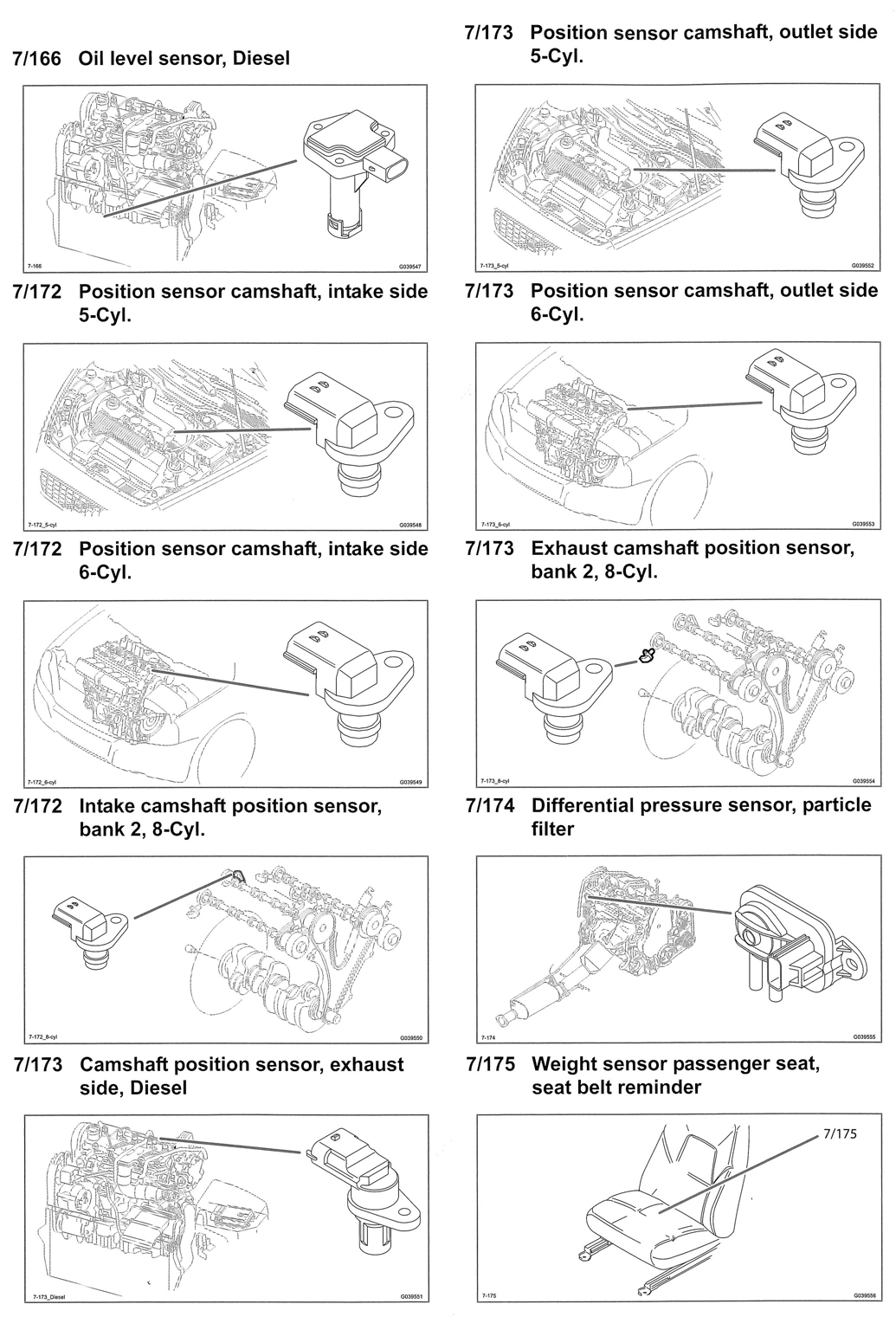

Fig 32: Components 7/166 To 7/175
G00479553Courtesy of VOLVO CARS OF NORTH AMERICA.

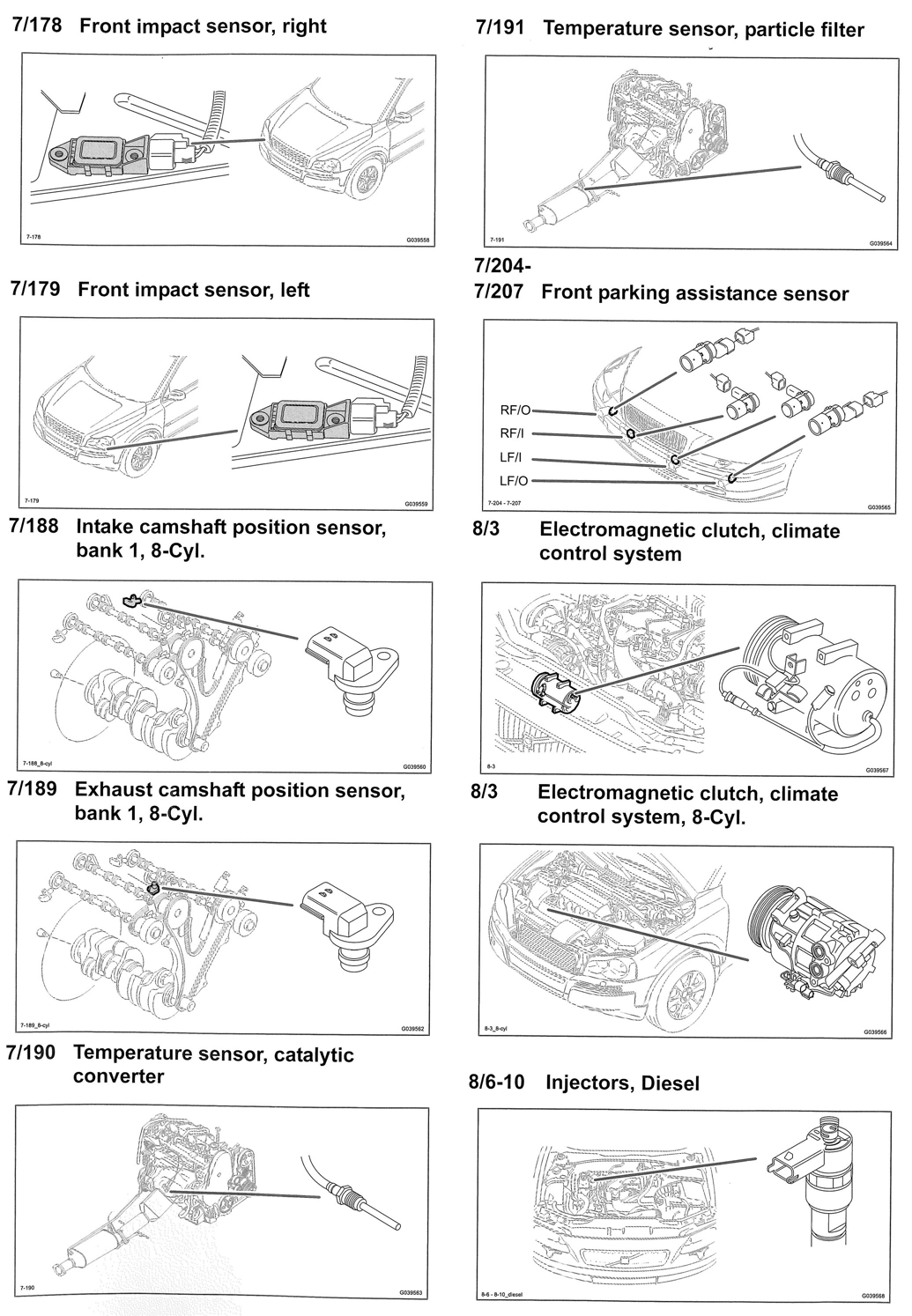

Fig 33: Components 7/178 To 8/6-10
G00475700Courtesy of VOLVO CARS OF NORTH AMERICA.

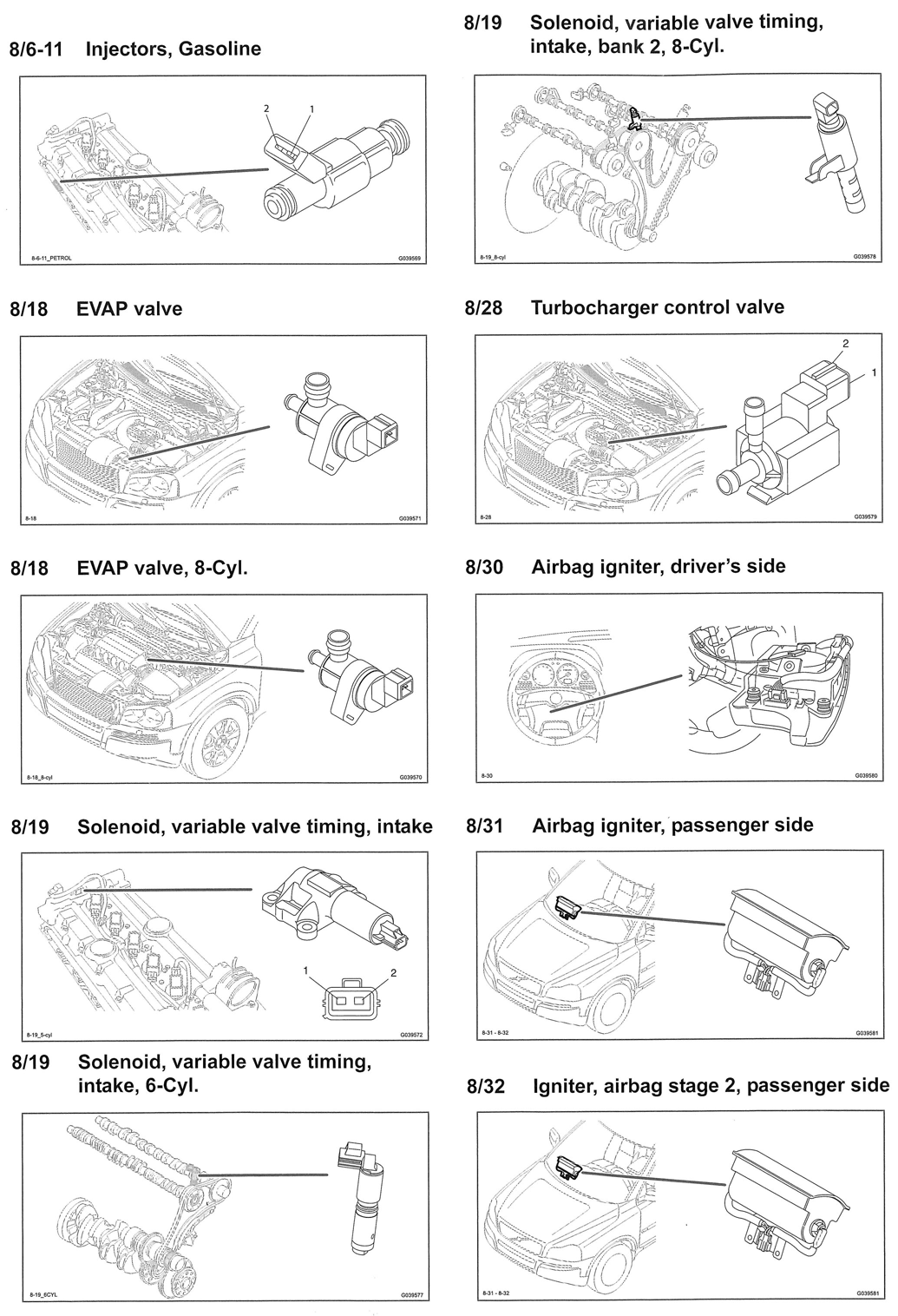

Fig 34: Components 8/6-11 To 8/32
G00479554Courtesy of VOLVO CARS OF NORTH AMERICA.

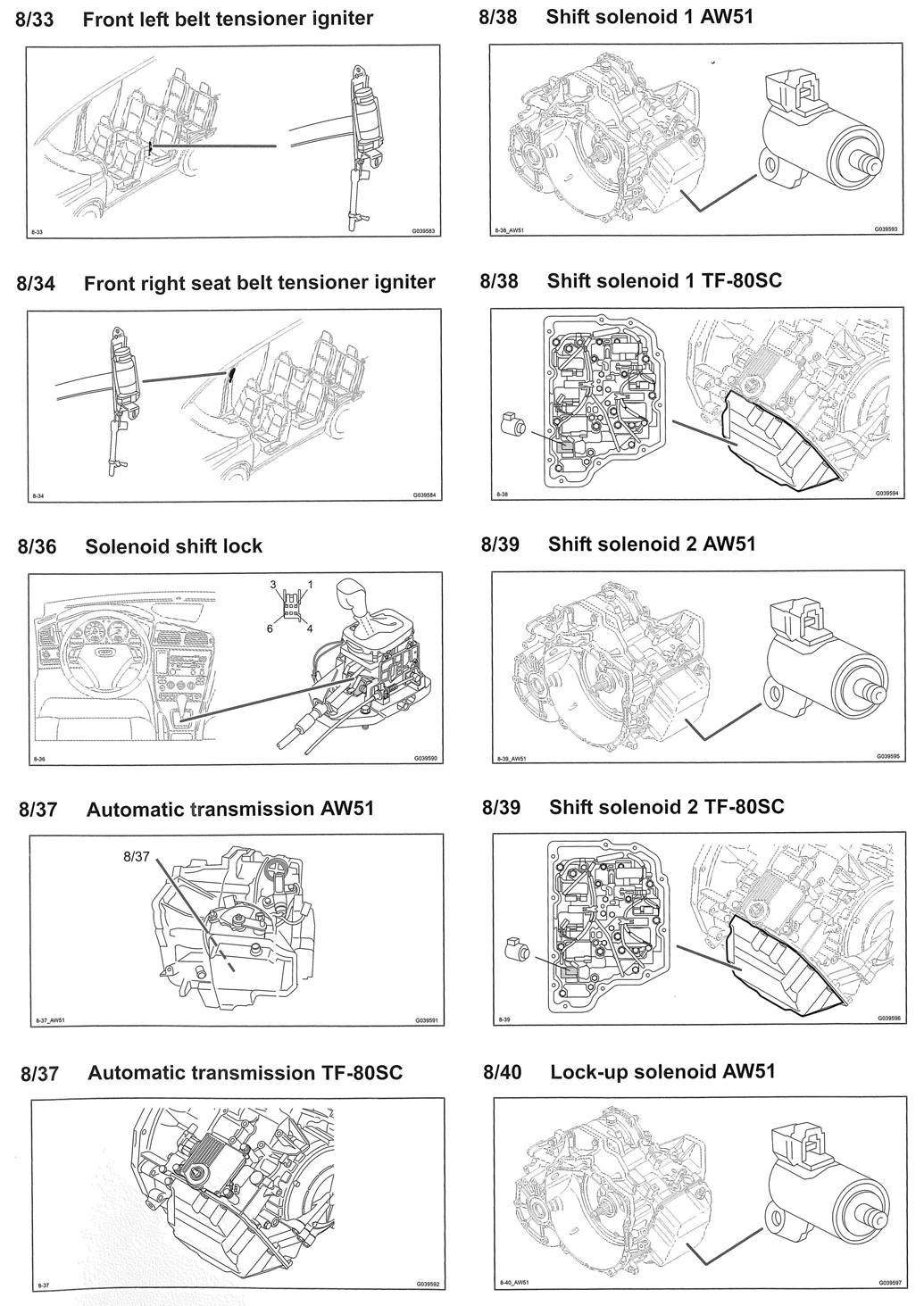

Fig 35: Components 8/33 To 8/40
G00479555Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 36: Components 8/40 To 8/64
G00479556Courtesy of VOLVO CARS OF NORTH AMERICA.

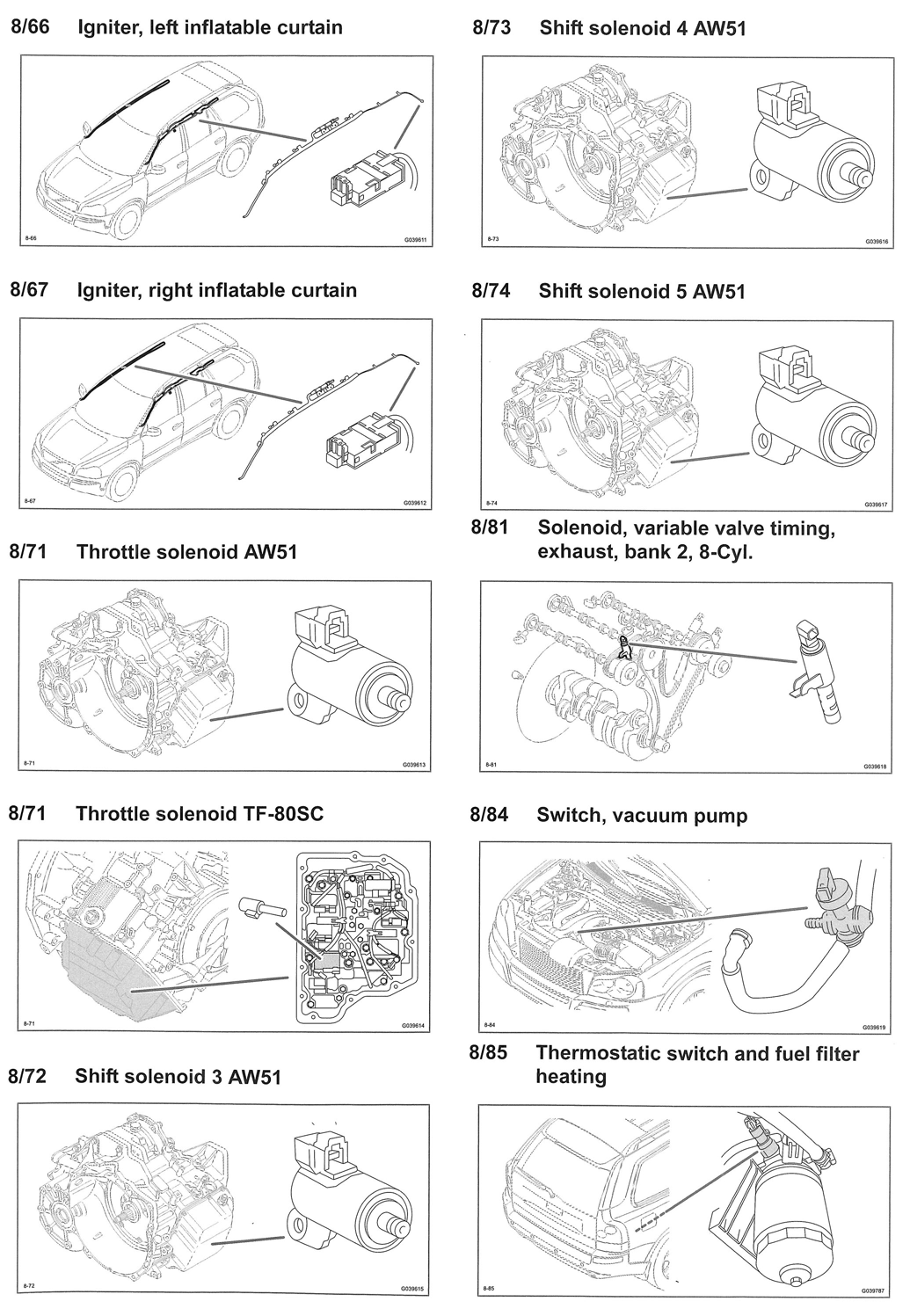

Fig 37: Components 8/66 To 8/85
G00479557Courtesy of VOLVO CARS OF NORTH AMERICA.

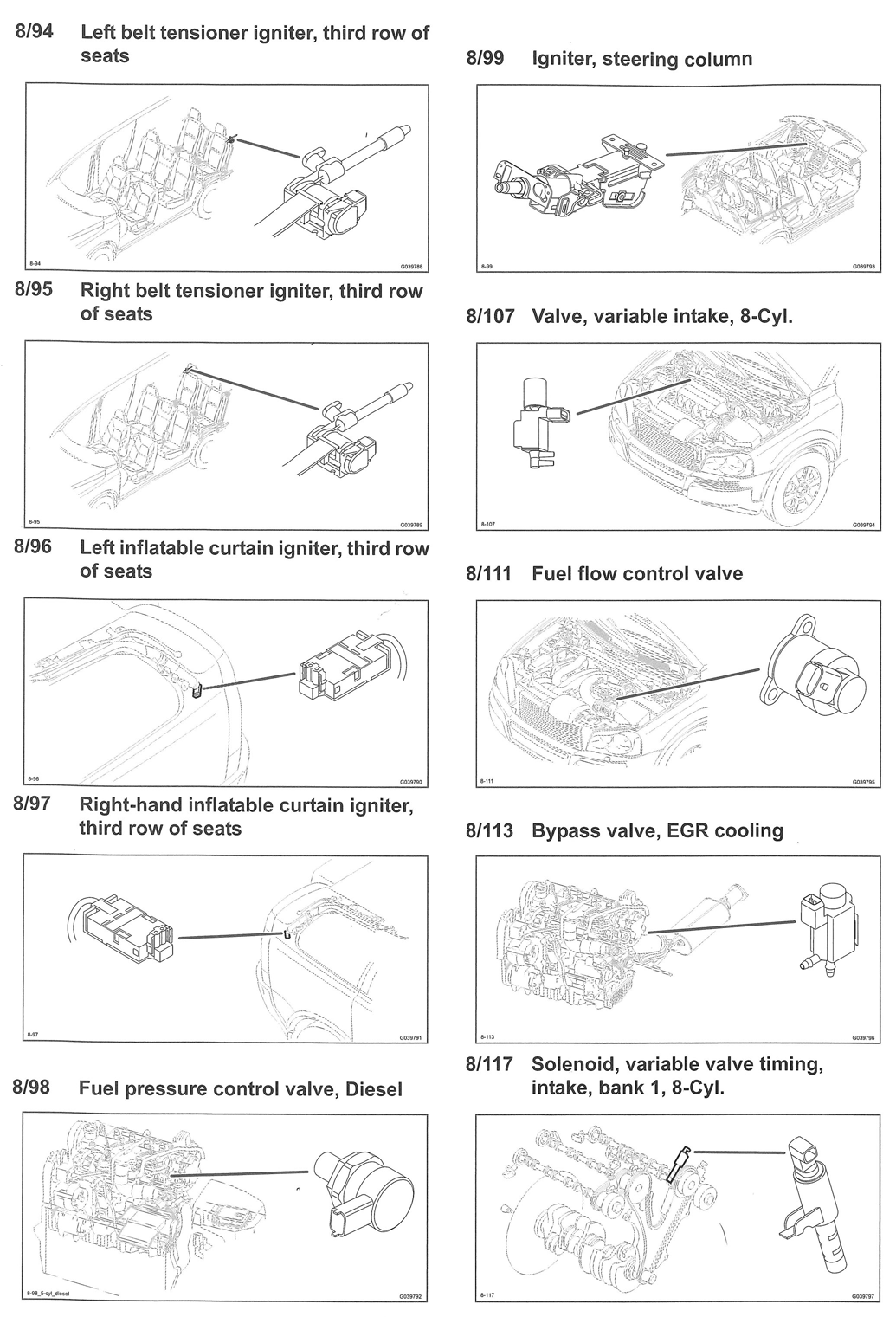

Fig 38: Components 8/94 To 8/117
G00479558Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 39: Components 8/118 To 8/144
G00479559Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 40: Components 16/5 To 16/50
G00479562Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 41: Components 16/54 To 16/65
G00479563Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 42: Components 16/69 To 16/108
G00479564Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 43: Components 16/109 To 17/13
G00479565Courtesy of VOLVO CARS OF NORTH AMERICA.

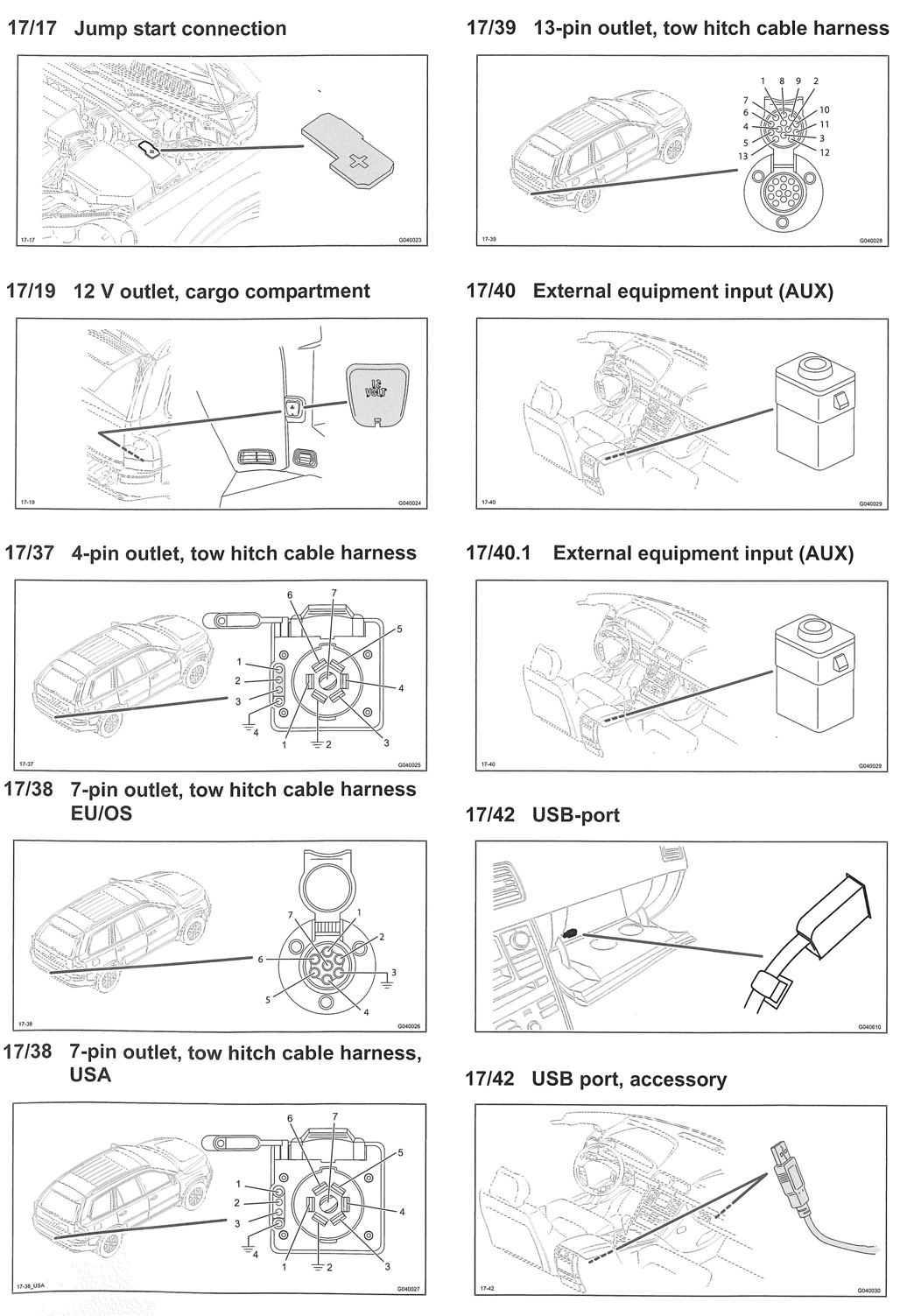

Fig 44: Components 17/17 To 17/42
G00479581Courtesy of VOLVO CARS OF NORTH AMERICA.

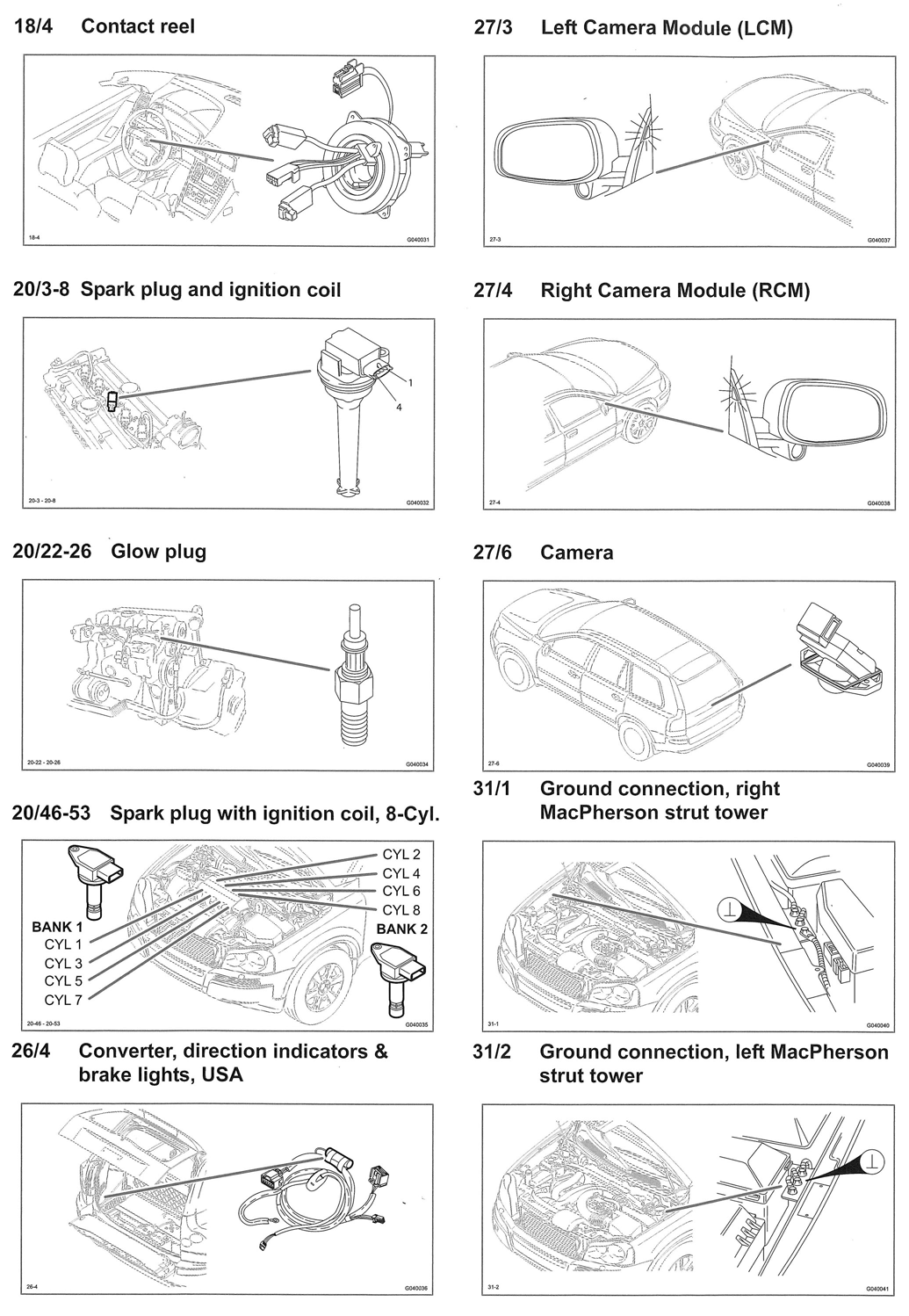

Fig 45: Components 18/4 To 31/2
G00479566Courtesy of VOLVO CARS OF NORTH AMERICA.

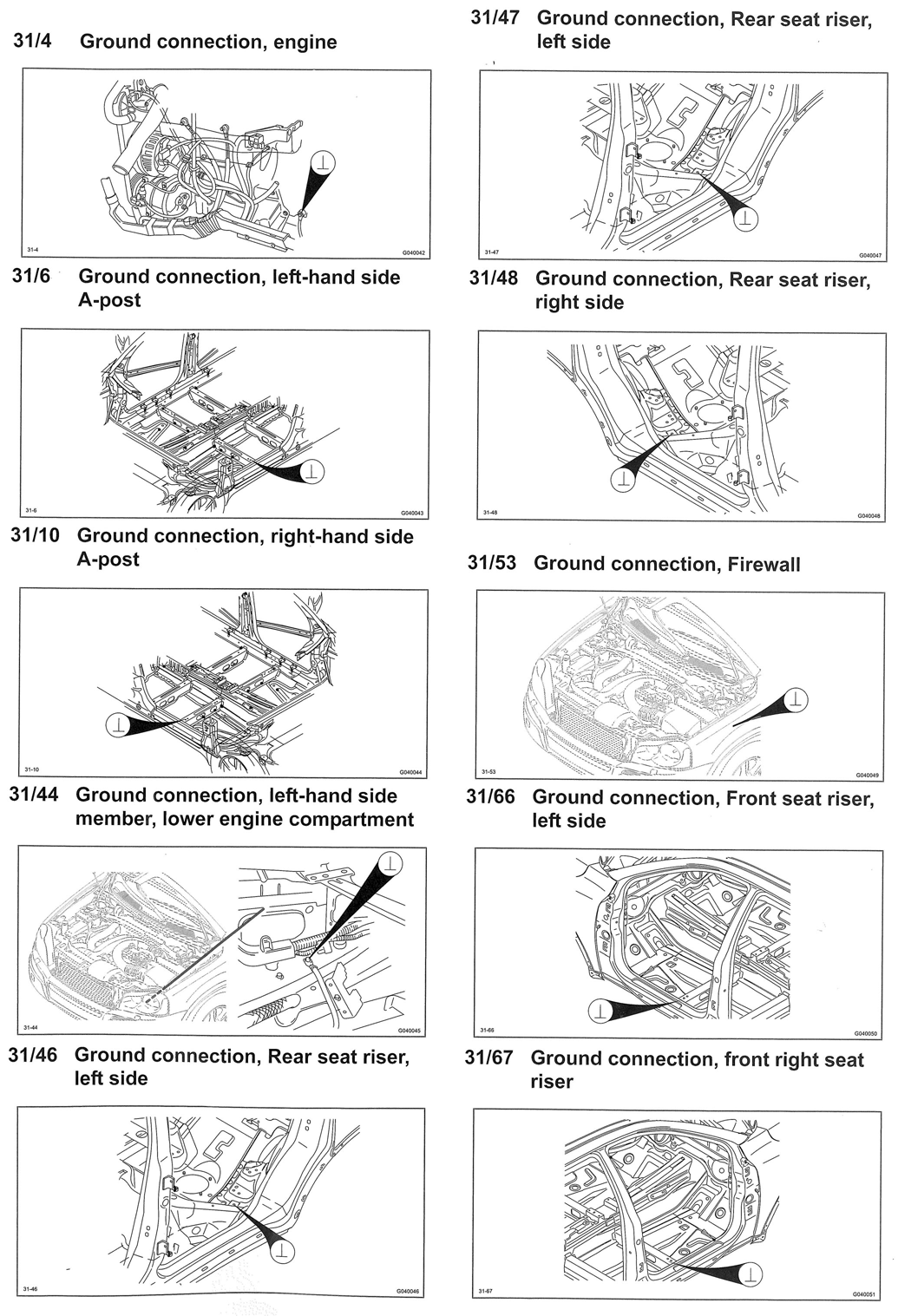

Fig 46: Components 31/4 To 31/67
G00479567Courtesy of VOLVO CARS OF NORTH AMERICA.

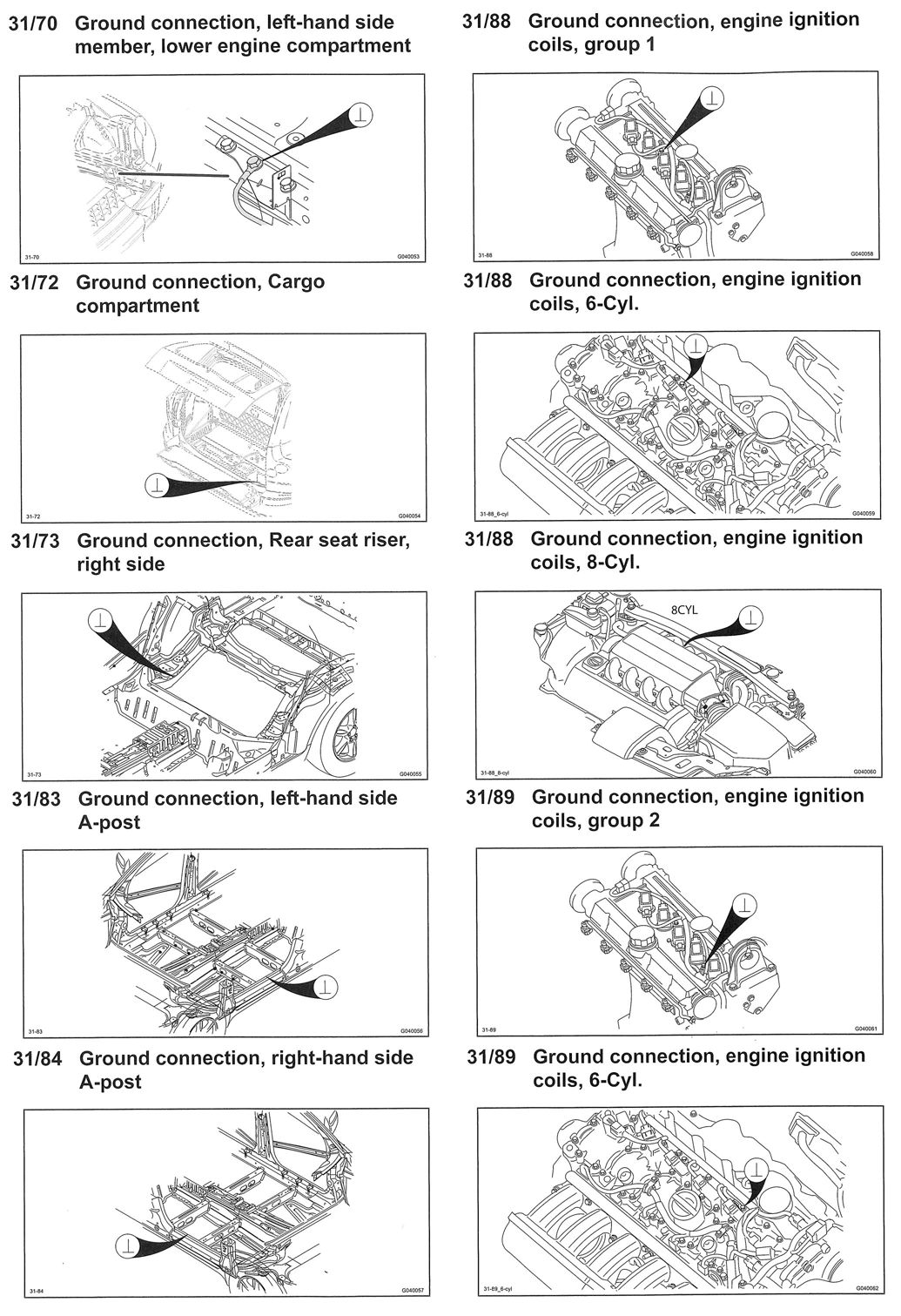

Fig 47: Components 31/70 To 31/89
G00479568Courtesy of VOLVO CARS OF NORTH AMERICA.

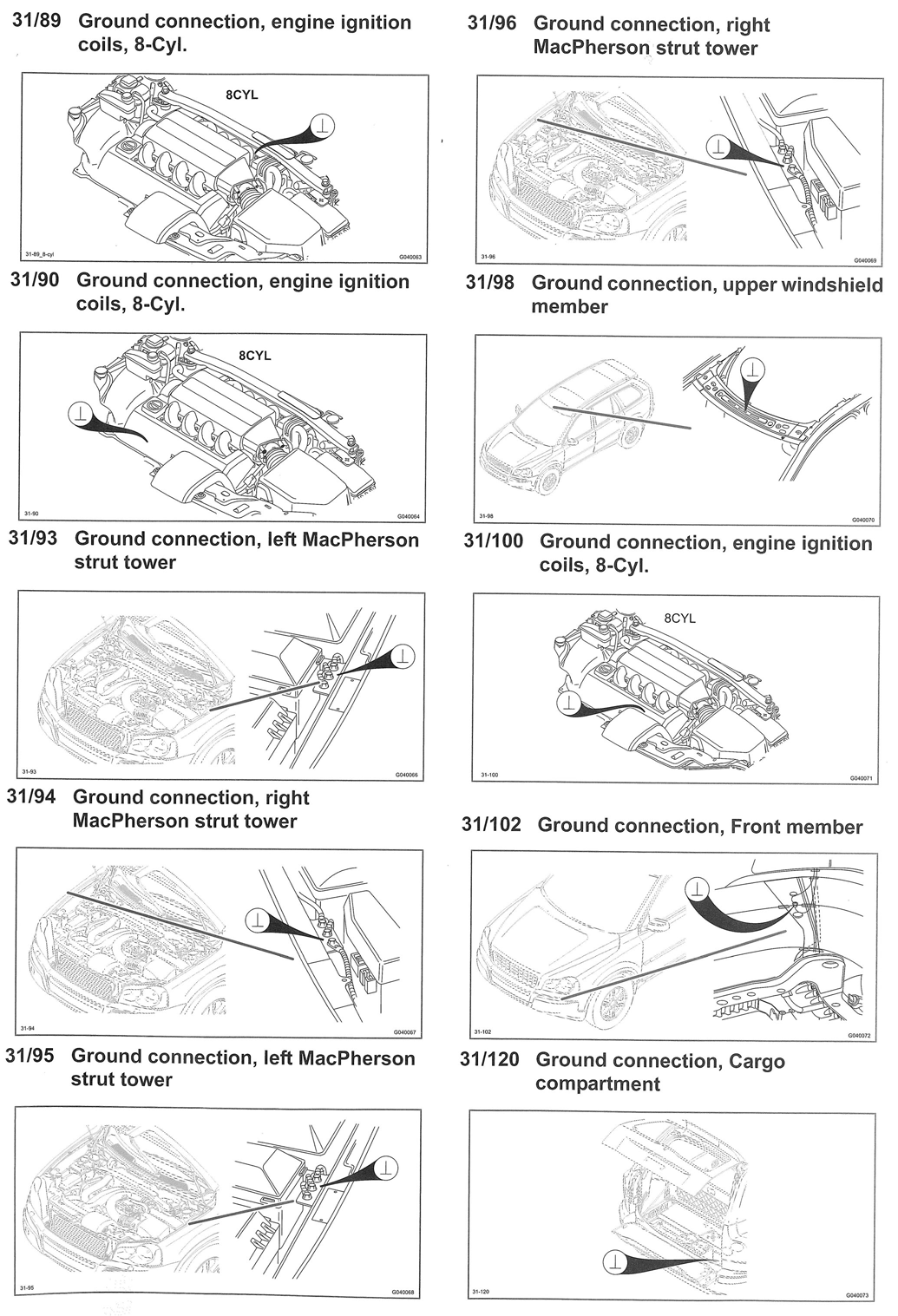

Fig 48: Components 31/89 To 31/120
G00479569Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 49: Components 31/121 To 54/11
G00479570Courtesy of VOLVO CARS OF NORTH AMERICA.

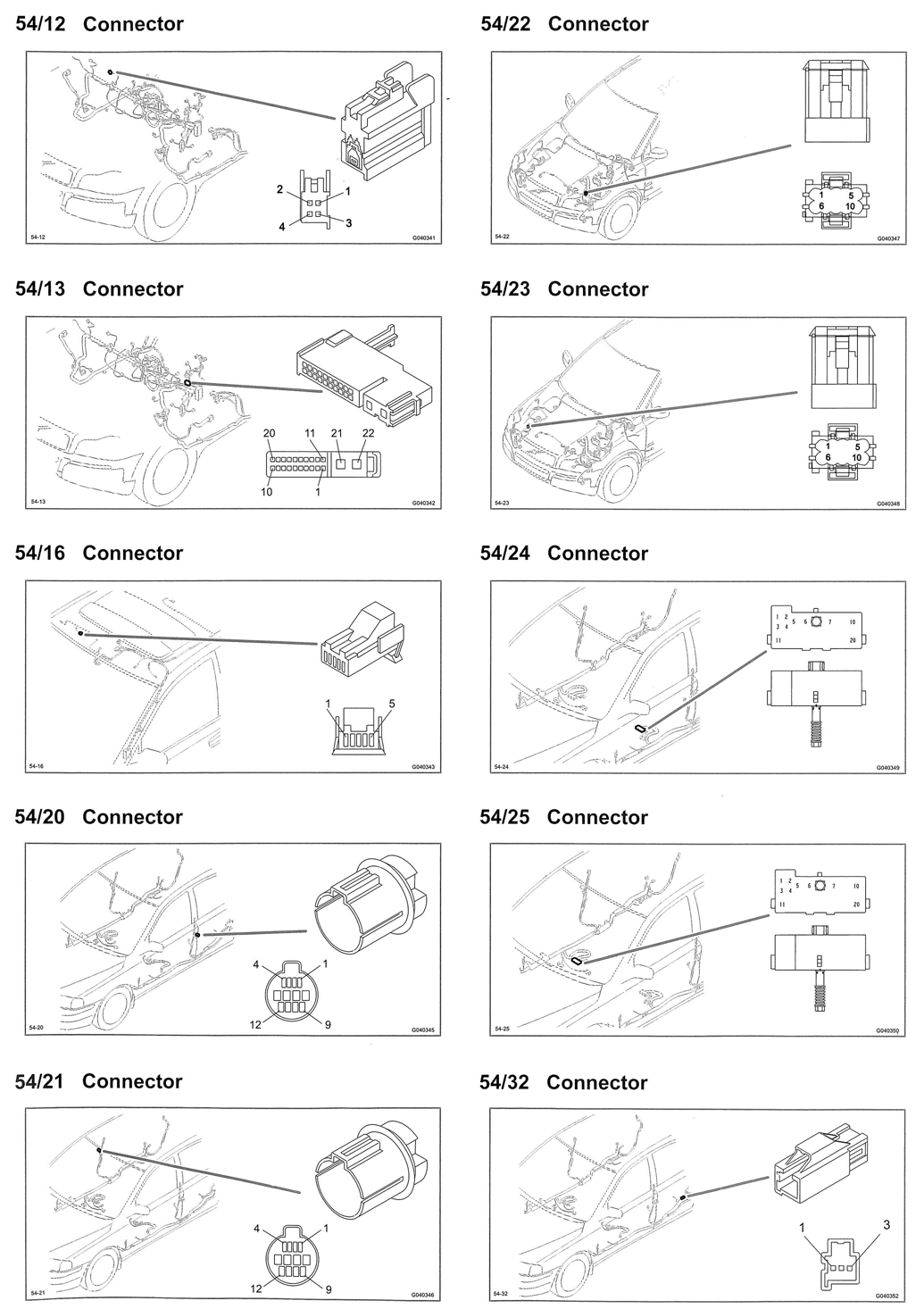

Fig 50: Components 54/12 To 54/32
G00479571Courtesy of VOLVO CARS OF NORTH AMERICA.

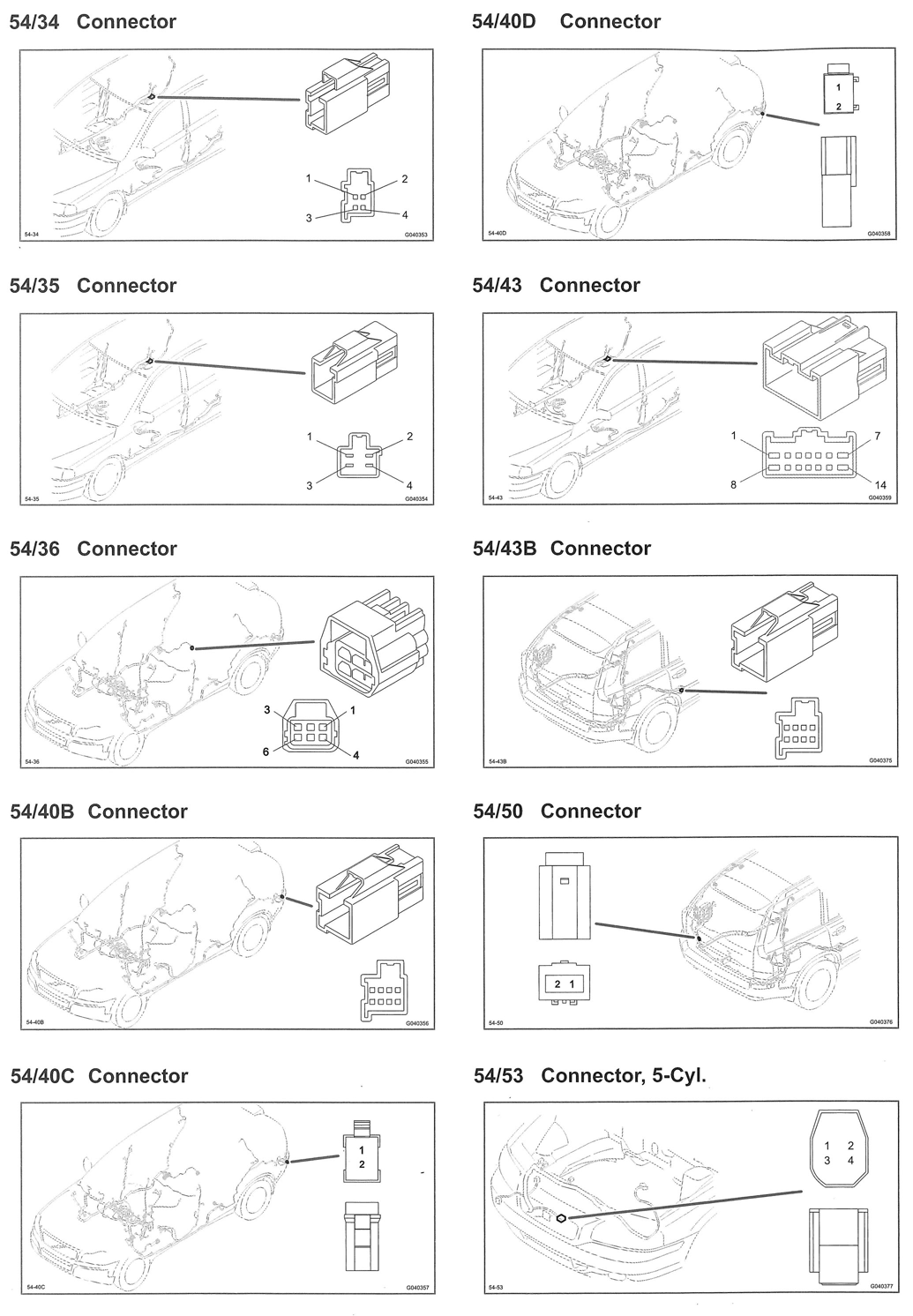

Fig 51: Components 54/34 To 54/53
G00479572Courtesy of VOLVO CARS OF NORTH AMERICA.

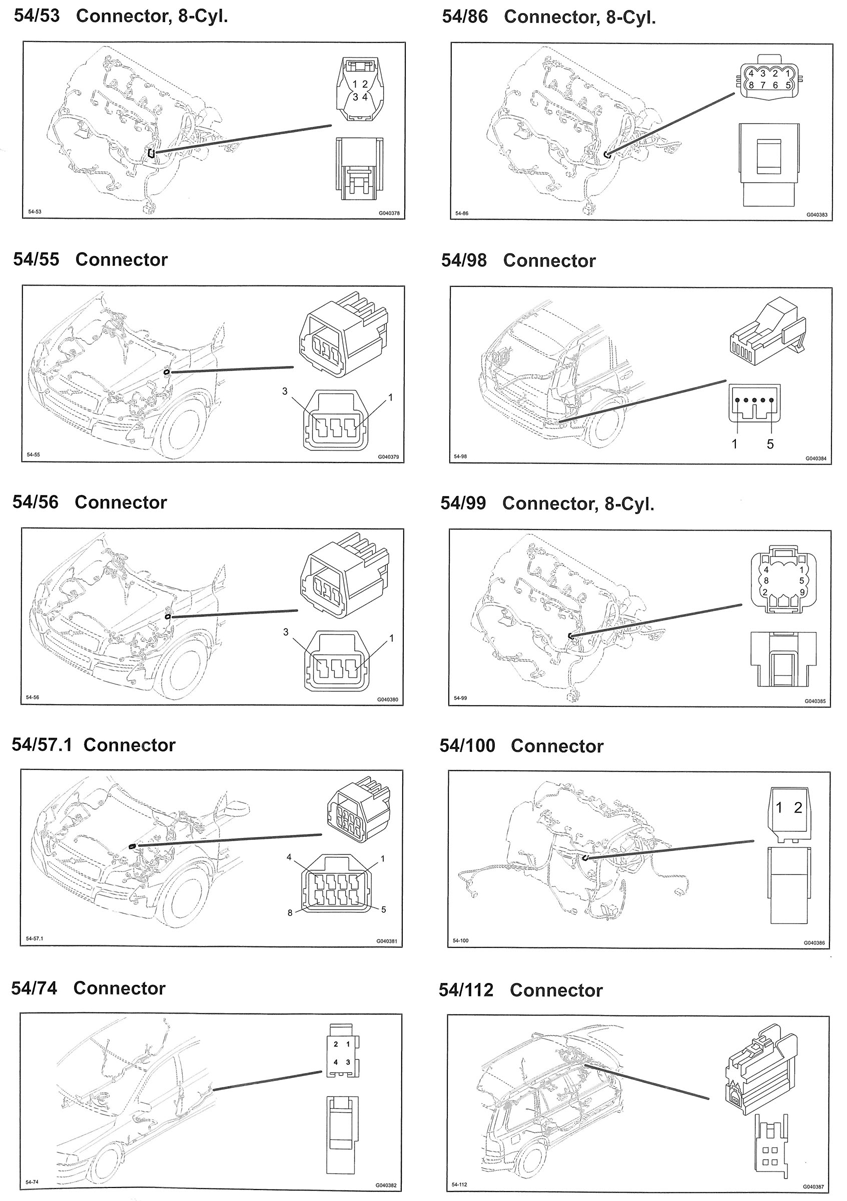

Fig 52: Components 54/53 To 54/112
G00479573Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 53: Components 11B/No. To 16/4
G00479576Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 54: Luggage Compartment
G00472324Courtesy of VOLVO CARS OF NORTH AMERICA.
Fig 55: Body Harness
G00472325Courtesy of VOLVO CARS OF NORTH AMERICA.

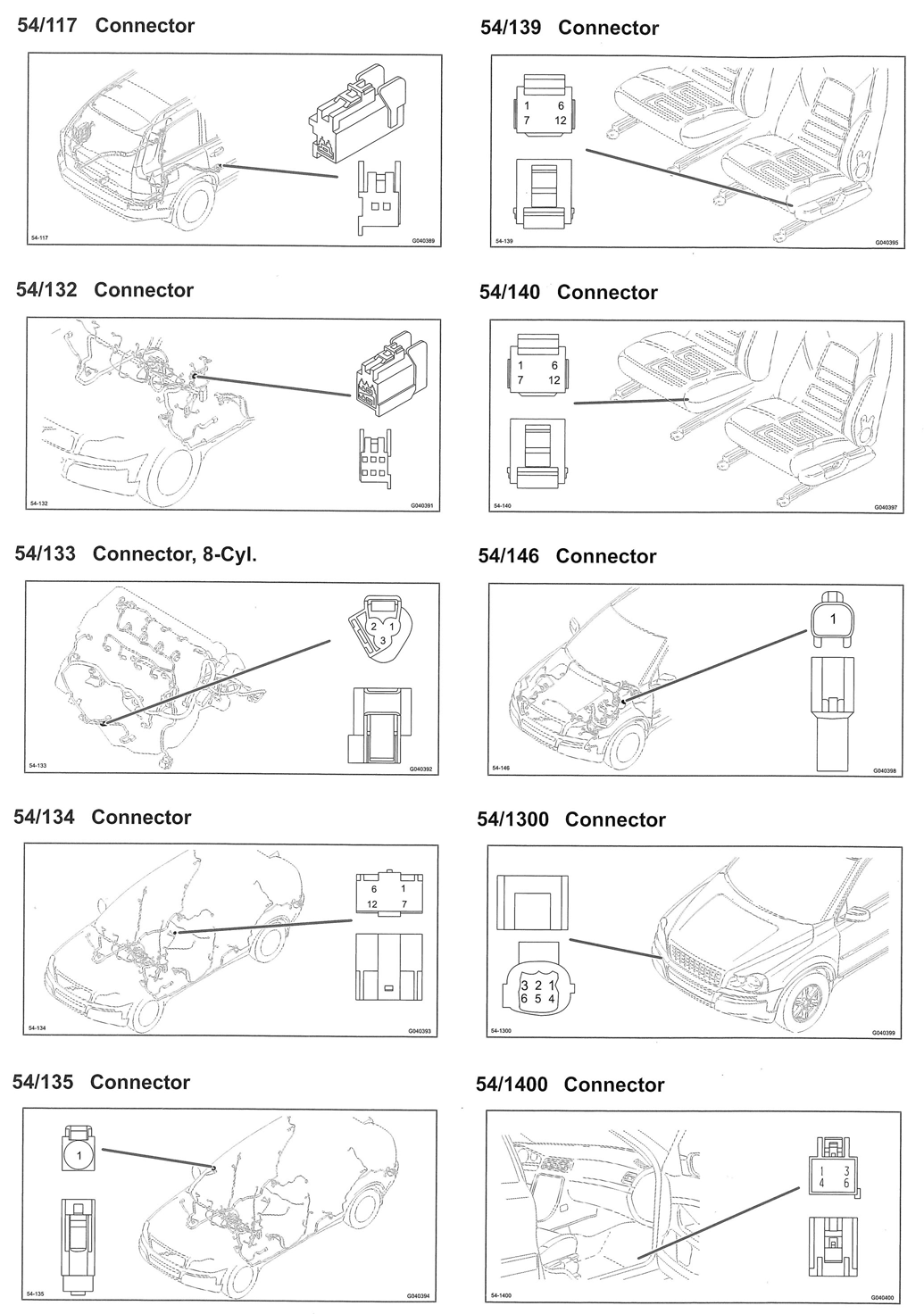

Fig 56: Components 54/117 To 54/1400
G00479574Courtesy of VOLVO CARS OF NORTH AMERICA.

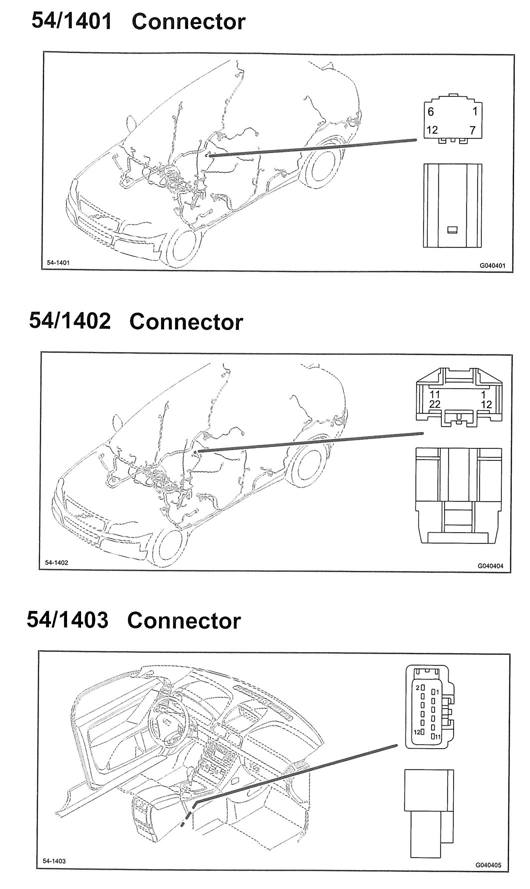

Fig 57: Components 54/1401 To 54/1403
G00479575Courtesy of VOLVO CARS OF NORTH AMERICA.

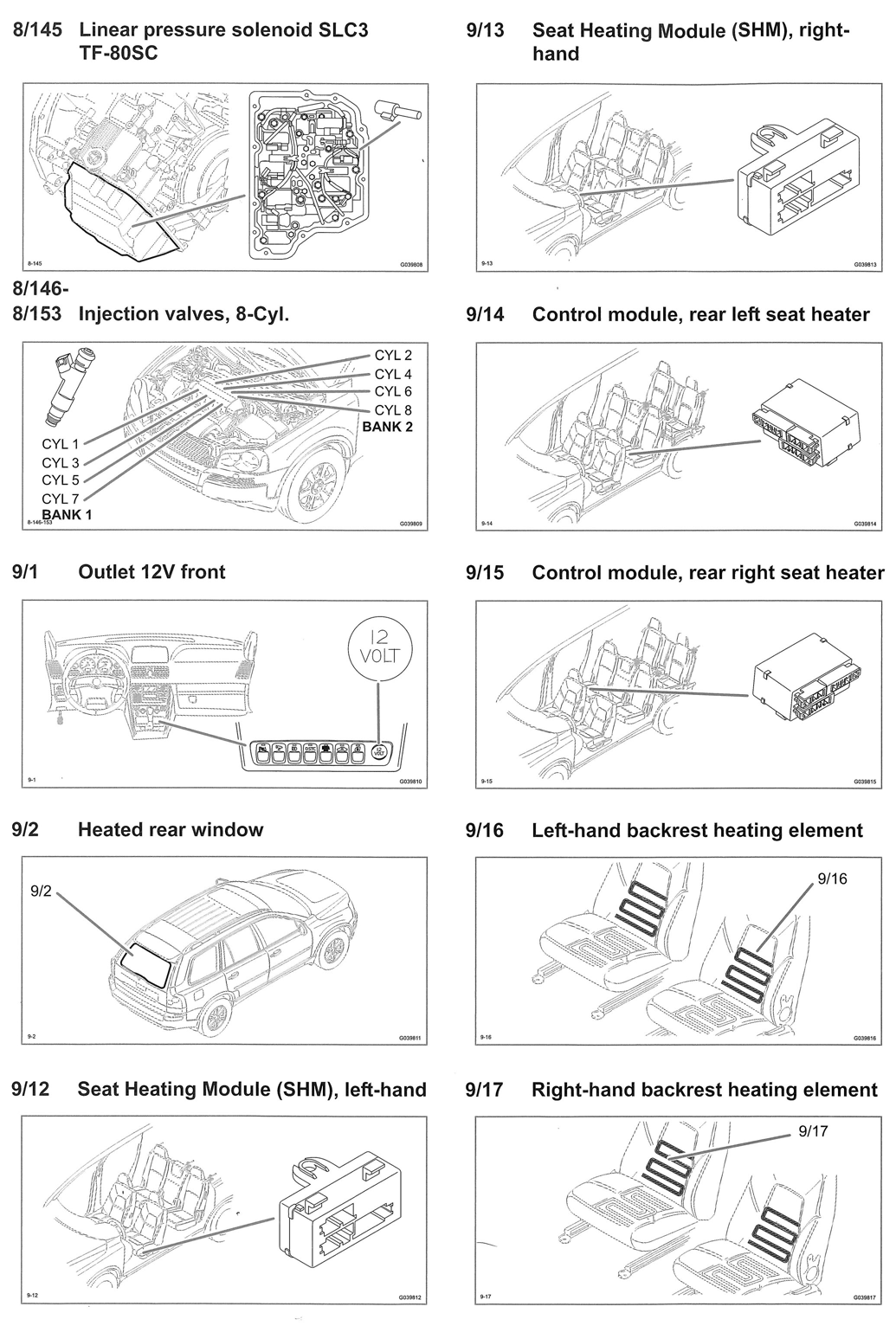

Fig 58: Components 8/145 To 9/17
G00479560Courtesy of VOLVO CARS OF NORTH AMERICA.

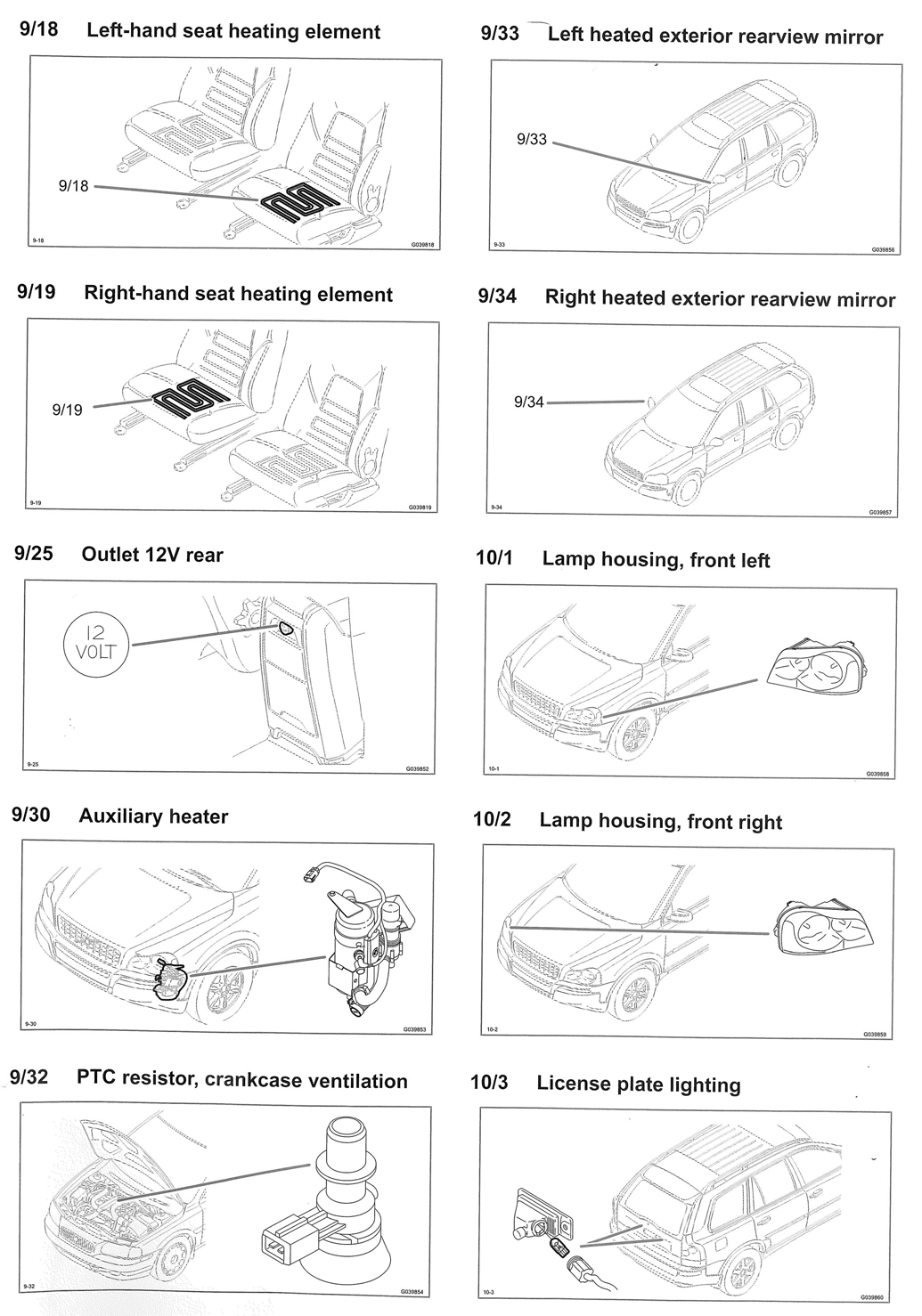

Fig 59: Components 9/18 To 10/3
G00479561Courtesy of VOLVO CARS OF NORTH AMERICA.
