Body Side Inner

Welding body components; see WELDING, GENERAL .

Remove the following items:

• side section, exposing. See SIDE SECTION, EXPOSING
• rear section, exposing. See REAR SECTION, EXPOSING (2007-2009)or REAR SECTION, EXPOSING (2010-2012) .
• B-pillar. See B-POST

Determine the extent of the damage on the body side. See BODY SIDE .

Determine the extent of the damage on the rear section. See REAR SECTION .

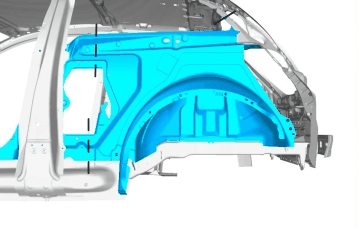

Fig 1: Body Side Inner Section Cut Lines

Courtesy of VOLVO CARS CORPORATION

Fig 2: Body Side Inner Section Weld Locations (1 Of 2)

Courtesy of VOLVO CARS CORPORATION

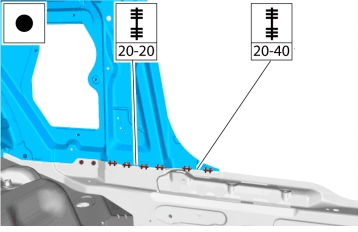

Fig 3: Body Side Inner Section Weld Locations (2 Of 2)

Courtesy of VOLVO CARS CORPORATION

Seal; see BODY SEAL, SEALING DIAGRAM .

Rustproof; see RUSTPROOFING .
