MAG Welding

Punch replacement part for plug welding.

Select size of hole for plug welding according to the following panel thicknesses:

8 mm for thicknesses less than 2.5 mm

10 mm or more for thicknesses above 2.5 mm.

Courtesy of VOLVO CARS CORPORATION

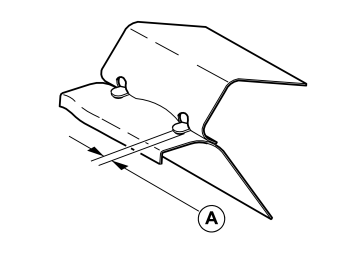

Test weld several test pieces. Break the panels apart and measure the size of the welding lens diameter (A); see illustration above.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use welding primer on all internal flanges.

Add filling primer if there is grinding damage.

CAUTION:

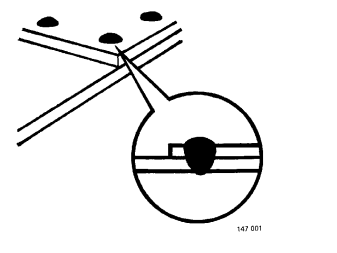

Make sure that the spot welds take properly on both panels.

Courtesy of VOLVO CARS CORPORATION

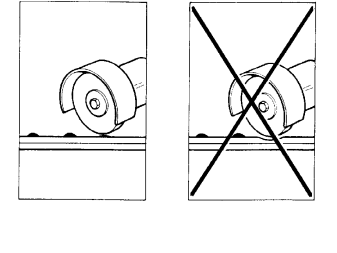

Grind down the plug weld.

CAUTION:

Only grind welds, not the adjacent panel.
