Lower Torque Rod: Removal

NOTE:

Removal steps in this procedure may contain installation details.

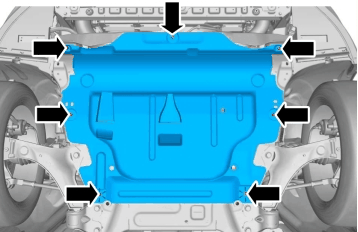

Fig 1: Identifying Splash Panel Screws
GLL155090Courtesy of VOLVO CARS CORPORATION

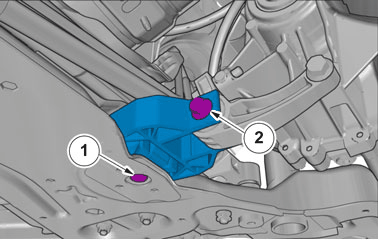

Fig 2: Removing/Installing Torque Rod
GLL176602Courtesy of VOLVO CARS CORPORATION

Remove the following items:

  1. Torque:  M12

    80 Nm

  2. Torque:  M12

    80 Nm
