Signal Specification

Connecting the breakout box and checking the ground terminals

Before taking readings, the breakout box and ground terminal must be checked.

see CHECKING THE VOLTAGE / GROUND TERMINAL

U= DC voltage in volts (V) UAC = AC voltage in volts (V)
Ubat = Battery voltage (V) f = Frequency in Hertz (Hz)
Ulow = Voltage approximately 0 V t = Time in seconds

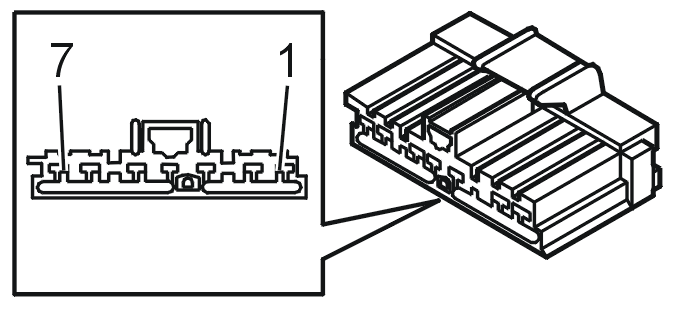

Fig 1: Identifying Ground Terminals
GLL141034Courtesy of VOLVO CARS OF NORTH AMERICA.
SIGNAL TABLE CONNECTOR A

Breakout box terminal  Control module terminal  Signal type  Ignition on
Not active / Active 		 Ignition on
Not active / Active 		 Other
  #A1 Power supply U = Ubat U = Ubat
  #A2 Motor 1+ U = Ulow / U = Ubat U = Ulow / U = Ubat Regulates the front-rear adjustment of the seat.
  #A3 Motor 2+ U = Ulow / U = Ubat U = Ulow / U = Ubat Regulates the backrest rake.
  #A4 Motor 3+ U = Ulow / U = Ubat U = Ulow / U = Ubat Regulates the height of the seat.
  #A5 Motor 4+ U = Ulow / U = Ubat U = Ulow / U = Ubat Regulates the angle of the front edge of the seat.
  #A6 Motor -, common U = Ulow / U = Ubat U = Ulow / U = Ubat M1-, M2-, M3-, M4-
  #A7 Ground Ulow Ulow
Fig 2: Identifying M2D Control Module (FORTV Executive. Rear Seat Entertainment, Generation 3.1/3.2, Premier TV Receiver) Connector
GLL104056Courtesy of VOLVO CARS OF NORTH AMERICA.
SIGNAL TABLE, CONNECTOR B

Breakout box terminal  Control module terminal  Signal type  Ignition on
Not active / Active 		 Ignition on
Not active / Active 		 Other
#43 #B1 Signal supply, Extended X U = Ubat U = Ubat
#44 #B2 -
#45 #B3 Control module, communication cable (CAN L) 1.5 - 2.5 V 1.5 - 2.5 V
#46 #B4 Control module, communication cable (CAN H) 2.5 - 3.5 V 2.5 - 3.5 V
#47 #B5 -
#48 #B6 Ground Ulow Ulow
#49 #B7 Ground, Hall sensor 1 Ulow Ulow
#50 #B8 Ground, Hall sensor 2 Ulow Ulow
#51 #B9 Ground, Hall sensor 3 Ulow Ulow
#52 #B10 Ground, Hall sensor 4 Ulow Ulow
#53 #B11 Hall sensor 1 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 One pulse per engine revolution
High pulse value: Ubat
Low pulse value: 7.0 - 9.0 V (60 - 70 % of Ubat )
#54 #B12 Hall sensor 2 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 One pulse per engine revolution
High pulse value: Ubat
Low pulse value: 7.0 - 9.0 V (60 - 70 % of Ubat )
#55 #B13 Hall sensor 3 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 One pulse per engine revolution
High pulse value: Ubat
Low pulse value: 7.0 - 9.0 V (60 - 70 % of Ubat )
#56 #B14 Hall sensor 4 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 U = Ubat / A pulsed signal with duty = 50%
f <= 100 Hz		 One pulse per engine revolution
High pulse value: Ubat
Low pulse value: 7.0 - 9.0 V (60 - 70 % of Ubat )
