Explanation Of Dimensions

Fig 1: Identifying Measurement Dimensions

Courtesy of VOLVO CARS OF NORTH AMERICA.

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from one edge.

Symbol number 3 means that the measurement is from a cut mark.

Fig 2: Identifying Measuring Point Symbol

Courtesy of VOLVO CARS OF NORTH AMERICA.

Measurement is made from the bottom of the recess. See the figure.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

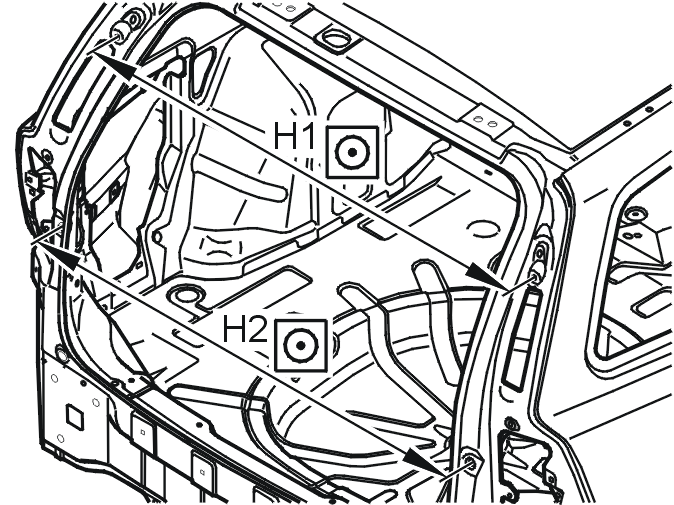

Fig 3: View Of Symbol Dimensions (1 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

H1 = 1, 111 mm

H2 = 1, 088 mm

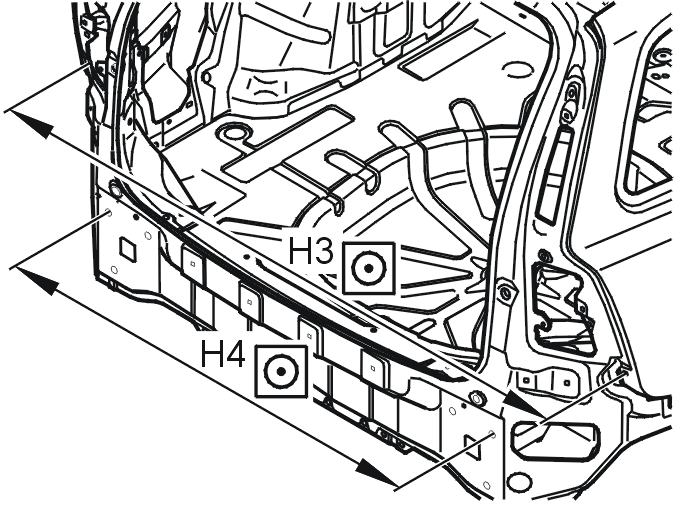

Fig 4: View Of Symbol Dimensions (2 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

H3 = 1, 488 mm

H4 = 1, 070 mm

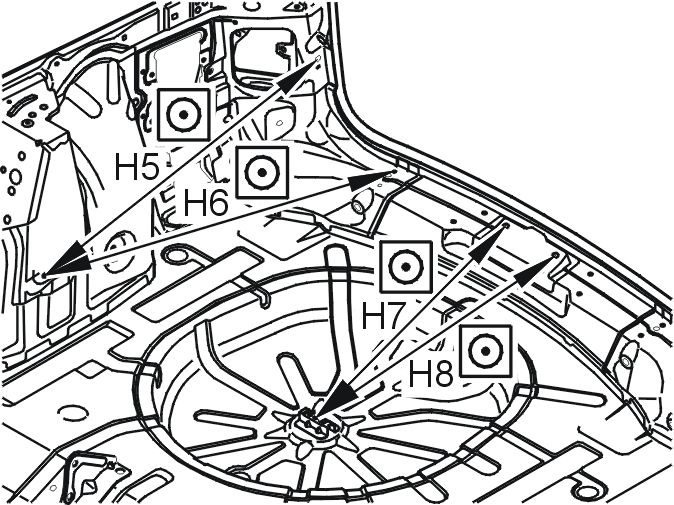

Fig 5: View Of Symbol Dimensions (3 of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

H5 = 805 mm

H6 = 862 mm

H7 = 564 mm

H8 = 579 mm
