Trunk Dimensions

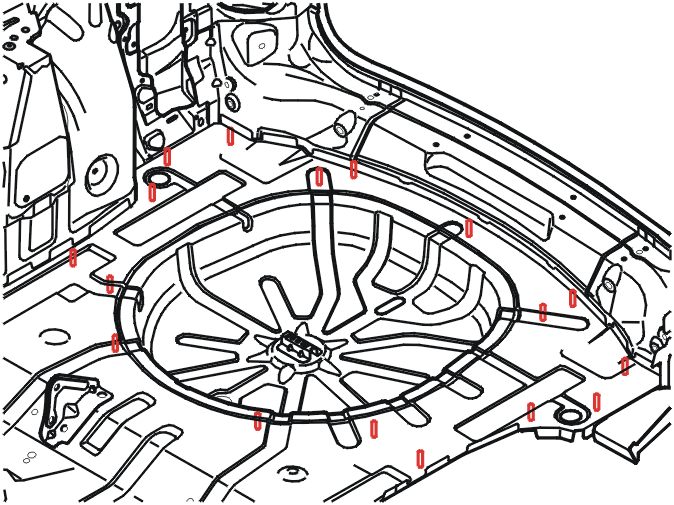

Fig 1: Identifying Trunk Measurement Dimensions

Courtesy of VOLVO CARS OF NORTH AMERICA.

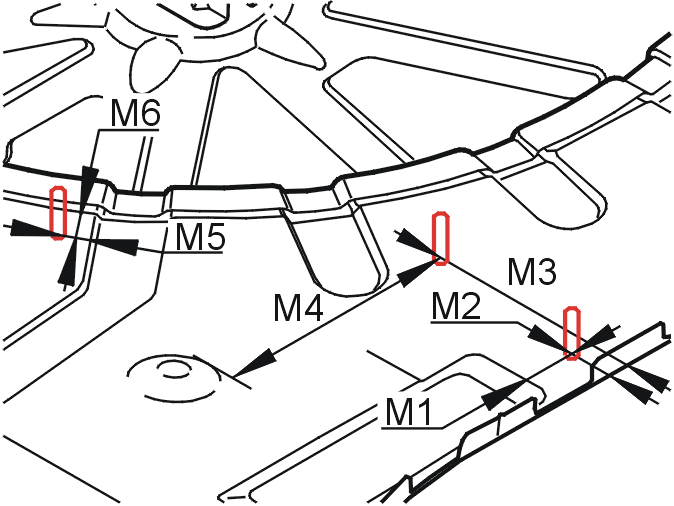

Fig 2: View Of Trunk Measurement Dimensions (1 of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

M1 = 50 mm

M2 = 34 mm

M3 = 179 mm

M4 = 180 mm

M5 = 14 mm

M6 = 14 mm

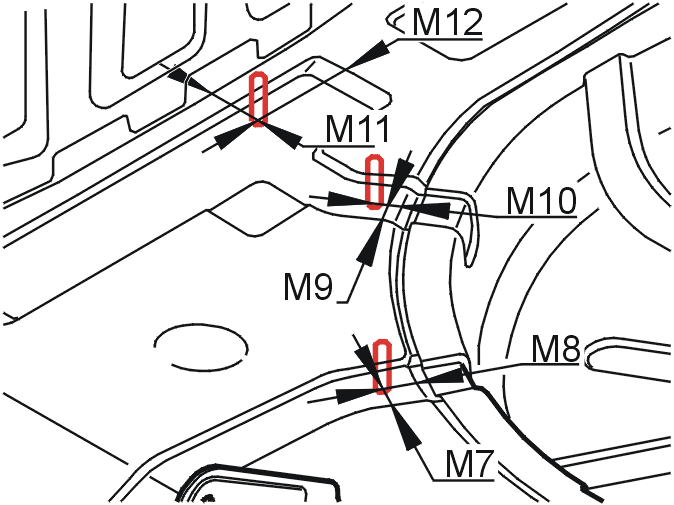

Fig 3: View Of Trunk Measurement Dimensions (2 of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

M7 = 17 mm

M8 = 15 mm

M9 = 15 mm

M10 = 10 mm

M11 = 36 mm

M12 = 72 mm

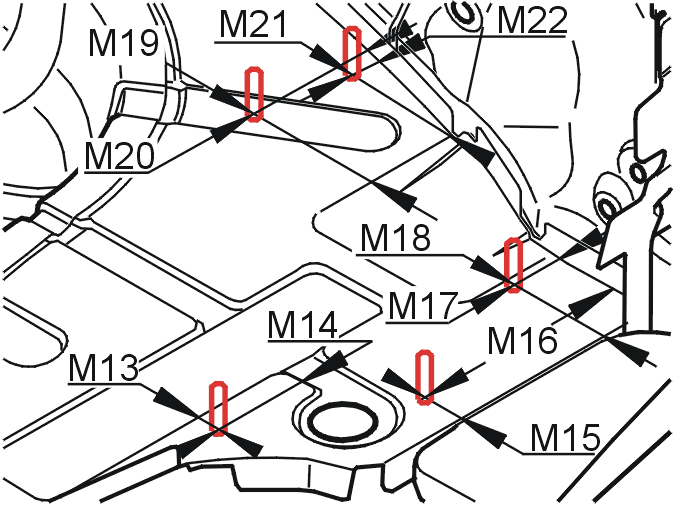

Fig 4: View Of Trunk Measurement Dimensions (3 of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

M13 = 20 mm

M14 = 80 mm

M15 = 35 mm

M16 = 163 mm

M17 = 35 mm

M18 = 65 mm

M19 = 108 mm

M20 = 99 mm

M21 = 105 mm

M22 = 23 mm

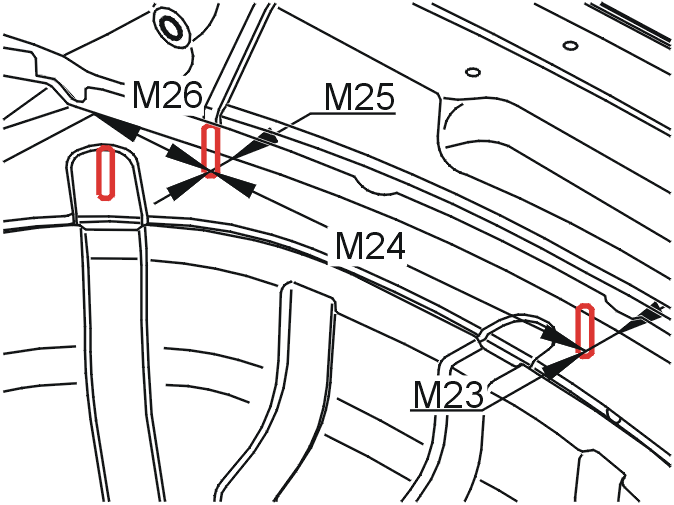

Fig 5: View Of Trunk Measurement Dimensions (4 of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

M23 = 23 mm

M24 = 310 mm

M25 = 23 mm

M26 = 105 mm

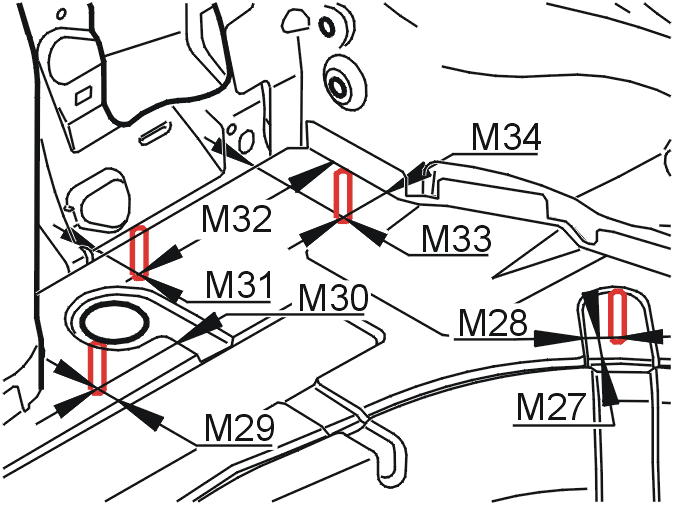

Fig 6: View Of Trunk Measurement Dimensions (5 of 5)

Courtesy of VOLVO CARS OF NORTH AMERICA.

M27 = 15 mm

M28 = 22 mm

M29 = 17 mm

M30 = 80 mm

M31 = 33 mm

M32 = 176 mm

M33 = 65 mm

M34 = 33 mm
