Multimedia Module (Mmm) [2009-2011]: Design: Screen

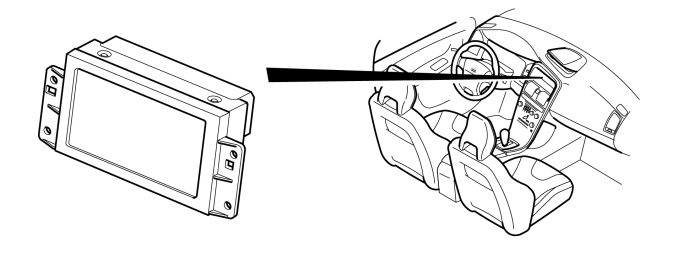

S80/V70/XC70

Courtesy of VOLVO CARS CORPORATION

XC60

Courtesy of VOLVO CARS CORPORATION

The high level display front (HLDF) is used to present information such as system settings and navigation. The multimedia module (MMM) sends RGB signals to the high level display front (HLDF).

The menu system of the screen can be navigated with the navigation buttons on the back of the steering wheel or via the remote control for the screen. The remote control receiver, the IR eye, is located on the infotainment control module (ICM).

For XC60 the IR-eye is located in keypad on the center console.

For further reference, see appropriate Design and Function information for the High level display front (HLDF).
