Network Design: General
S80/V70/XC70/XC60 (from and including structure week 200946)
XC60 (up to structure week 200946)

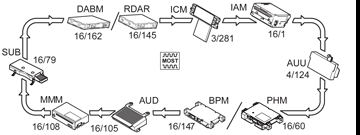

The MOST network is an optical network where all control modules are connected in a ring.
All messages within the MOST-net pass in one and the same direction from Infotainment Control Module (ICM) to Accessory USB Unit (AUU) (applies to S80/V70/XC70) respective Remote digital audio receiver (RDAR)/Digital Audio Broadcast Module (DABM) (applies to XC60).
In a fiber optic network, light pulses are transmitted instead of electrical signals. The light pulses are interpreted in the same way as the electrical signals on the CAN network.
The MOST network uses the master-slave concept. This means that a master control module, infotainment control module (ICM) has overall control of communication on the MOST network.
The fiber optic cable is made of plastic. Communication is using red light on a wavelength of 650 nm.
