Fuel Pump And Level Sensor Unit: Removing: Notes

Remove the fuel tank. See FUEL TANK .

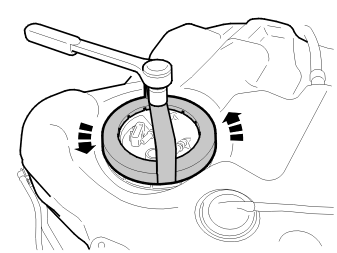

Fig 1: Removing the Threaded Ring With Tool (9997111)
GLL117504Courtesy of VOLVO CARS CORPORATION
NOTE: Ensure that the lever on the level sensor is not damaged when removing the pump.

Remove:
