Ignition Coil (Turbo): Removal

NOTE:

Removal steps in this procedure may contain installation details.

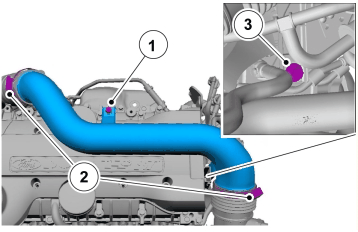

Fig 1: Identifying Air Intake Hose And Fasteners

Courtesy of VOLVO CARS CORPORATION

Torque: M7

17 Nm

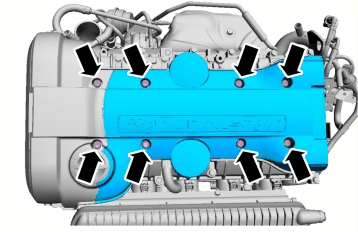

Fig 2: Identifying Engine Cover And Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

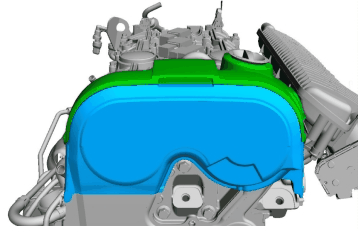

Fig 3: Identifying Timing Case Cover

Courtesy of VOLVO CARS CORPORATION

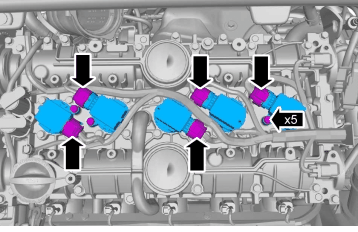

Fig 4: Identifying Ignition Coils, Connectors And Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm
