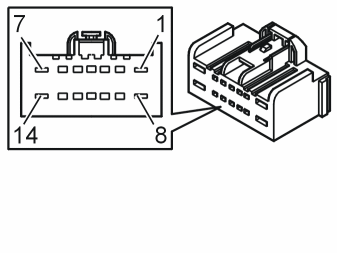

Connector A
SIGNAL TABLE CONNECTOR A
| Breakout box terminal | Control module terminal | Signal type | Ignition on | Miscellaneous |
|---|---|---|---|---|
| #1 | #A1 | Power supply | U = Ubat | - |
| #2 | #A2 | Control signal ring break | - | - |
| #3 | #A3 | Loudspeaker right rear door (+) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #4 | #A4 | Loudspeaker right front door (+) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #5 | #A5 | Loudspeaker left front door (+) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #6 | #A6 | Loudspeaker left rear door (+) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #7 | #A7 | AUX input, left channel (+) | - | - |
| #8 | #A8 | Ground | U=Ulow | - |
| #9 | #A9 | AUX input, right channel (+) | - | - |
| #10 | #A10 | Loudspeaker right rear door (-) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #11 | #A11 | Loudspeaker right front door (-) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #12 | #A12 | Loudspeaker left front door (-) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #13 | #A13 | Loudspeaker left rear door (-) | Analog output signal when the loudspeaker is in use | 0 - 19 V depending on the output from the Integrated Audio Module (IAM) (only Performance). Impedance loudspeaker = 4 Ω |
| #14 | #A14 | AUX-input, ground | - | - |
