Connector B

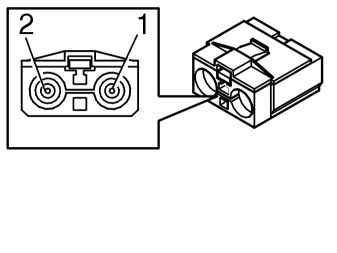

Fig 1: Identifying 2-Pin Connector
GLL128625Courtesy of VOLVO CARS CORPORATION
SIGNAL TABLE, CONNECTOR B

Control module terminal  Signal type  Miscellaneous
#B1 Antenna signal Input signal FM Subantenna
Phantom supply of antenna amplifier (11.5 ± 0.5 V at 13.5 V battery voltage)
#B2 Antenna signal Input signal AM/FM Main antenna
