Signal Specification

All the values given below are between the terminals stated in column 1 and terminal #1 in column 2 (signal ground). This applies unless otherwise indicated in brackets.

NOTE: It is important to connect the breakout box and check the ground terminals before taking readings.

There may be several connections and connectors between the control module and components.

U=	DC voltage in volts (V)	U_AC =	AC voltage in volts (V)
U_bat =	Battery voltage (V)	f =	Frequency in Hertz (Hz)
U_low =	Voltage approximately 0 V	t =	Time in seconds
PWM =	Pulse width modulated signal as a %	-	-

Fig 1: Identifying Connector Terminals

GLL104035

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE CONNECTOR A, PHONE MODULE (PHM)

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
#1	#A1	Diagnostic signal for switch ON CALL and SOS	U = 2 - 5 V	U = 2 - 5 V	Only Volvo On Call
#2	#A2	Input signal from switch ON CALL and SOS	ON CALL pressed in U= 2.6 V, SOS pressed in U= 2 V, otherwise U= 5 V	ON CALL pressed in U= 2.6 V, SOS pressed in U= 2 V, otherwise U= 5 V	Only Volvo On Call
#3	#A3	Voltage feed, lighting SOS-switch	U= 7 V	U= 7 V	Only Volvo On Call
#4	#A4	Voltage feed, lighting ON CALL-switch	U= 7 V	U= 7 V	Only Volvo On Call
#5	#A5	+30-feed	U_bat	U_bat	-
#6	#A6	Power ground	U=U_low	U=U_low	-
#7	#A7	Handset, voltage feed	U_bat	U_bat	-
#8	#A8	Handset, cradle signal	U= 3.34 V when the handset is in use, U= 1.9 V when the handset is not in use.	U= 3.34 V when the handset is in use, U= 1.9 V when the handset is not in use.	-
#9	#A9	-	-	-	-
#10	#A10	-	-	-	-
#11	#A11	CAN (L)	Digital signal	Digital signal	-
#12	#A12	CAN (H)	Digital signal	Digital signal	-
#13	#A13	Signal ground, switch ON CALL and SOS	U_low	U_low	Only Volvo On Call
#14	#A14	Signal ground, auxiliary microphone	U_low	U_low	Only Volvo On Call
#15	#A15	auxiliary microphone	U= 5 V	U= 5 V	Only Volvo On Call
#16	#A16	-	-	-	-
#17	#A17	Impact cable from SRS	U= 12 V at activated SRS-component, otherwise U= 0 V	U= 12 V at activated SRS-component, otherwise U= 0 V	-
#18	#A18	Handset, ground	U_low	U_low	-
#19	#A19	Handset, microphone	Alternating voltage at sound in microphone	Alternating voltage at sound in microphone	Difficult to measure
#20	#A20	Handset, speaker	Alternating voltage at sound in speaker	Alternating voltage at sound in speaker	Difficult to measure
#21	#A21	-	-	-	-
#22	#A22	-	-	-	-

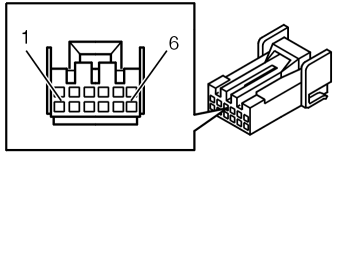

Fig 2: Identifying Signal Table, Connector B

GLL101506

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE CONNECTOR B, PHONE MODULE (PHM)

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
#21	#B1	Clock signal to SIM-card	Pound signal	Pound signal	-
#22	#B2	Signal ground, SIM-card	U_low	U_low	-
#23	#B3	Voltage feed, SIM-card	U=2.8 V	U=2.8 V	-
#24	#B4	Communication cable, SIM-card	Pulsed signal	Pulsed signal	-
#25	#B5	Control signal, SIM-card	Pulsed signal	Pulsed signal	-
#26	#B6	Diagnostic cable, SIM-card	U_low	U_low	-

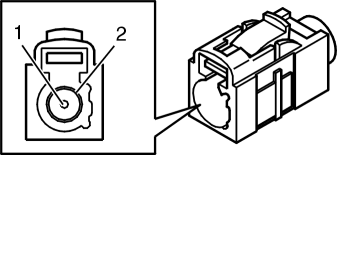

Fig 3: Identifying Signal Table, Connector C

GLL139875

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE CONNECTOR C, PHONE MODULE (PHM)

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
-	#C1	Telephone antenna	Antenna signal telephone	Antenna signal telephone	-
-	#C2	Antenna ground	U_low	U_low	-

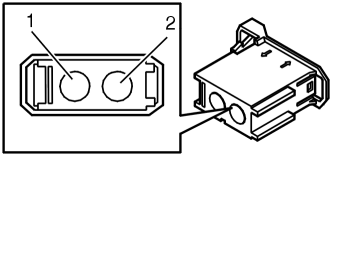

Fig 4: Identifying 2-Pin Connector

GLL108088

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE CONNECTOR D, PHONE MODULE (PHM)

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
-	#D1	MOST input signal	Optical input signal when the MOST network is activated	Optical input signal when the MOST network is activated	-
-	#D2	MOST signal	Optical output signal when the MOST network is activated	Optical output signal when the MOST network is activated	-

Fig 5: Identifying Signal Table, Connector B

GLL101506

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE CONNECTOR SIM-CARD HOLDER

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
#21	#1	Clock signal to SIM-card	Pound signal	Pound signal	-
#22	#2	Signal ground, SIM-card	U_low	U_low	-
#23	#3	Voltage feed, SIM-card	U= 2.8 V	U= 2.8 V	-
#24	#4	Communication cable, SIM-card	Pulsed signal	Pulsed signal	-
#25	#5	Control signal, SIM-card	Pulsed signal	Pulsed signal	-
#26	#6	Diagnostic cable, SIM-card	U_low	U_low	-

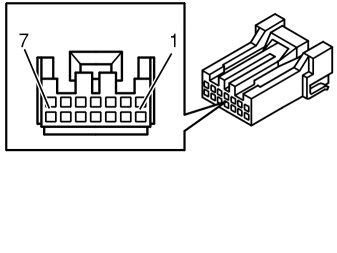

Fig 6: Identifying Signal Table, Connector Volvo On Call Switch

GLL139891

Courtesy of VOLVO CARS CORPORATION

CONNECTOR VOLVO ON CALL

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
#13	#1	auxiliary microphone	U= 5 V	U= 5 V	-
#14	#2	Signal ground, auxiliary microphone	U_low	U_low	-
#15	#3	Voltage feed, lighting SOS-switch	U= 7 V	U= 7 V	-
#16	#4	Voltage feed, lighting ON CALL-switch	U= 7 V	U= 7 V	-
#17	#5	Diagnostic signal for switch ON CALL and SOS	U= 2-5 V	U= 2-5 V	-
#18	#6	Input signal from switch ON CALL and SOS	U= 2-5 V	U= 2-5 V	-
#19	#7	Signal ground, switch ON CALL and SOS	U_low	U_low	-

Fig 7: Identifying 5-Pin Connector

GLL104031

Courtesy of VOLVO CARS CORPORATION

SIGNAL TABLE CONNECTOR HANDSET

Breakout box terminal	Control module terminal	Signal type	Ignition on	Idle	Other
#21	#1	Handset, microphone	Alternating voltage at sound in microphone	Alternating voltage at sound in microphone	Difficult to measure
#22	#2	Handset, speaker	Alternating voltage at sound in microphone	Alternating voltage at sound in microphone	Difficult to measure
#23	#3	Handset, ground	U_low	U_low	-
#24	#4	Handset, cradle signal	U= 3.34 V when the handset is in use, U=1.9 V when the handset is not in use.	U= 3.34 V when the handset is in use, U= 1.9 V when the handset is not in use.	-
#25	#5	Handset, voltage feed	U_bat	U_bat	-
