Fuel System, Quick-Release Connectors

Special tools:

NOTE:

The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

There are different types of quick-release connector in the fuel system. Special tools are required for some connectors (see below).

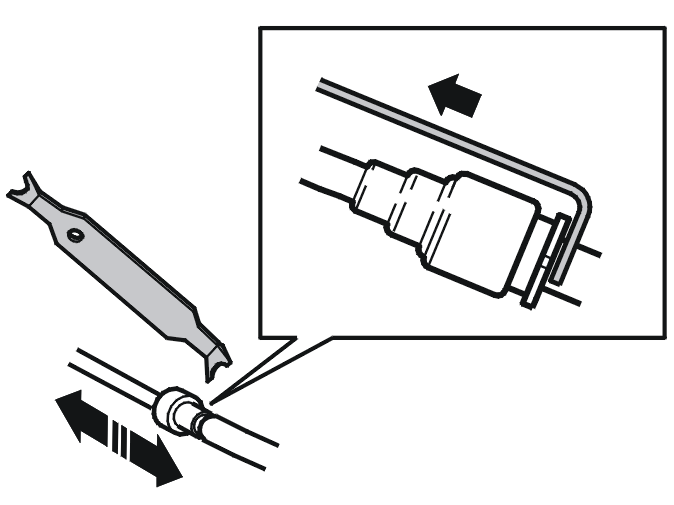

Fig 1: Identifying Catch And Special Tool 9995666

If the catch appears as illustrated, special tool 9995666 must be used to press in the catch.

Fig 2: Identifying Catch And Special Tool 9512666

If the connector has an internal catch, special tool 9512666 must be used.
