RAPGARD-F Paintwork Protection: Notes

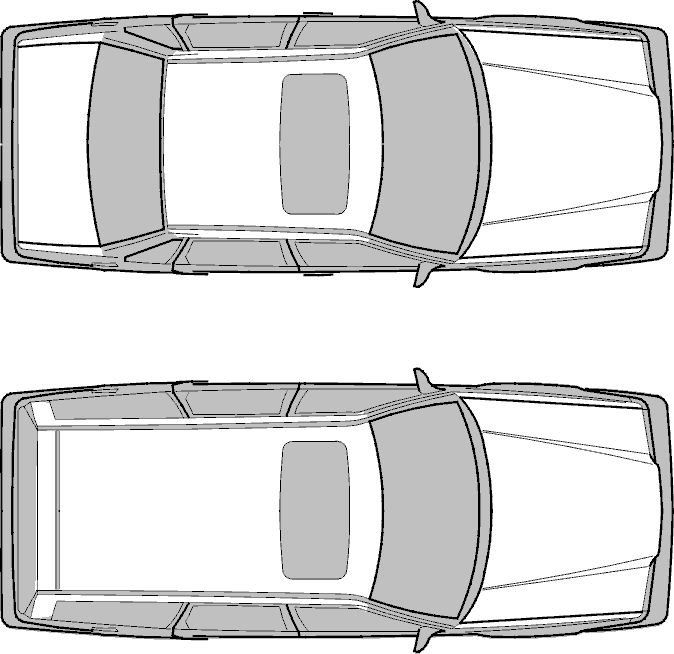

Fig 1: Hood, Roof And Trunk Protected By RAPGARD
GLL126793Courtesy of VOLVO CARS CORPORATION

During storage and transport the paintwork on the engine hood, roof and trunk lid of cars is protected by RAPGARD-F, a white plastic film with synthetic rubber adhesive, which is applied to the car in the factory.

RAPGARD-F must be left on the car until approximately 48 hours  prior to delivery to the customer.

The maximum storage time for RAPGARD-F is 6 months from the date of manufacture.

The date of manufacture can be obtained by the dealer using the chassis number register.

If the plastic film becomes detached at any point, the loose section must be removed as soon as possible.

The white areas in the graphic show where RAPGARD-F is applied  .
