Removing The Integrated Relay / FUSEBOX

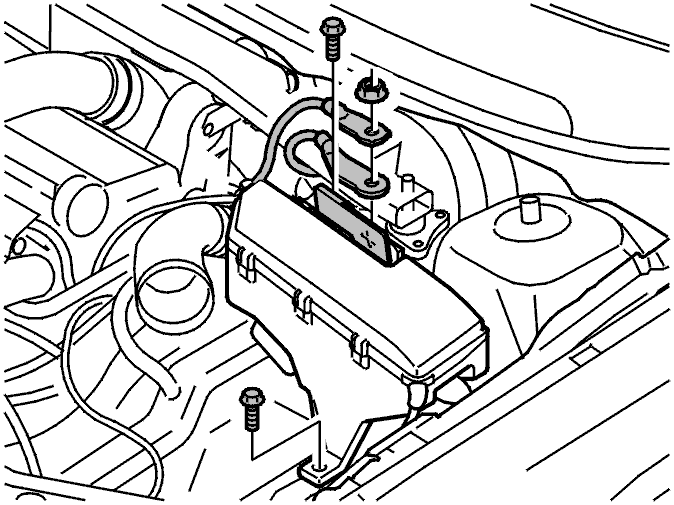

Fig 1: Identifying Battery Leads, Screws And Nut

Courtesy of VOLVO CARS CORPORATION

Remove:

• the nut for the power supply cables
• the 2 power supply cables
• the 2 screws for the mounting.

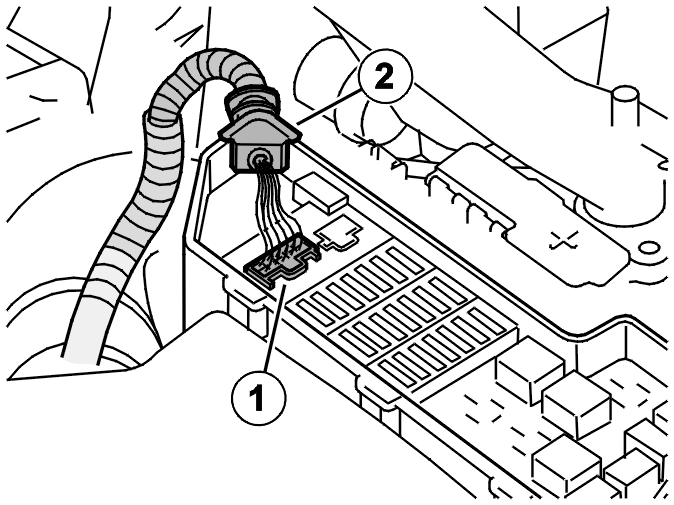

Fig 2: Locating Connector And Cable Harness From Fusebox

Courtesy of VOLVO CARS CORPORATION

Open the integrated relay/fusebox. Remove the connector (1).

Disconnect the cable harness from the box (2).

Lift the box out of the mounting and move it to one side.
