Installing Fuel Pump (FP) / Level Sensor

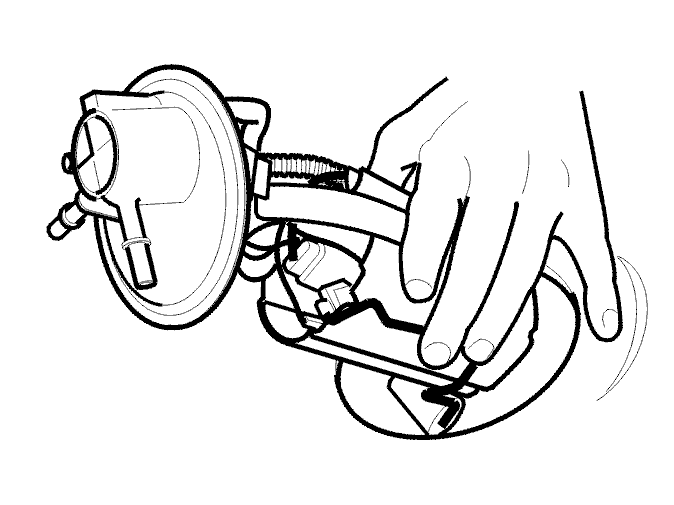

Fig 1: Gripping Right-Hand Level Sensor In Its Lowest Position

Courtesy of VOLVO CARS CORPORATION

Install the wire on the new ejector for the level sensor and pump.

Install a new O-ring, lubricated with lubricant, P/N 1161580.

Insert the hoses and wiring into the tank via the right-hand tank hole.

Grip the right-hand level sensor and pump holder and pinch it so that the float is held in its lowest position.

Carefully and slowly lower the holder. Carefully work the holder into place.

Pull the wire so that the hoses and wiring end up on the left side of the tank.
