Level Sensor Right-Hand Continued

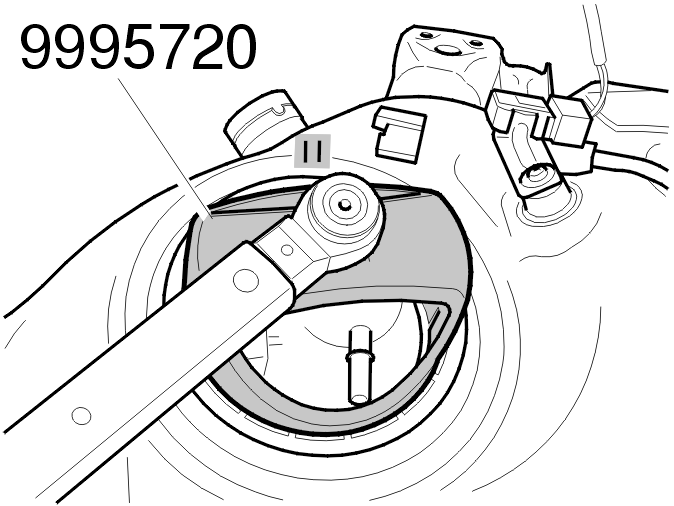

Fig 1: Installing Fuel Level Sensor Using Special Tool 999 5720

Courtesy of VOLVO CARS CORPORATION

Press the right-hand level sensor down so that the fuel line connections are pointing forwards and to the right.

Check that the O-ring is not trapped.

Tighten the screw to 60 Nm (Use special tool see 9995720 ).

Install the hoses and connectors on the level sensor.

Wipe up any fuel spillage

Fig 2: Checking Arrow On Cover

Courtesy of VOLVO CARS CORPORATION

NOTE:

Check that the arrow on the cover is between the markings on the tank. If the arrow is outside the markings the fuel gauge sensor will give an incorrect value and the float may catch against the inner wall of the tank. If not: Slacken off the screw and adjust the position of the sensor. Tighten as above.

Install the level sensor left-hand fuel tank, see: LEVEL SENSOR FUEL TANK LEFT, REPLACING .
