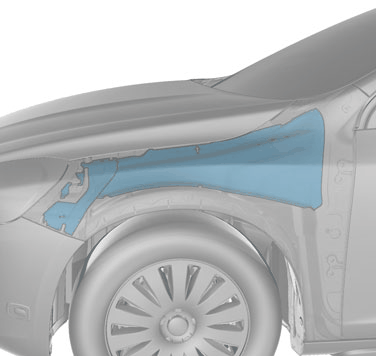

Front Fender, Repair: Repair

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Use: Isopropanol, 1161721

NOTE:

For large dents, follow instruction for Dent Lifter Tool.

Perform puller for dents, refer to: DENT LIFTER TOOL

Courtesy of VOLVO CARS CORPORATION

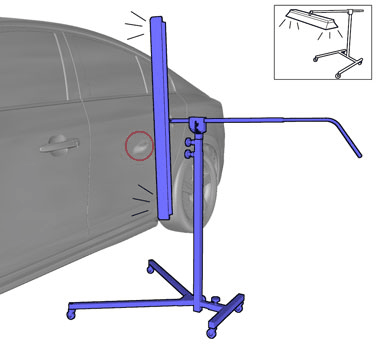

Perform work lighting, refer to: WORK LIGHTING

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Observe caution when carrying out this step.

NOTE:

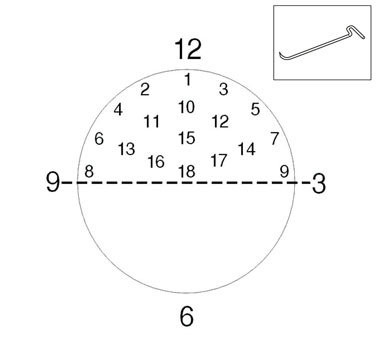

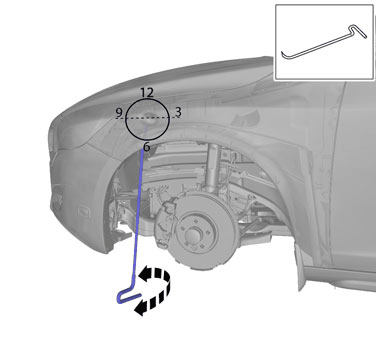

Use the clock method when repairing panel damage.

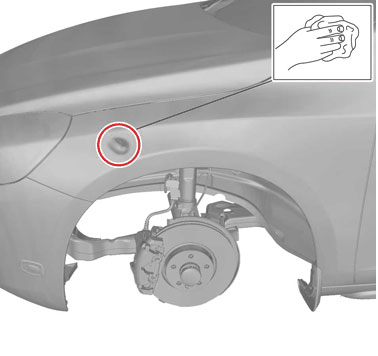

Courtesy of VOLVO CARS CORPORATION

NOTE:

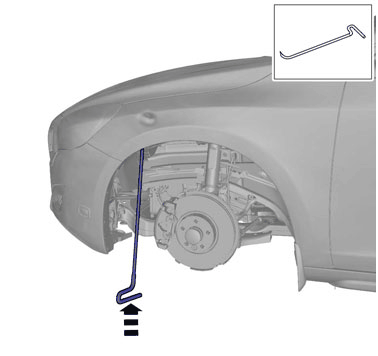

Choose a tool according to how accessible the damage is.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use the clock method when repairing panel damage.

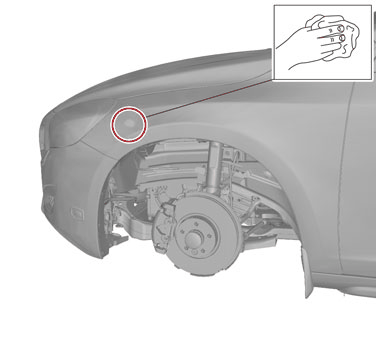

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

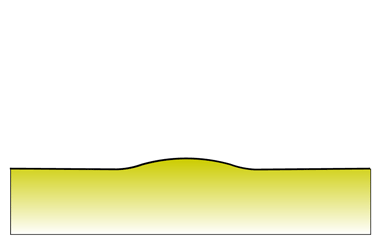

NOTE:

Always start at the highest point on the panel surface.

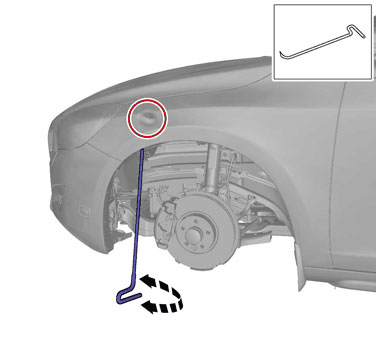

Courtesy of VOLVO CARS CORPORATION

NOTE:

Always start at the highest point on the panel surface.

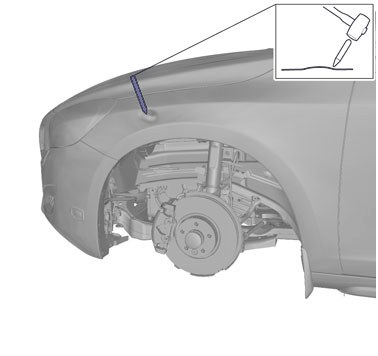

NOTE:

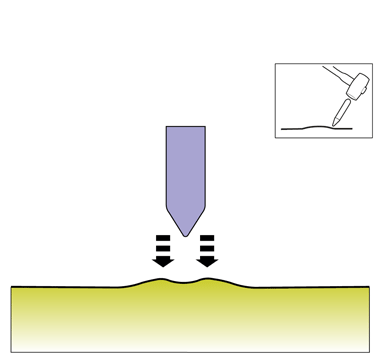

Hit the panel surface lightly several times rather than hitting it hard once.

NOTE:

If the result is not satisfactory, tap the panel damage down and start again.

Courtesy of VOLVO CARS CORPORATION

Use: Isopropanol, 1161721

If necessary

Perform paint, sanding procedure, refer to: PAINT, SANDING PROCEDURE

Perform paint, polishing procedure, refer to: PAINT, POLISHING PROCEDURE
