Phone Module (PHM): Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove glove compartment, refer to: GLOVE COMPARTMENT

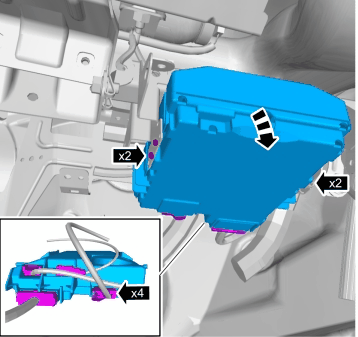

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.

NOTE:

Make sure that the optical connectors are clean and free of foreign material.

Torque: Bracket for phone module, 1.4Nm
