Design And Function: Attachment

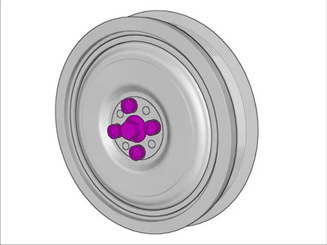

GLL1029689Courtesy of VOLVO CARS CORPORATION

The vibration damper is attached to the crankshaft by a center screw (m12) as well as four M8 screws.
