Aerials, Integrated Audio Module (IAM)
ANTENNAS (IAM)
S60
V60
XC60 (2011- late version)
V70, XC70, S80
Integrated Audio Module (IAM) is connected to an antenna system for AM and FM. The antenna system consists of an AM-antenna and two FM-antennas (FM1, FM2).

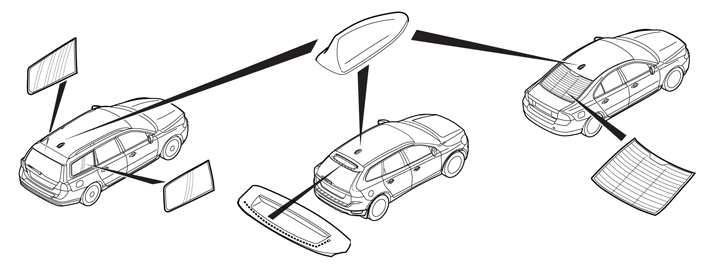

The antennas are located in the rear window. For XC60 (2011-) the AM and FM1 antennas are located in the tailgate's spoiler, the FM2 antenna is located in the right rear window.
AM and FM1 antennas are connected to an AM/FM antenna booster and the FM2 antenna is connected to an FM2 antenna booster. The antenna signals are sent from the antenna boosters to Integrated Audio Module (IAM) via two coaxial cables.
The antenna boosters are supplied with voltage from Integrated Audio Module (IAM).
Integrated Audio Module (IAM) with the option navigation is also connected to GPS-antenna and VICS-antenna (only Japanese market).
