Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Only for vehicles with fixed backrest.

Remove the front seat, refer to: FRONT SEAT .

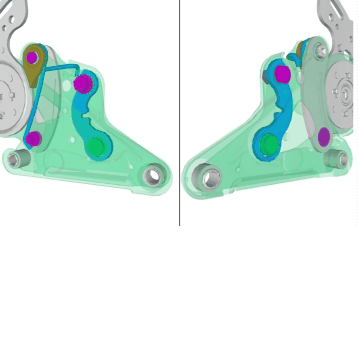

GLL157296

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The operation must be carried out on both sides of the seat.

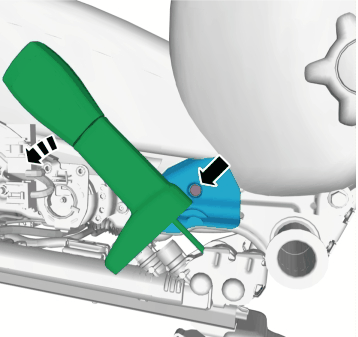

GLL157305

Courtesy of VOLVO CARS CORPORATION

NOTE:

On both sides.

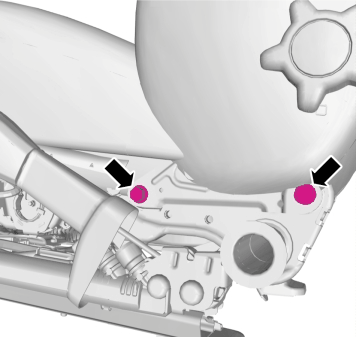

GLL157321

Courtesy of VOLVO CARS CORPORATION

NOTE:

On both sides.

Torque: Backrest cushion to seat cushion, 45Nm.

Loosen and move aside the backrest upholstery, refer to: FRONT SEAT BACKREST .

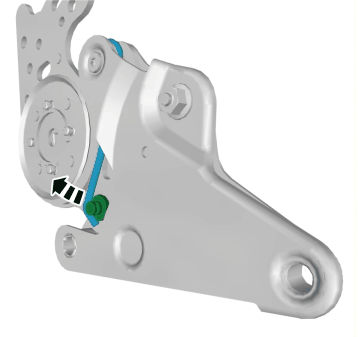

GLL157322

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling the compressed spring.

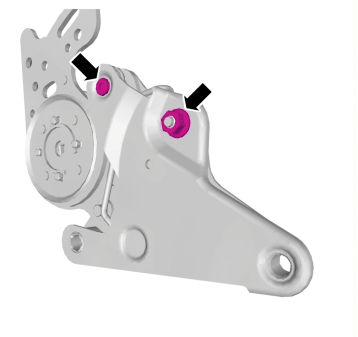

GLL157346

Courtesy of VOLVO CARS CORPORATION

Torque: Fitting bolt, hinge, 18Nm.

Torque: Hinge bracket to backrest, 9Nm.

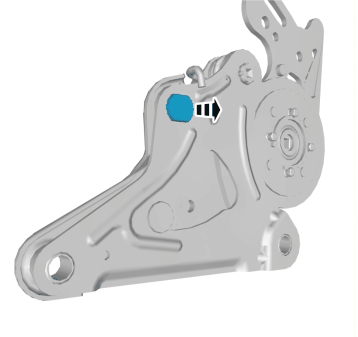

GLL157324

Courtesy of VOLVO CARS CORPORATION

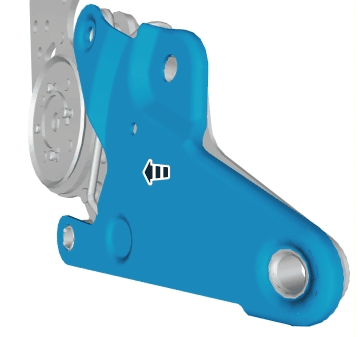

GLL157325

Courtesy of VOLVO CARS CORPORATION

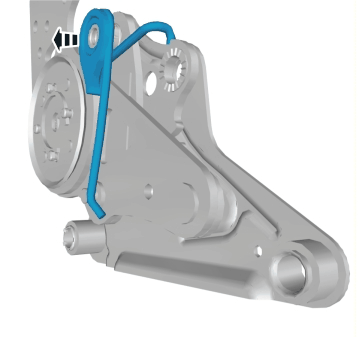

GLL157326

Courtesy of VOLVO CARS CORPORATION

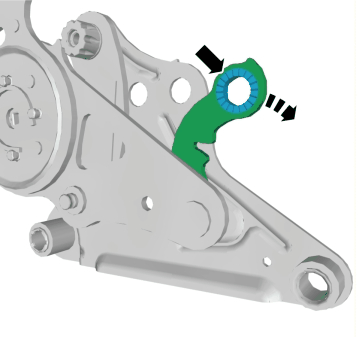

GLL157327

Courtesy of VOLVO CARS CORPORATION

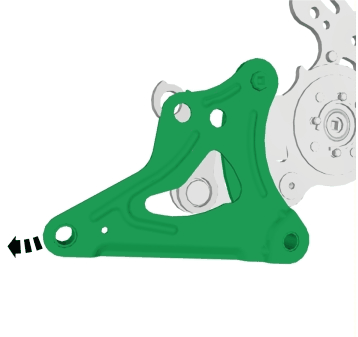

GLL157328

Courtesy of VOLVO CARS CORPORATION

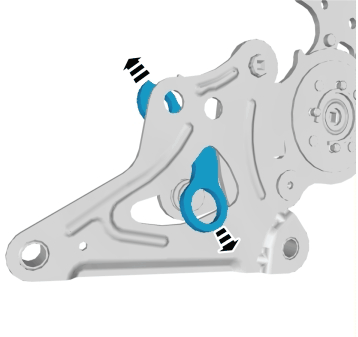

GLL157329

Courtesy of VOLVO CARS CORPORATION

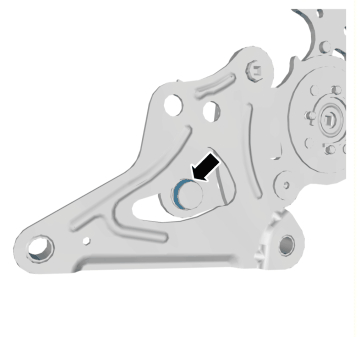

GLL157330

Courtesy of VOLVO CARS CORPORATION

TRANSFERRING COMPONENTS

Only for vehicles with folding backrest.

Remove the front seat, refer to: FRONT SEAT .

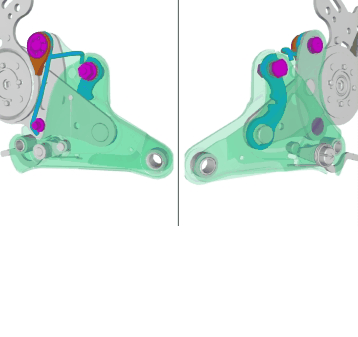

GLL157331

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The operation must be carried out on both sides of the seat.

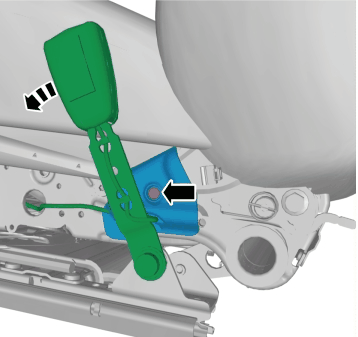

GLL157332

Courtesy of VOLVO CARS CORPORATION

NOTE:

On both sides.

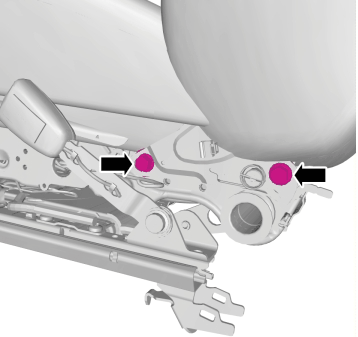

GLL157333

Courtesy of VOLVO CARS CORPORATION

NOTE:

On both sides.

Torque: Backrest cushion to seat cushion, 45Nm.

Loosen and move aside the backrest upholstery, refer to: FRONT SEAT BACKREST .

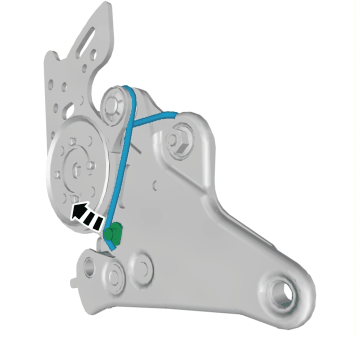

GLL157334

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling the compressed spring.

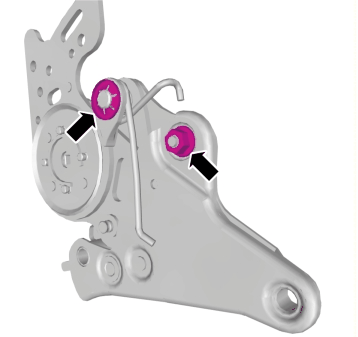

GLL157335

Courtesy of VOLVO CARS CORPORATION

Torque: Fitting bolt, hinge, 18Nm.

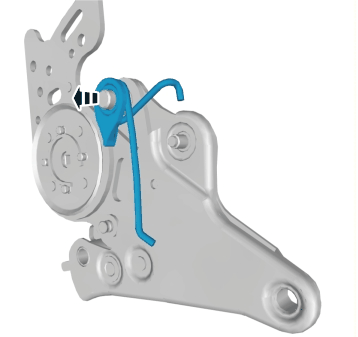

GLL157336

Courtesy of VOLVO CARS CORPORATION

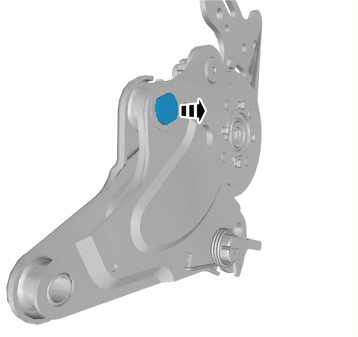

GLL157337

Courtesy of VOLVO CARS CORPORATION

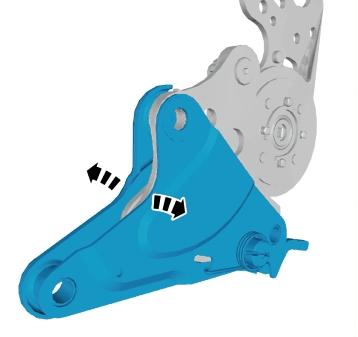

GLL157338

Courtesy of VOLVO CARS CORPORATION

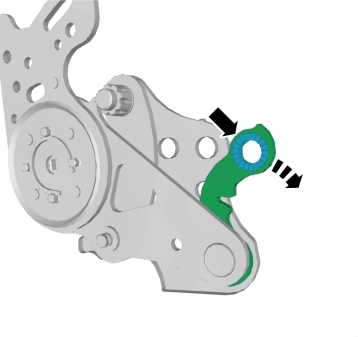

GLL157339

Courtesy of VOLVO CARS CORPORATION

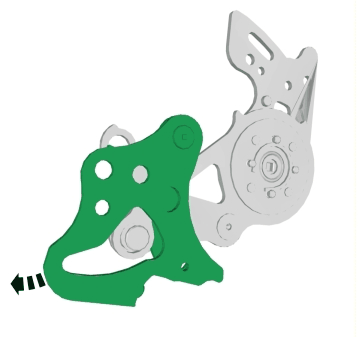

GLL157340

Courtesy of VOLVO CARS CORPORATION

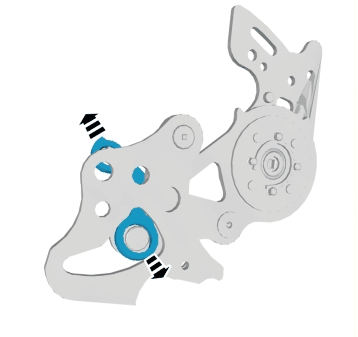

GLL157341

Courtesy of VOLVO CARS CORPORATION

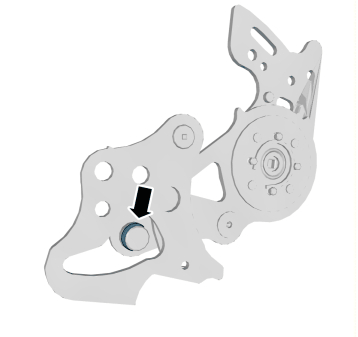

GLL157343

Courtesy of VOLVO CARS CORPORATION

INSTALLATION

To install, reverse the removal procedure
