Fuel Pump And Level Sensor Unit [2010, B6324S; B6324S2, TF-80SC]: Installation

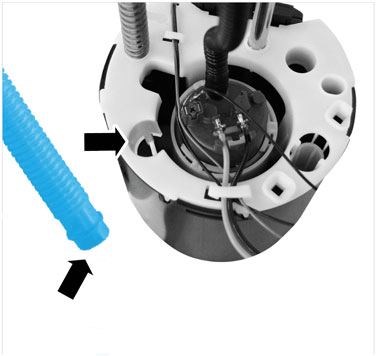

VEHICLES EARLY VERSION

Ensure that the vehicle is adapted to return hose in fuel tank, modified

Courtesy of VOLVO CARS CORPORATION

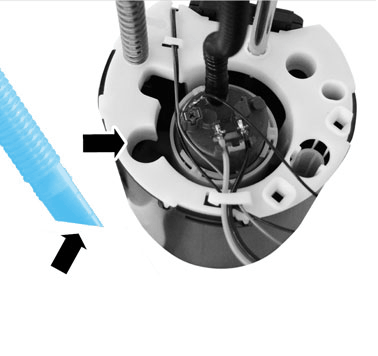

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

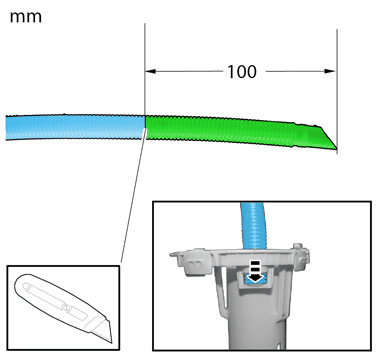

The fuel hose is modified to fit later fuel pump versions.

VEHICLES WITH FUEL FIRED BOOSTER HEATER

Courtesy of VOLVO CARS CORPORATION

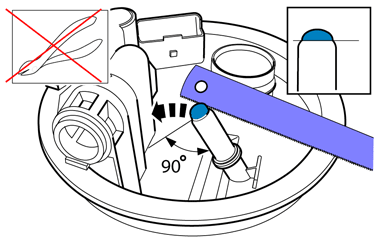

Use:  Hacksaw

Courtesy of VOLVO CARS CORPORATION

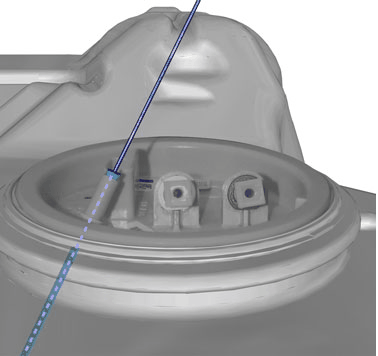

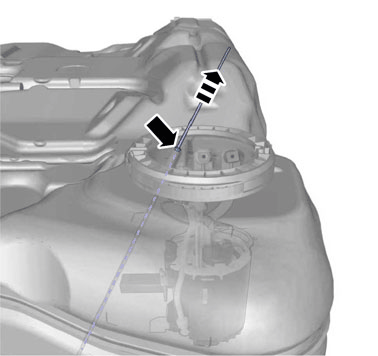

Use:  1.5 mm metal wire

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

To install, reverse the removal procedure.
