Rear Wheel Hub: Removal
NOTE:
Removal steps in this procedure may contain installation details.
WARNING:
Do not use magnets or magnetic tools close to tooth wheels, drive shafts or wheel hubs. A magnetized tooth wheel will lose its function and generate incorrect signals resulting in fault codes.
NOTE:
Any magnetized tooth wheel, drive shaft or wheel hub must be replaced with a new component.
Remove brake disc rear, refer to: REAR BRAKE DISC

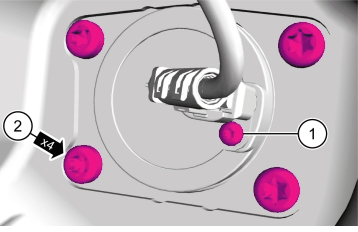

Remove the following items:
- Torque: M5, 5Nm
- Torque: Wheel bearing rear to wheel knuckle, 110Nm
