Fuel Pump Module [2017, B4204T23 | 2017, B4204T27]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Set the vehicle to Inactive mode, described in user mode, refer to: USAGE MODE
Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

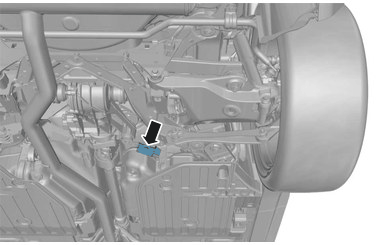

ORIENTATION VIEW
APPLIES TO THE RIGHT-HAND SIDE

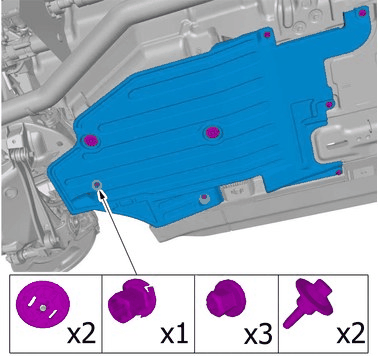

Remove the fasteners.
Remove the marked part.

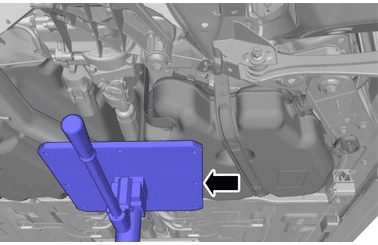

Use: Unit lift

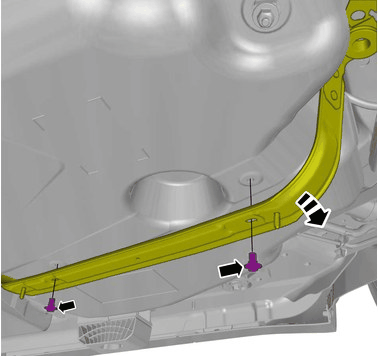

Loosen the clip.

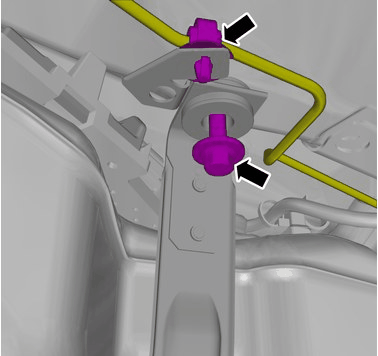

Remove the screw.
Torque: M8, 24Nm
NOTE:
Carefully bend the clips loose without damaging the clip mountings in the bottom of the tank.

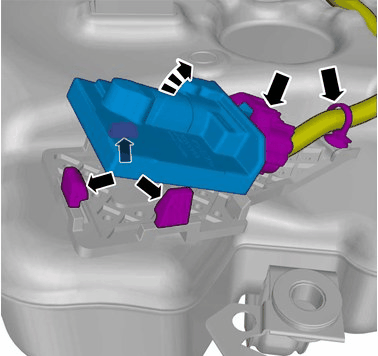

Loosen the marked detail/details.
