Dashboard, Transferring Components: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See the safety information regarding pyrotechnic systems, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS

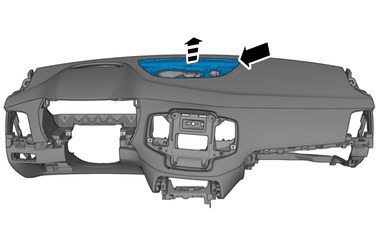

GLL1034895

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Remove the marked part.

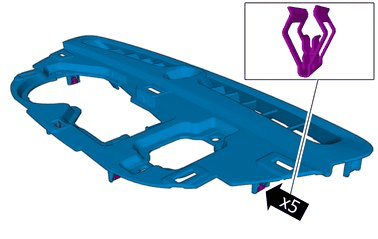

GLL1034904

Courtesy of VOLVO CARS CORPORATION

GLL1018479

Courtesy of VOLVO CARS CORPORATION

WARNING:

Take extra care when handling supplemental restraint system (SRS) components.

Remove the screws.

Torque: Airbag, to Dash board, 9Nm

GLL1034728

Courtesy of VOLVO CARS CORPORATION

Remove the part carefully

Remove the marked part.

GLL1012711

Courtesy of VOLVO CARS CORPORATION

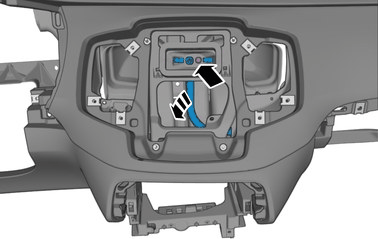

GLL1014186

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the routing of the lines and hoses.

Remove the screw.

Remove the marked part.

GLL1031426

Courtesy of VOLVO CARS CORPORATION

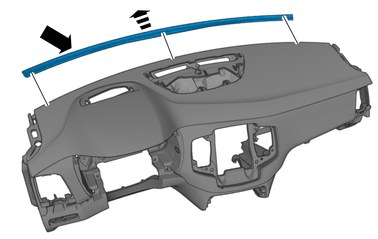

GLL1008889

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the seal is correctly located.

Remove the marked part.

GLL1028590

Courtesy of VOLVO CARS CORPORATION
